2-7

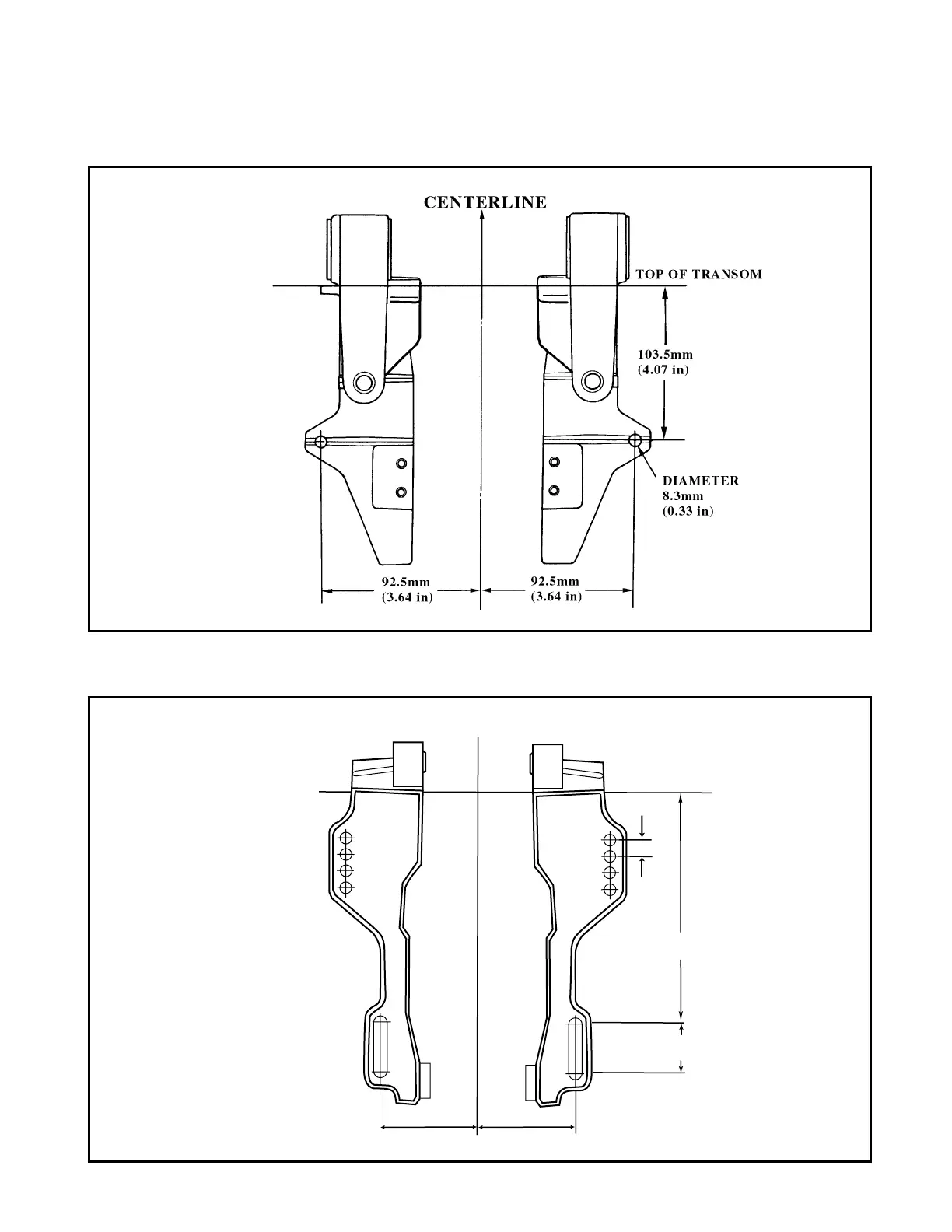

Outboard Rigging Guide - 2001 Transom Mounting Patterns
F15
F25
CENTERLINE
TOP OF
TRANSOM
18.5mm
(.46 in)
254mm
(10 in)
55.5mm
(2.2 in)
125.9mm
(4.54 in)
125.9mm
(4.54 in)
