Yamaha 85AED - Page 116

3-28
REMOTE SWITCH TYPES AND APPLICATIONS

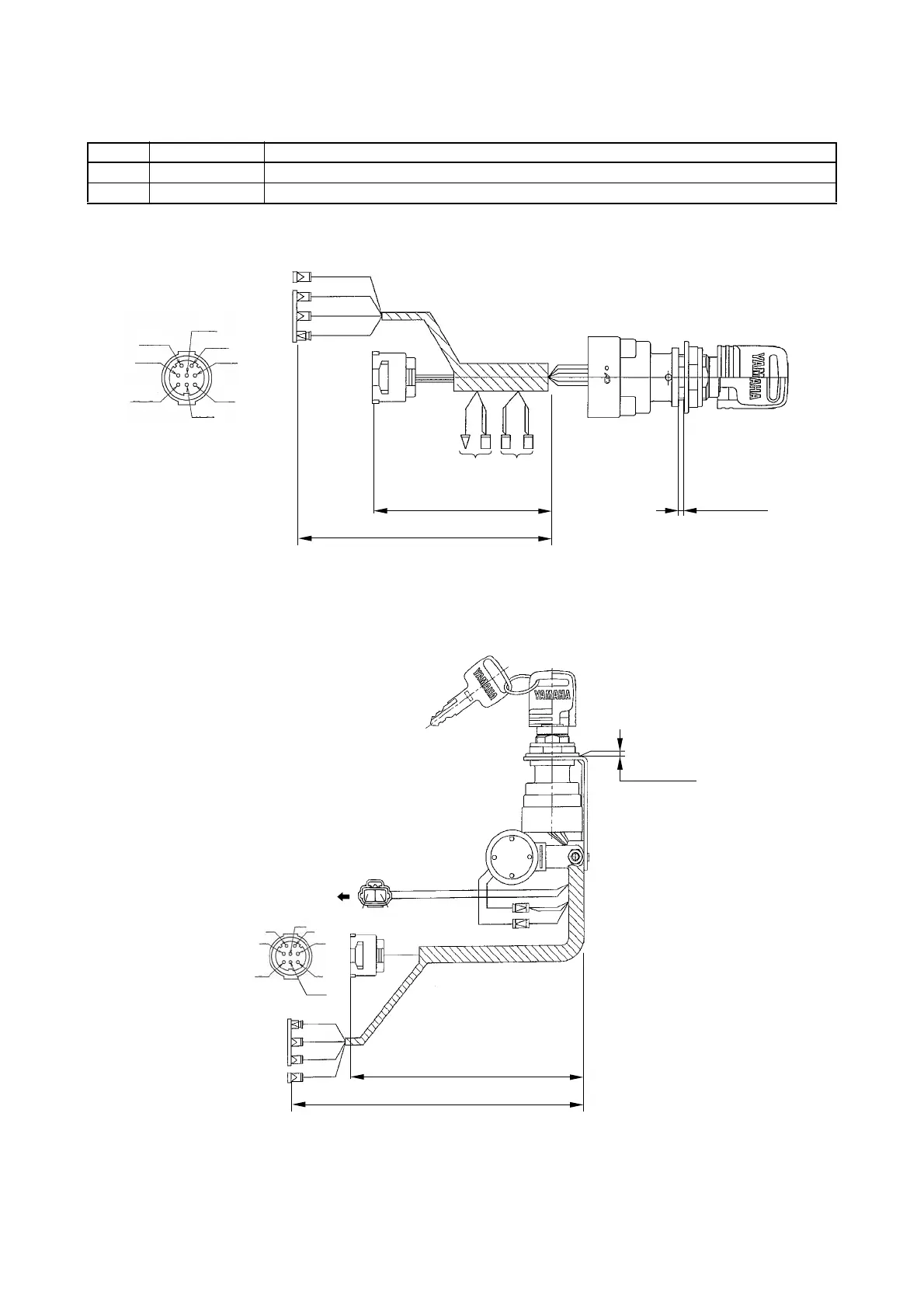

IG SWITCH W/O PANEL
Ref. No. Part No. Description
1 704-82510-07 w/bullet connectors for stop switch
2 6X3-8257B-01 w/2-pin coupler for stop switch, For 6X3 and 6X7 RC
Y
P
B
W
L
Br
G
R
380 (15)
175 (6.89)
R
Y
G
B
P Y B W
To
stop SW
To
buzzer
355 (14)
140 (5.51)
B
G
Y
R
P
B
Br
G
R
Y
W
L
B
W
To stop SW
Max. 4 (0.16)
Max. 4 (0.16)
1
2
mm (in.)
mm (in.)
