1-40
OUTBOARD MOTOR DIMENSIONS

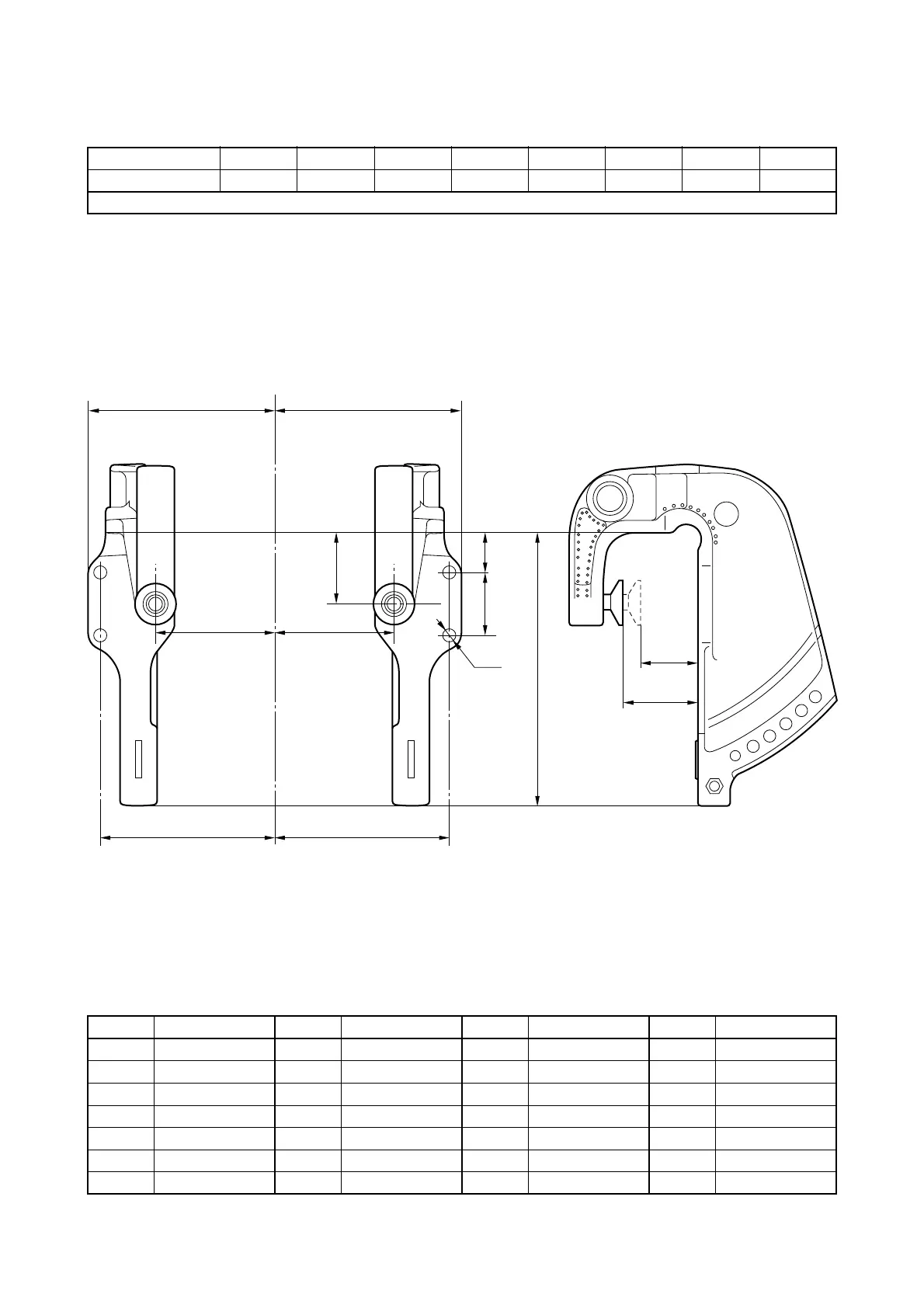

CLAMP BRACKET DIMENSIONS
Global model E/40X F25D
US/CA model F25A
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 37 (1.5) D1 10.5 (0.41)
B2 — B9 50 (2.0) C2 68 (2.7) D2 —
B3 140 (5.5) B10 — C3 — D3 —
B4 32 (1.3) B11 95.5 (3.8) D4 —
B5 150 (5.9) B12 57 (2.2)
B6 218 (8.6)
B7 —
C2
C1
B6
B9
B3
B1
1
B5
C/L
B4
B12
D1
B3
B1
1
B5
