1-41
OUTBOARD MOTOR DIMENSIONS

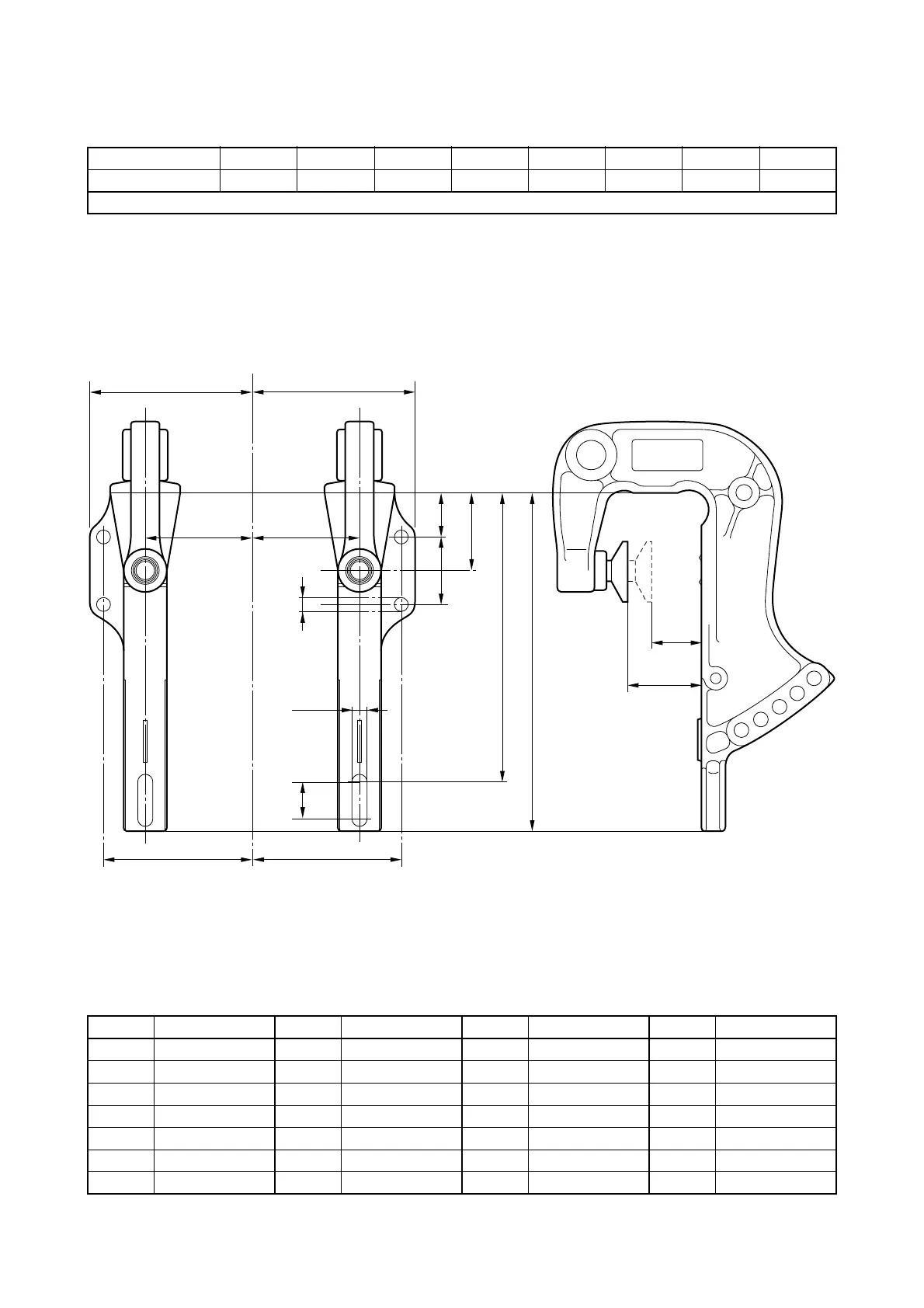

CLAMP BRACKET DIMENSIONS
Global model E40G E40J EK40G EK40J
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 33 (1.3) D1 10.5 (0.41)
B2 212 (8.3) B9 50 (2.0) C2 60 (2.3) D2 27 (1.1)
B3 124.5 (4.9) B10 — C3 — D3 —
B4 32 (1.3) B11 93.5 (3.7) D4 —
B5 134.5 (5.3) B12 57 (2.2)
B6 249 (9.8)
B7 —
C2
C1
B3
D2
D1
B1
1
B5
C/L
B2
B6
B12
B9
B4
B3
B1
1
B5
D1
