CONTROLS AND FUNCTIONS
3 En
INTRODUCTION
English

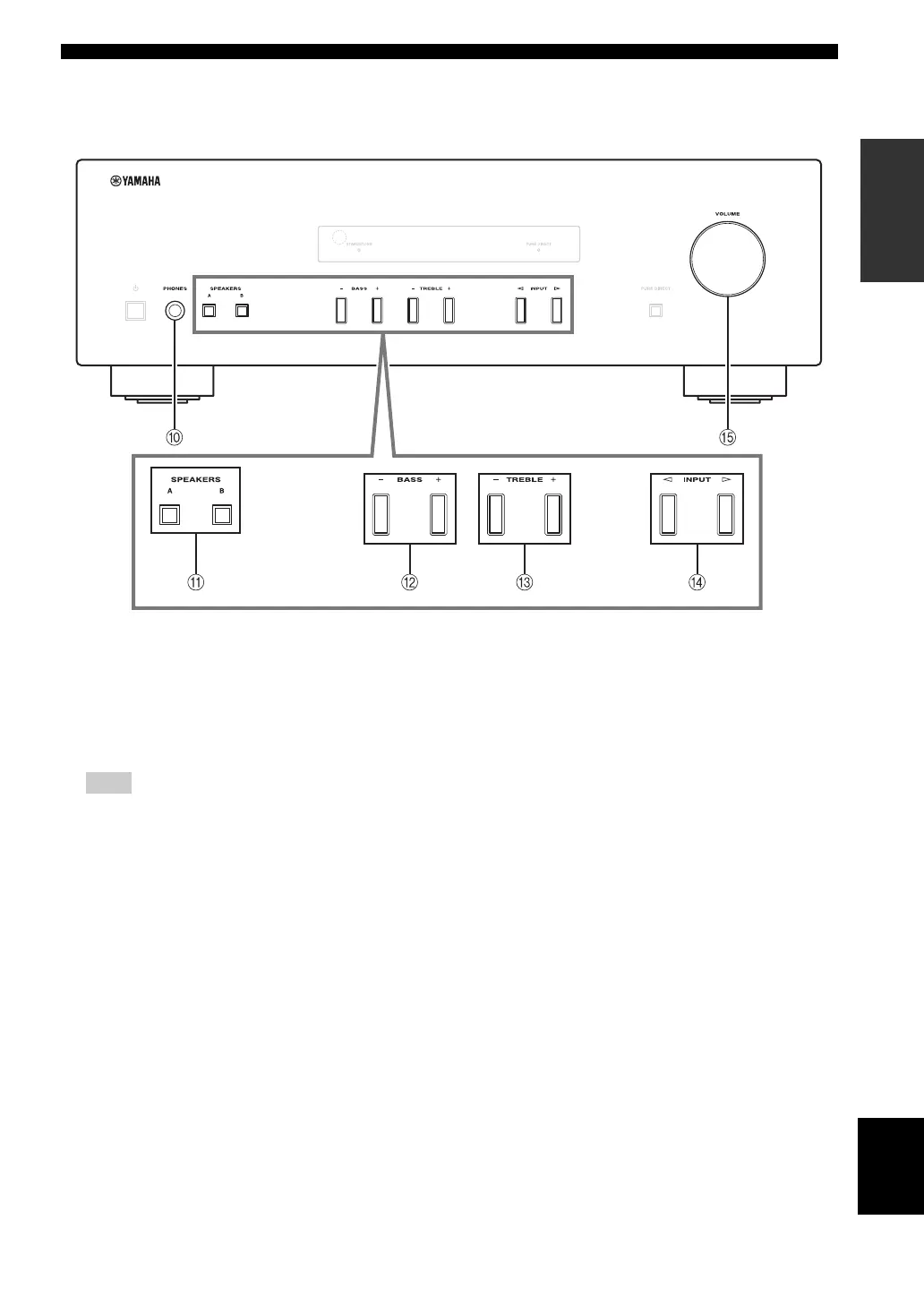

0 PHONES jack
Outputs audio to your headphones for private
listening.
Press SPEAKERS A/B so that the SP A/B indicators (see
page 2) turn off before you connect your headphones to the
PHONES jack.
A SPEAKERS A/B
Turns on or off the speaker set connected to the
SPEAKERS A and/or SPEAKERS B terminals on the
rear panel each time the corresponding button is
pressed (see page
10
).
B BASS –/+
Increases or decreases the low frequency response.
Control range: –10 dB to +10 dB
C TREBLE –/+
Increases or decreases the high frequency response.
Control range: –10 dB to +10 dB
D INPUT l / h
Selects the input source you want to listen to.
E VOLUME control
Increases or decreases the sound output level.
Note
