Yamaha CDX-E200 - Exploded View - CD Mechanism Unit

ABCDE
1
2
3
4
5
6
7
CDX-E200

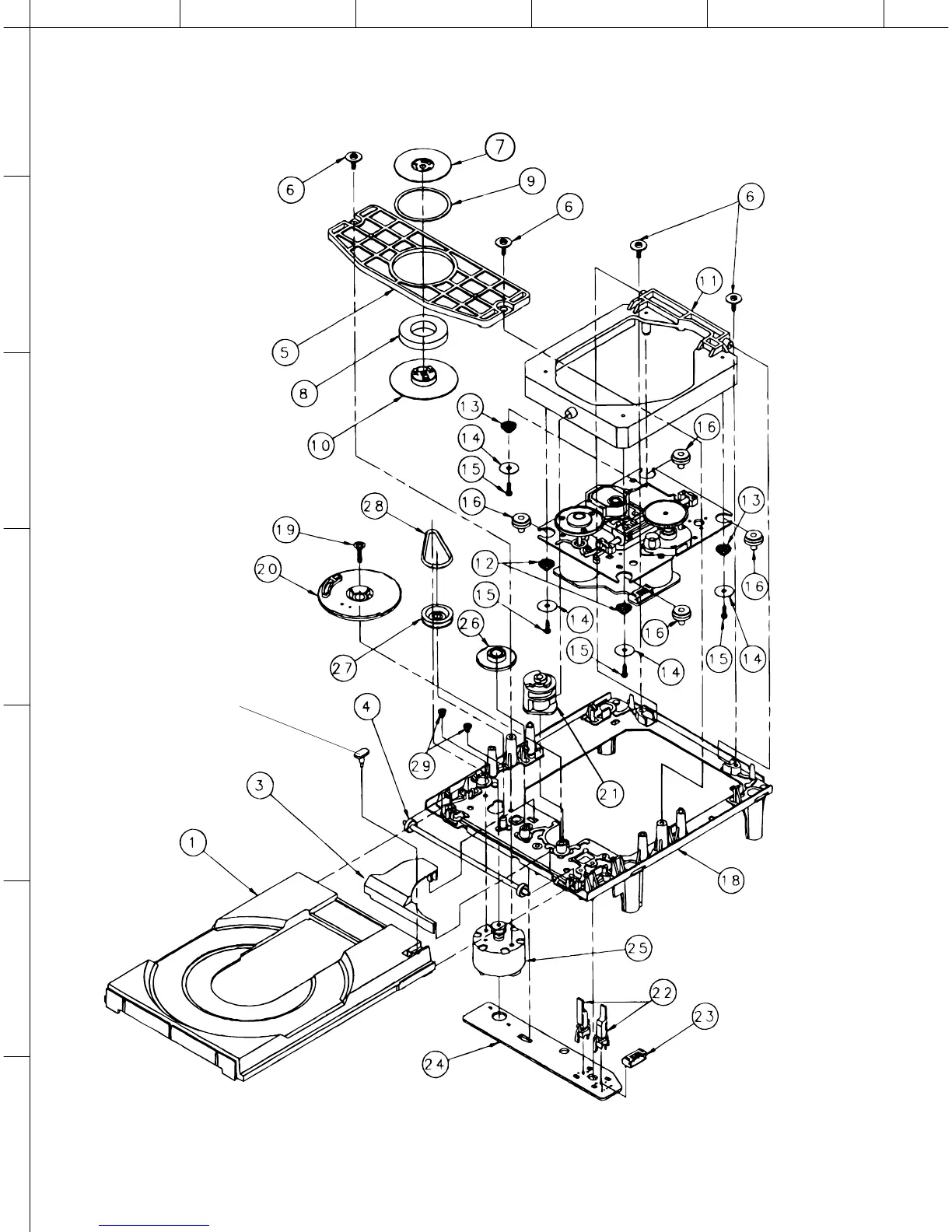

■ EXPLODED VIEW (CD Mechanism Unit)
32
* The stopper is not supplied with the tray as a spare part.
When replacing the tray, keep the removed stopper and reuse it.
Should it be lost and a new one be necessary, order service part !8 Main Chassis (S) and remove the stopper
only from it and use it as a spare part.
Stopper
