Yamaha CDX-E200 - Exploded View - Drive Unit

ABCDE
1
2
3
4
5
6
7
CDX-E200

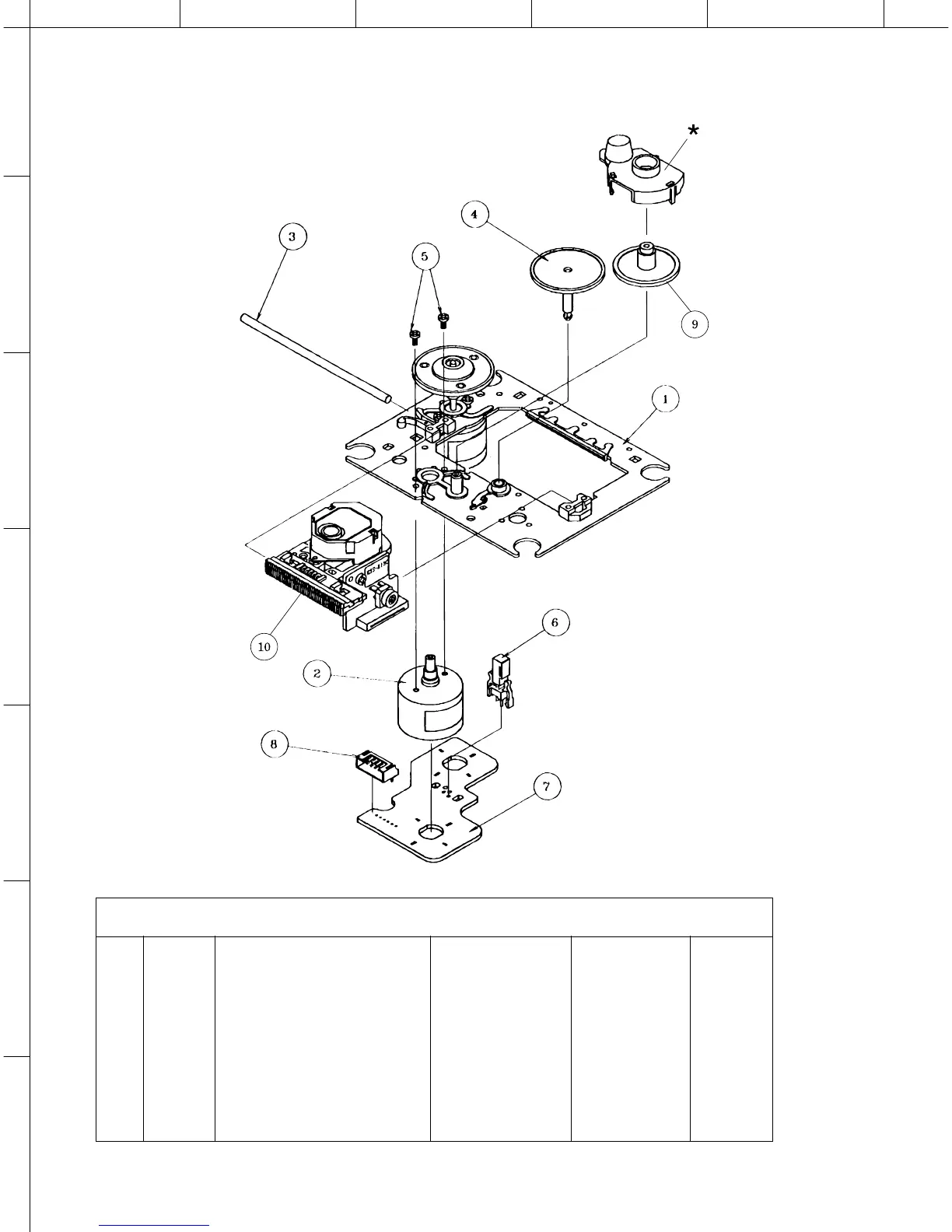

■ EXPLODED VIEW (Drive Unit)
34
Ref.
No. PART NO. Description Remarks Markets
New Parts
*
Z 1 NX635420 MOTORCHASSISASS'Y (MB) X26258771
2 CX679710 MOTORGEARASS'Y X26257691
3 AX623980 SLEDSHAFT 262690801
4 CX679720 GEAR,A (S) 262690701
5 EA020036 PANHEADSCREW 2x3ZMC2‑Y 762125515
6 KX604660 LEAFSWITCH 157208511
7 NX613040 PWB,MOTOR MOTOR6P 163967812
8 LX610120 CONNECTORPIN 6P 156472211
9 CX680030 GEAR 262700301
10 NX636020 OPTICALHEAD KSM213C
Note : The parts marked with an asterisk (
*
) are not available separately.
