SWITCHED AC OUTLET(S)
(China and General models) .............. 3 SWITCHED OUTLETS
(Europe models) ................................ 2 SWITCHED OUTLETS
(U.K. model) ..........................................1 SWITCHED OUTLET
Use these to connect the power cords from your components to
this unit.
The power to the SWITCHED outlets is controlled by this unit’s
STANDBY/ON or the provided remote control transmitter’s
POWER and STANDBY. These outlets will supply power to
any component whenever this unit is turned on.
The maximum power (total power consumption of components)
that can be connected to the SWITCHED AC OUTLET(S) is
100 watts.
GND terminal (For turntable use)
Connecting the ground wire of the turntable to the GND
terminal will normally minimize hum, but in some cases better
results may be obtained with the ground wire disconnected.

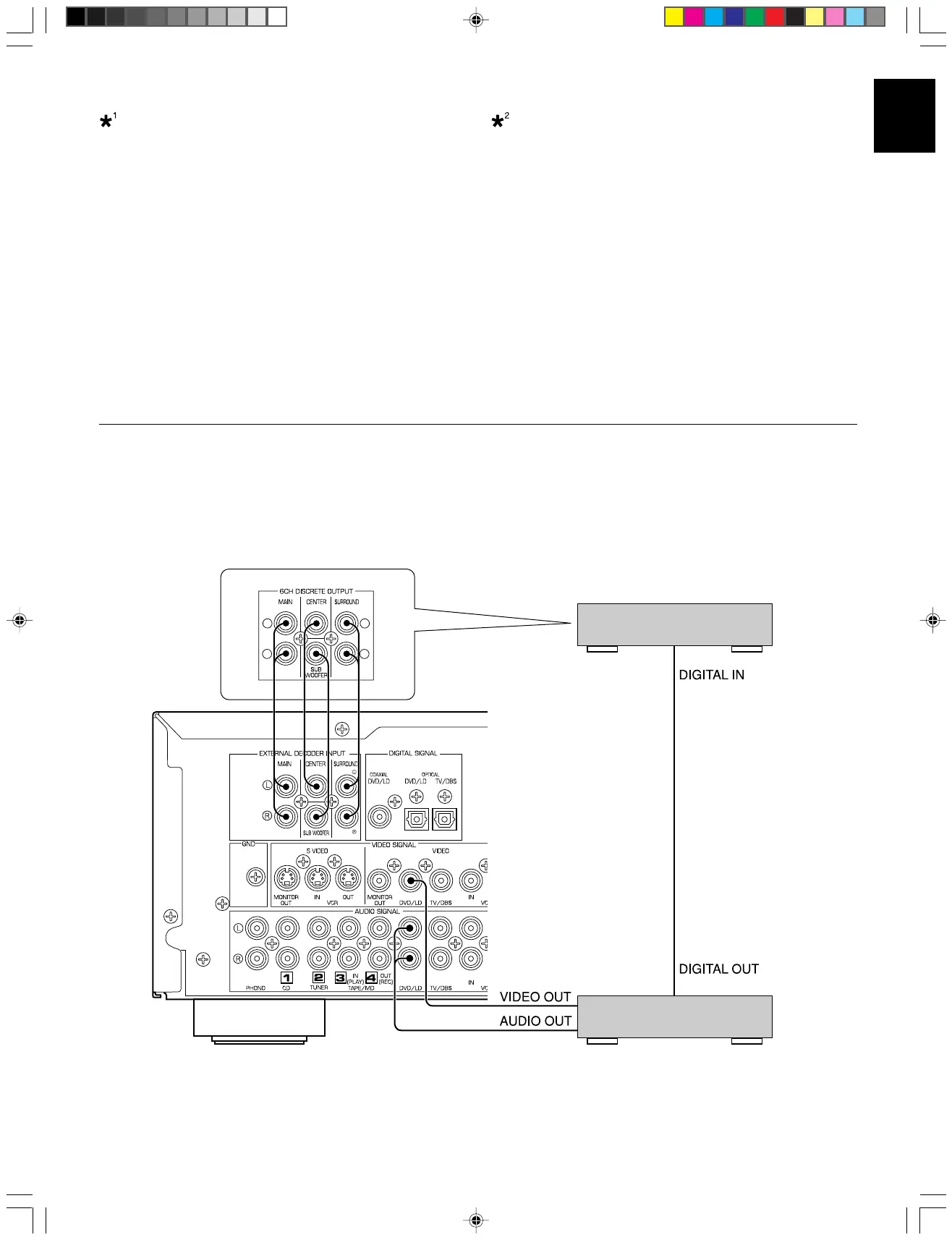

CONNECTING TO AN EXTERNAL DECODER
When using the DTS or other decoder with 6-channel discrete outputs, connect the 6CH DISCRETE OUTPUT terminals of the
decoder to the EXTERNAL DECODER INPUT terminals of this unit.
DTS or other decoder with 6-channel
discrete outputs
DVD player, LD player or other
unit with digital outputs
(Eupore model)
