Note
Use speakers with the specified impedance shown on the
rear panel of this unit.
Note on main speaker connections:
One or two speaker systems can be connected to this unit. If
you use only one speaker system, connect it to either the
SPEAKERS A or B terminals.
Note on a subwoofer connection:
You may wish to add a subwoofer to reinforce low frequencies
or to output low bass sound from the subwoofer channel.
If you have a subwoofer with built-in amplifier, including the
YAMAHA Active Servo Processing Subwoofer System, connect
the SUBWOOFER OUTPUT terminal of this unit to the input
terminal of the subwoofer system.
If you have an amplifier and a subwoofer, connect the
SUBWOOFER OUTPUT terminal of this unit to the input
terminal of the subwoofer amplifier, and then connect the
speaker terminals of the subwoofer amplifier to the subwoofer.
Note on center speaker connection:
Center speaker can be connected to this unit. Place it on or
under the TV.

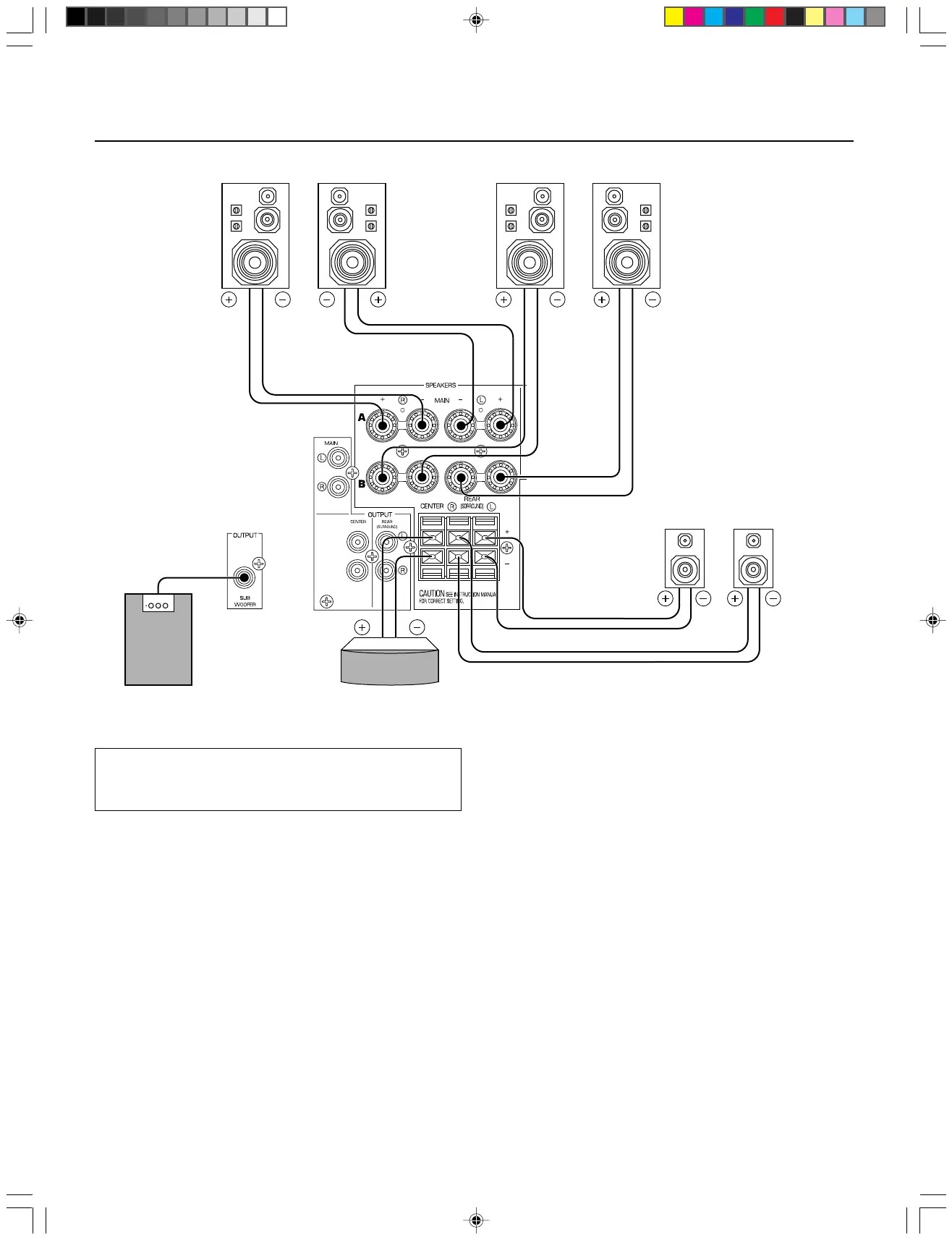

CONNECTING SPEAKERS
Rear speakers
Subwoofer system
Center speaker
Right
Left
Main speakers A Main speakers B
Right
Left
Right Left
(Eupore model)
DSP-A595-2 3/25/99, 3:53 PM16
