15
English

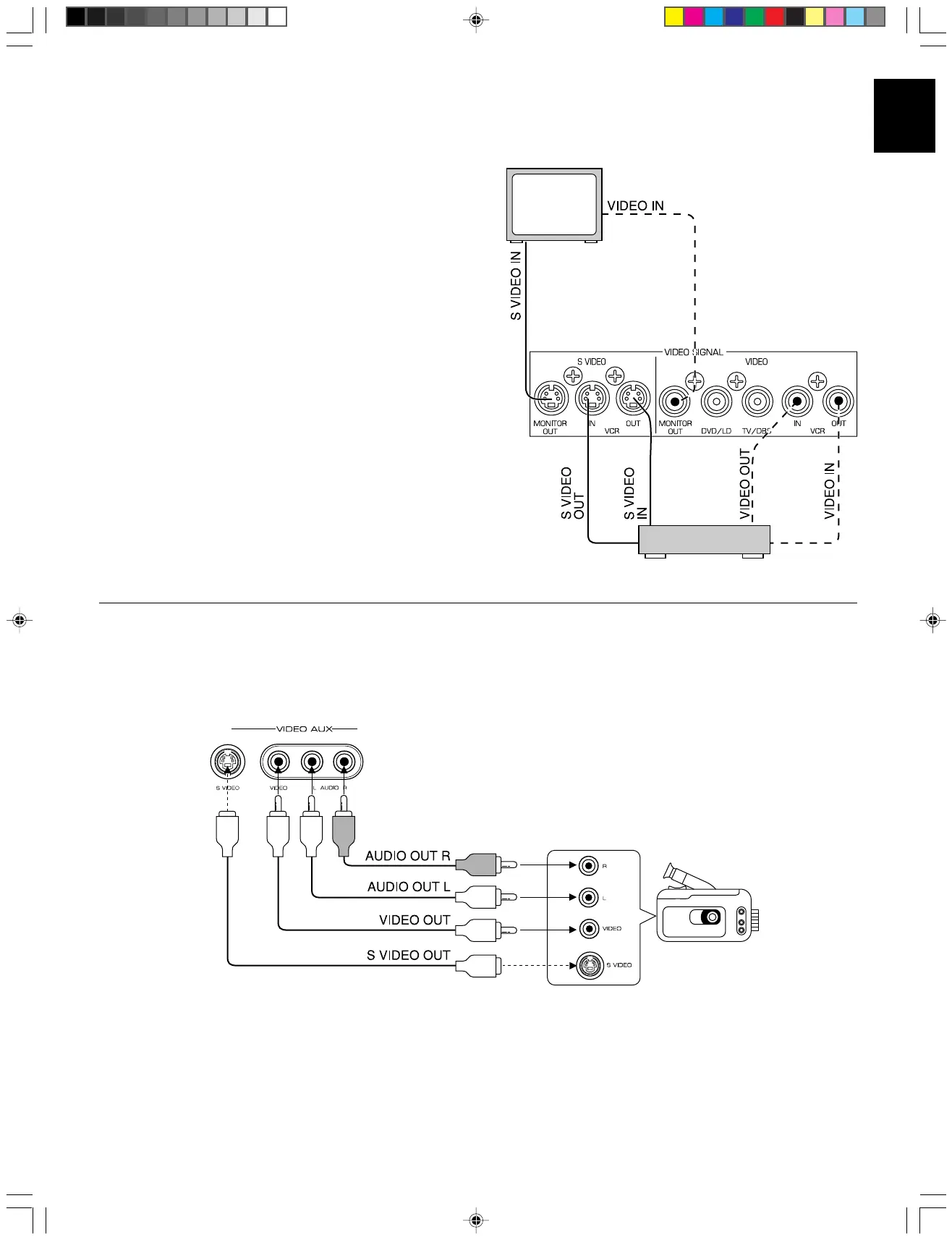

CONNECTING TO S VIDEO TERMINALS
If you have a VCR and a monitor equipped with “S” (high-
resolution) video terminals, those terminals can be connected
to this unit’s S VIDEO terminals. Connect the VCR’s “S” video
input and output terminals to this unit’s S VIDEO VCR OUT and
IN terminals respectively, and connect the monitor’s “S” video
input terminal to this unit’s S VIDEO MONITOR OUT terminal.
Otherwise, connect the VCR’s composite video terminals to this
unit’s composite VIDEO terminals, and connect the monitor’s
composite video input terminal to this unit’s composite
MONITOR OUT terminal.
Note
If video signals are sent to both S VIDEO input and com-
posite input terminals, the signals will be sent to their
respective output terminals.
Monitor TV
VCR
Camcorder
CONNECTING TO VIDEO AUX TERMINALS (ON THE FRONT PANEL)
These terminals are used to connect any video input source, such as a camcorder, to this unit.
DSP-A595-2 3/25/99, 3:53 PM15
To Next Page
