RX-V2700/DSP-AX2700
169
YAMAHA IR CODE TABLE
Code
Key No. Key Name ID 1 ID 2
ZONE 2 ZONE 3 ZONE 2 ZONE 3
1 XM (RAV25) 7A-B8 7A-B9 7D-2F 7D-30
2 POWER 7E-BA 7A-ED 7D-64 7D-74
3 TUNER 7A-D2 7A-F3 7D-66 7D-76
1 (NUMBER + TUNER) 7A-61 7D-A1
4 CD 7A-D1 7A-F2 7D-67 7D-77
2 (NUMBER + CD) 7A-62 7D-A2
5 CD-R 7A-D4 7A-F5 7D-6B 7D-7B
3 (NUMBER + CD-R) 7A-63 7D-A3
6 STANDBY 7E-BB 7A-EE 7D-63 7D-73
7 DTV 7A-D9 7A-F6 7D-6C 7D-7C
4 (NUMBER + DTV) 7A-64 7D-A4
8 CBL/SAT 7A-CC 7A-F7 7D-69 7D-79
5 (NUMBER + CBL/SAT) 7A-65 7D-A5
9 MD/TAPE 7A-D3 7A-F4 7D-6A 7D-7A
6 (NUMBER + MD/TAPE) 7A-66 7D-A6
10 NET/USB 7A-D0 7A-F1 7D-65 7D-75
ENT + NET/USB 7A-BF 7D-3F
11 VCR 1 7F-40 7F-41 7F-43 7F-44
7 (NUMBER + VCR 1) 7A-67 7D-A7
12 DVR/VCR 2 7A-D7 7A-FA 7D-6E 7D-7E
8 (NUMBER + DVR/VCR 2) 7A-68 7D-A8
13 DVD 7A-CD 7A-FC 7D-6F 7D-7F
9 (NUMBER + DVD) 7A-69 7D-A9
14 V-AUX/DOCK 7A-D8 7A-F0 7D-68 7D-78
0 (NUMBER + V-AUX/DOCK) 7A-60 7D-A0
15 PRESET (+) 7A-10 7D-F5
16 VOLUME (+) 7A-DA 7A-FD 7D-70 7D-20
17 PRESET (–) 7A-11 7D-F6
18 VOLUME (–) 7A-DB 7A-FE 7D-71 7D-21
19 A/B/C/D/E 7A-12 7D-F7
20 MUTE 7A-DC 7A-FF 7D-72 7D-22
21 A-E/CAT.
qq
qq
q
(RAV25) 7A-6E 7D-35
22 PRESET/CH
hh
hh
h
(RAV25) 7A-6A 7D-31
23 A-E/CAT.
ww
ww
w
(RAV25) 7A-6C 7D-33
24 DISPLAY (RAV25) 7A-72 7D-39
25 ALL (RAV25) 7A-B5 7D-2C
26 PRESET/CH
gg
gg
g
(RAV25) 7A-6B 7D-32
27 PRESET (RAV25) 7A-B7 7D-2E
28 CAT. (RAV25) 7A-B6 7D-2D
29 NUMBER (RAV25) –
30 ID 1/ID 2 –
31 ZONE 2/ZONE 3 –
• PANELS
RAV25
(U, C models)
X1
4.00MHz
+3V
SW2
ZONE3
D1
IR DIODE
R1
1 ohm
C1
47µF
R2
47 ohms
Q1
U1
UPD67AMC-312-5A4-E1-A
1
KI/O5
KI/O4
KI/O3
KI/O2
KI/O1
KI/O0
KI3
KI2
KI1
KI0
KI/O6
KI/O7
S0
S1/LED
REM
VDD
Xout
Xin
GND
S2
2
3
4
5
6
7
8
9
10
20
19
18
17
16
15
14
13
12
11
ZONE2
ID2
ID1
SW1
K1
K2
K6
K5
K13 K17
K8K4
K11
K14
K10
K12
K21
K16
K20
K15
K19
K28
K24
K9 K18 K23
K27
K22
K29
K7K3 K25 K26
J3
+
• KEY CODE
12
6
345
78910
11 12 13 14
15 16
17 18
19 20
21
25
22
26
23
27
29
RAV25 (U, C models)
30 31
24
28
RAV24
(R, T, K, A, B, G, E, L models)
• KEY NO. LAYOUT

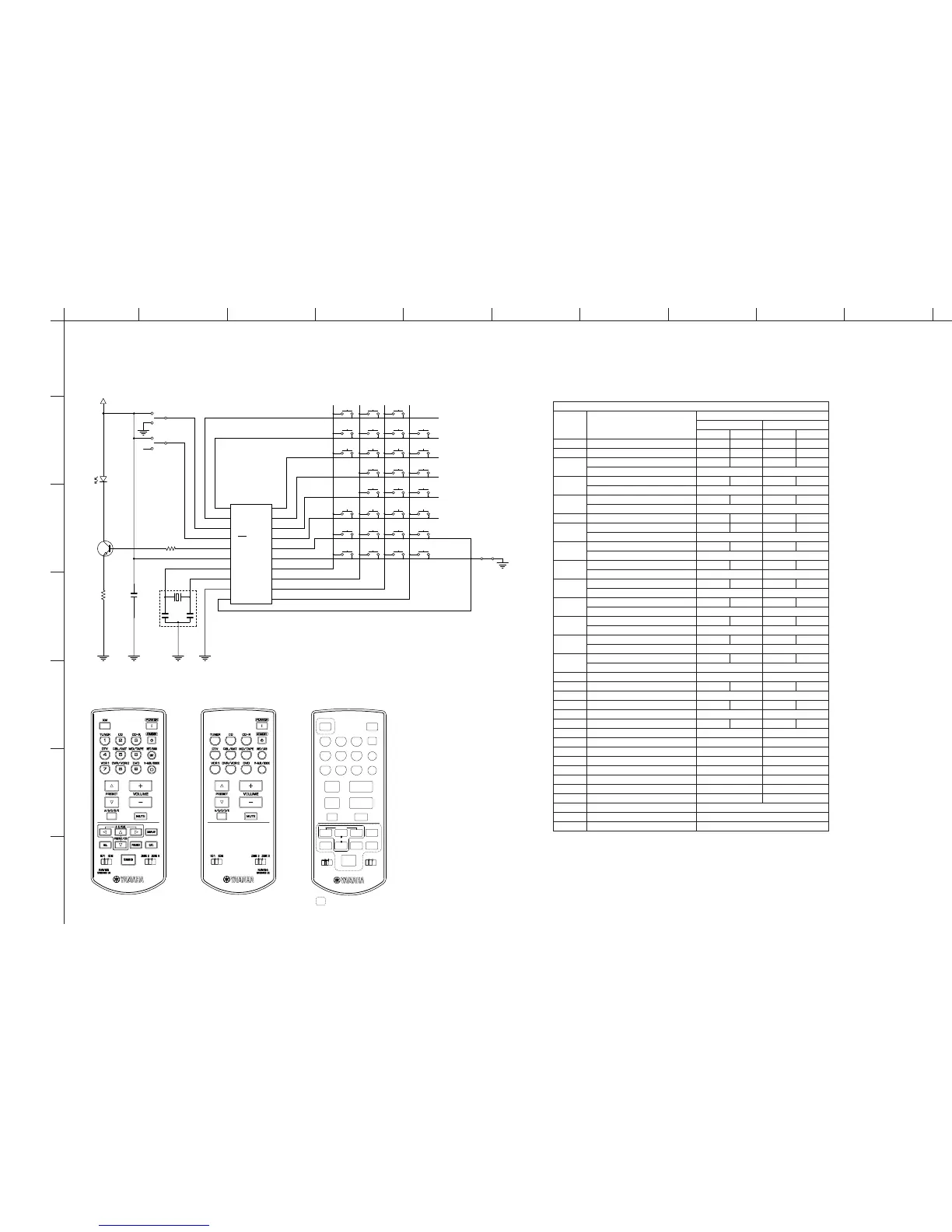

• SCHEMATIC DIAGRAM
● RAV25 (U, C models), RAV24 (R, T, K, A, B, G, E, L models)
To Next Page
