Yamaha DSP-AX361 User Manual

RX-V361/HTR-6030/DSP-AX361
15
RX-V361/HTR-6030/
DSP-AX361

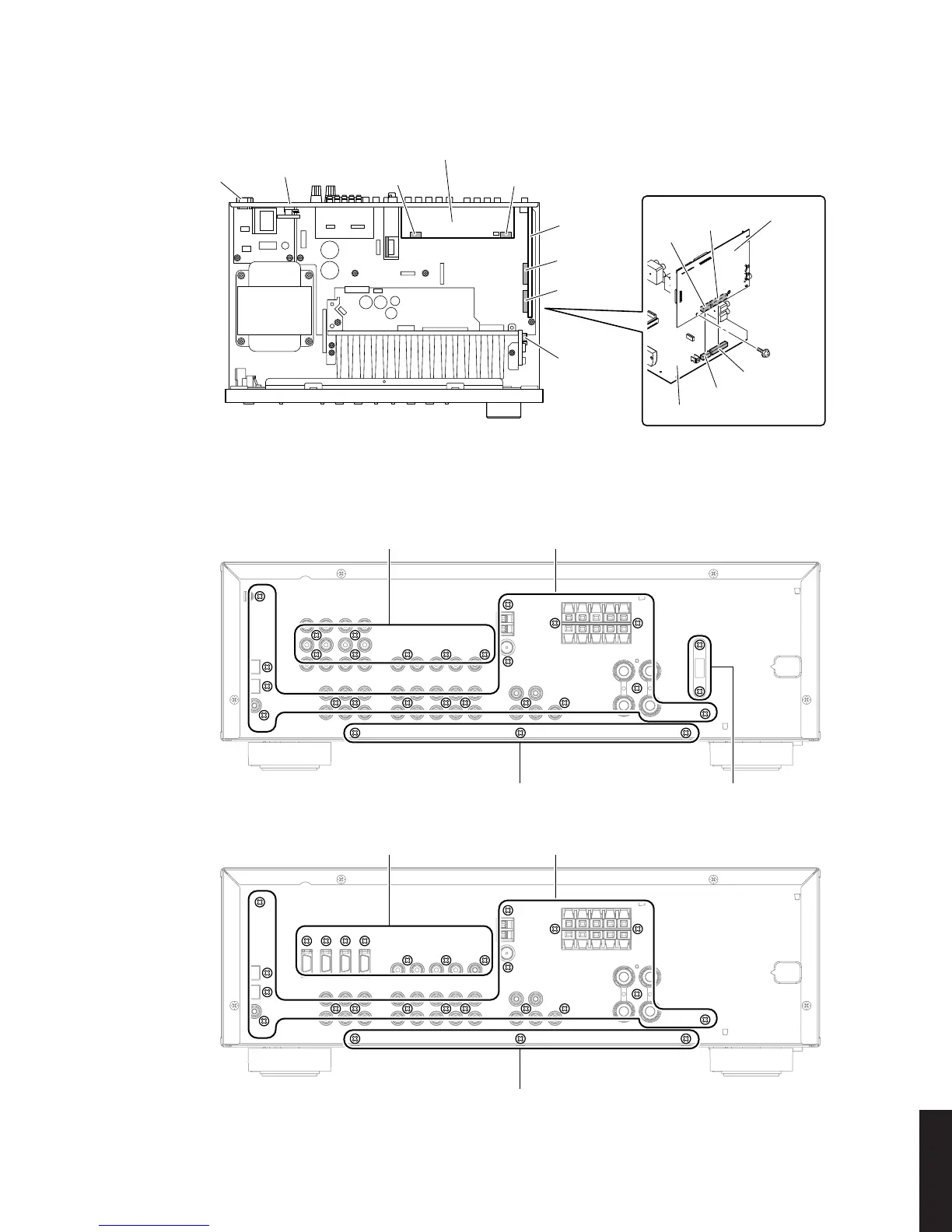

Rear panel
リア パ ネル 
Cord stopper
コードストッパー
CB193
CB516
CB512
CB181 (U, C, R, T, K, A, B, G, E, L models)
CB502
CB501
CB101
CB104
D-VIDEO P.C.B. (J model)
MAIN (1) P.C.B.
MAIN (2) P.C.B. (U, C, R, T, K, A, B, G, E, L models)
DSP P.C.B.
DSP P.C.B.
CB305 (J model)
9
5
87
U, C, R, T, K, A, B, G, E, L models
J model
(R, L models)
6
65
7
Fig. 2
Fig. 3

Yamaha DSP-AX361 Specifications

General

Type	AV Receiver
Channels	5.1
Surround Sound Formats	Dolby Digital, DTS
Weight	9.5 kg
Frequency Response	10 Hz - 100 kHz
Input Sensitivity	200 mV / 47 kΩ
Signal-to-Noise Ratio	100dB
Input Impedance	47k ohms
Video Inputs	4
Video Outputs	1
Audio Inputs	5 (Analog)
Audio Outputs	Analog: 2
Dimensions (W x H x D)	435 x 151 x 373 mm
Video Inputs/Outputs (Composite)	4/1
Audio Inputs/Outputs (Analog)	5/2
Audio Inputs/Outputs (Optical)	2/0
Audio Inputs/Outputs (Coaxial)	2/0
Power Output per Channel	100W (8 ohms, 20Hz-20kHz, 0.09% THD)
Total Harmonic Distortion (THD)	0.09%
