Yamaha DSP-AX430 User Manual

RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
16
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
B
F
1 FUNCTION (9) P.C.B.
2 FUNCTION (7) P.C.B.
3 FUNCTION (8) P.C.B. (R, T models only)
4 MAIN (6) P.C.B.
5 MAIN (8) P.C.B.
6 MAIN (7) P.C.B.
7 MAIN (2) P.C.B.
8 VIDEO (2) P.C.B.
9 FUNCTION (3) P.C.B.
0 VIDEO (1) P.C.B.
A FUNCTION (2) P.C.B.
B FUNCTION (10) P.C.B.
C FUNCTION (4) P.C.B.
D FUNCTION (1) P.C.B.
E DSP P.C.B.
F MAIN (3) P.C.B.
G MAIN (1) P.C.B.
H MAIN (4) P.C.B.
I FUNCTION (5) P.C.B.
J FUNCTION (6) P.C.B.
K MAIN (5) P.C.B.
L OPERATION (3) P.C.B.
M OPERATION (2) P.C.B.
N OPERATION (1) P.C.B.
KLJIHG
NM
C
D
E
A098654
7321

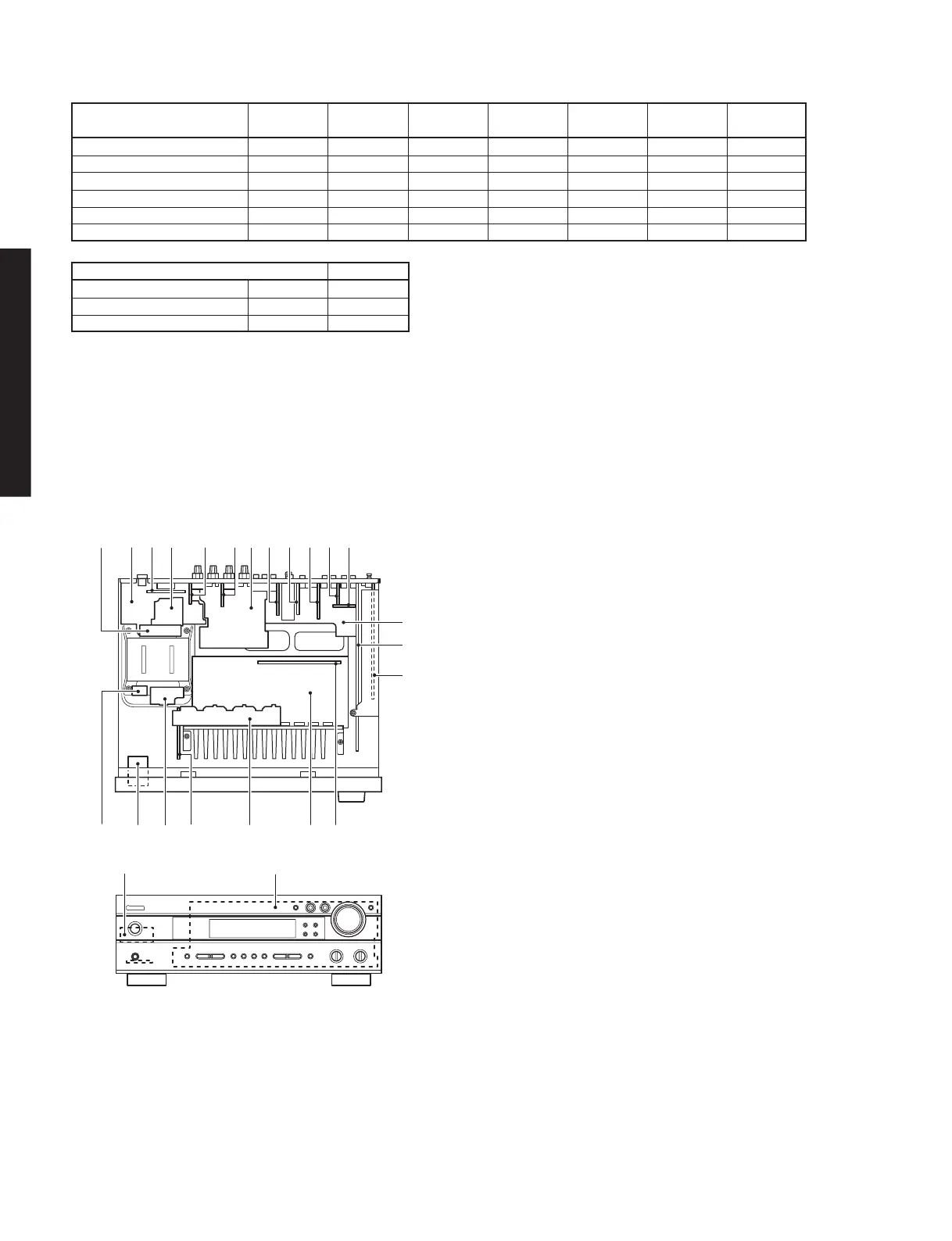

■ INTERNAL VIEW
• The variable range of the parameter (Min/Max/Step)/パラメーターの可変範囲（最小/最大/ステップ）
Parameter name Pro Logic Pro Logic II Pro Logic II 2ch DD/dts/AAC 6.1/ES Unit
Movie Music
(P.) INIT. DLY - - - 1/99/1 1/99/1 1/99/1 ms
S. DELAY - - - - 0/15/1 0/15/1 ms
S. INIT. DLY 10/25/1 10/25/1 0/15/1 0/49/1 0/49/1 0/49/1 ms
Panorama - OFF OFF/ON - - - -
Dimension - 0 (STD) -3/+3/1 - - - -
C. Width - 0 0/7/1 - - - -
5ch Stereo Parameter Unit
CT. LEVEL 0/100/1 %
RL. LEVEL 0/100/1 %
RR. LEVEL 0/100/1 %
