RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
22

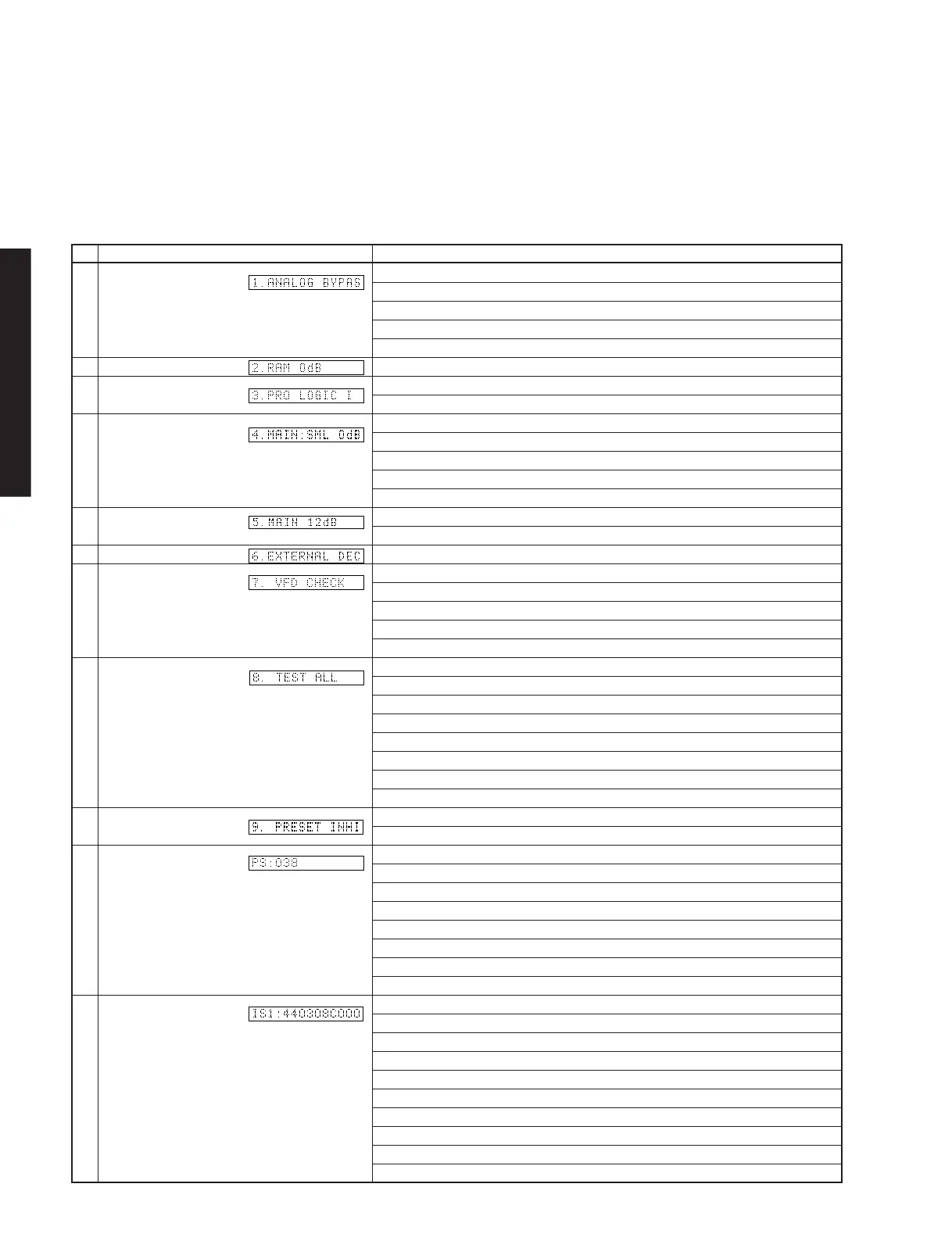

■ SELF DIAGNOSIS FUNCTION (DIAG)／自己診断機能（ダイアグ）
No DIAG menu sub-menu
1 DSP THROUGH 1. ANALOG BYPASS
2. YSS 0dB
3. YSS Front 0dB
4. YSS FULL BIT
5. YSS FULL BIT F
2 RAM THROUGH RAM 0dB
3 PRO LOGIC 1. PRO LOGIC I
2. PRO LOGIC II
4 SPEAKER SET 1. MAIN: SMALL 0dB
2. CENTER: NONE
3. LFE/BASS: MAIN
4. Front Mix: 5ch
5. REAR CENTER (Not used in this model.)
5 MARGIN CHECK 1. MAIN 12 dB MARGIN
2. MAIN 18 dB MARGIN
6 OTHER INPUT EXTERNAL DECODER
7 DISPLAY CHECK 1. VFD CHECK (Initial display)
2. VFD DISP OFF (All segments OFF)
3. VFD DISP ALL (All segments ON 100%)
4. VFD DIMMER (All segments ON 50%)
5. CHECKED PATTERN (ON in lattice)
8 MANUAL TEST 1. TEST ALL
2. TEST MAIN L
3. TEST CENTER
4. TEST MAIN R
5. TEST REAR R
6. TEST REAR CENTER (Not used in this model.)
7. TEST REAR L
8. TEST LFE
9 FACTORY PRESET 1.
PRESET INHIBITED (memory initialization inhibited)
2. PRESET RESERVED (memory initialized)
10 AD DATA CHECK 1. PS (protection)
/FAN TEST 2. K0/K1 (panel key)
3. K2 (panel key)
4. IMP SW/POWER LIMIT
5. THM/FAN OUT
6.
FAN DRIVE TEST: HIGH (Fan test only applies to models with a fan.)
7.
FAN DRIVE TEST: MID (Fan test only applies to models with a fan.)
8.
FAN DRIVE TEST: LOW (Fan test only applies to models with a fan.)
11 IF STATUS 1. INSIDE STATUS 1 (5 Byte)
2. INSIDE STATUS 2 (3 Byte)
3. INSIDE STATUS 3 (4 Byte)
4. CHANNEL STATUS 1 (5 Byte)
5. CHANNEL STATUS 2 (5 Byte)
6. CHANNEL STATUS 3 (5 Byte)
7. CHANNEL STATUS 4 (5 Byte)
8. CHANNEL STATUS 5 (4 Byte)
9. BSI (YSS) 1 (5 Byte)
10. BSI (YSS) 2 (5 Byte)
There are 14 DIAG menu items, each of which has sub-
menu items.
Listed in the table below are menu items and sub-menu
items.
Note that not all menu items listed will apply to the models
covered in this service manual.
To Next Page
