• Display during menu operation
During the DIAG operation, the function at work is
indicated on the FL indicator. The contents displayed
during the function operation are described in the later
section on details of functions
• Operation procedure of DIAG menu and
SUB-MENU
There are 14 MENU items, each of which has some SUB-
MENU items.
DIAG menu selection
Main unit: Select the menu using (Forward) and
(Reverse) keys of PRESET/TUNING.
Remote control unit: Select the menu using (Forward)
and
(Reverse) keys.
SUB-MENU selection
Main unit: Select the sub-menu using (Forward) and
(Reverse) keys of PROGRAM.
Remote control unit: Select the sub-menu using
(Forward) and (Reverse) keys.
• History of protection function
When the protection function has worked, its history is
stored in memory with a backup. Even if no abnormality
is noted while servicing the unit, an abnormality which
has occurred previously can be defined as long as the
backup data has been stored.
The history of the protection function is cleared when
DIAG is cancelled by selecting PRESET RESERVED
(Memory initialized) of DIAG menu No.9 or when the
backup data is erased.
●プロテクションの履歴
プロテクションが働いた場合、履歴をバックアップして
記憶しています。サービスのときに異常が認められなく
ても、バックアップが残っていれば、お客様のところで
起きた異常を区別できます。
プロテクションの履歴は、ダイアグメニューNo.9で
PRESETRESERVED（メモリーの初期化）を選んでダイ
アグを解除した場合や、バックアップが消えたときには
クリアされます。
●メニュー動作中の表示
●ダイアグメニューとサブメニューの操作
ダイアグメニューの選択
サブメニューの選択

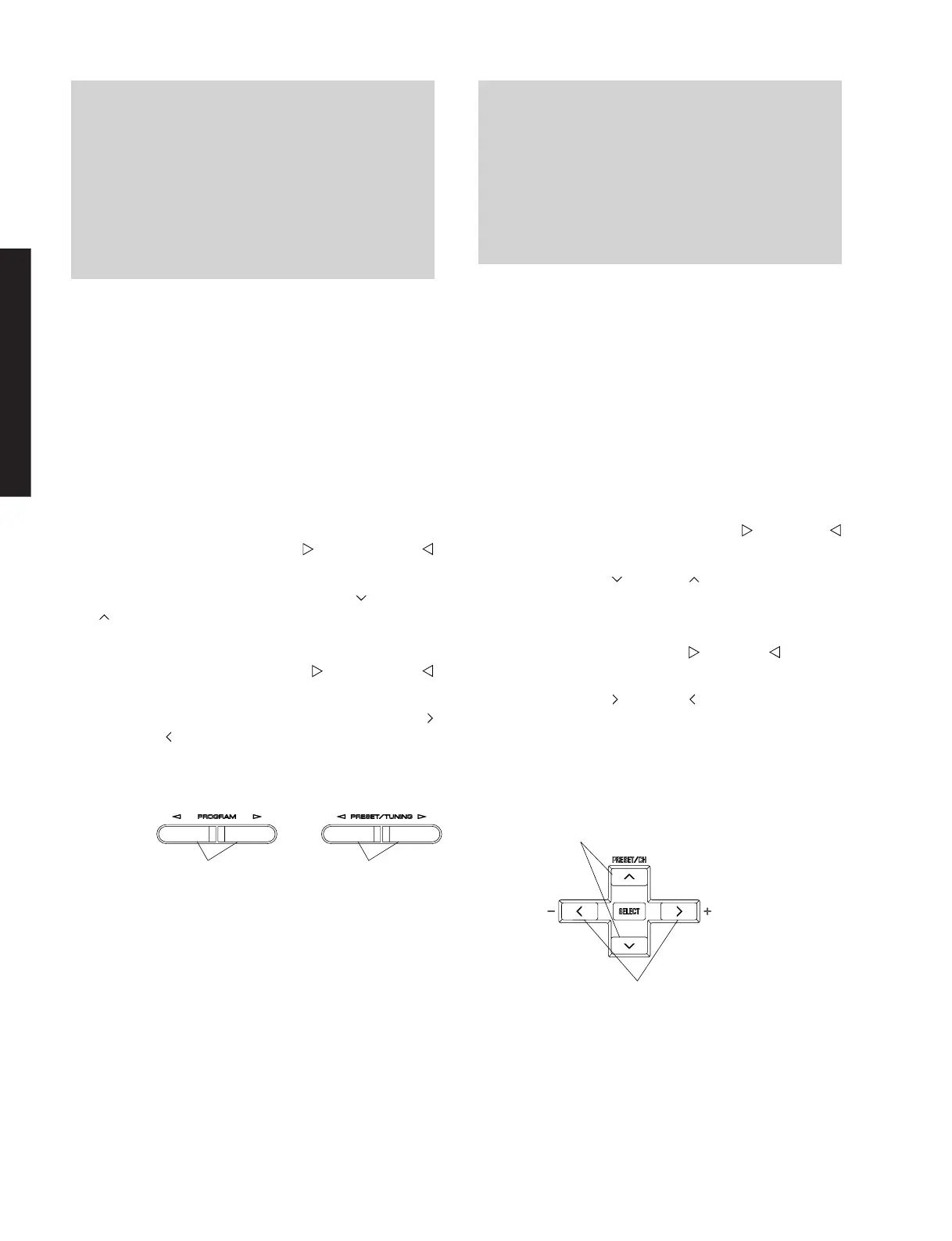

DIAG menu selection
SUB-MENU selection
SUB-MENU selection
DIAG menu selection
