Yamaha DSP-AX430 User Manual

RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
29
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430

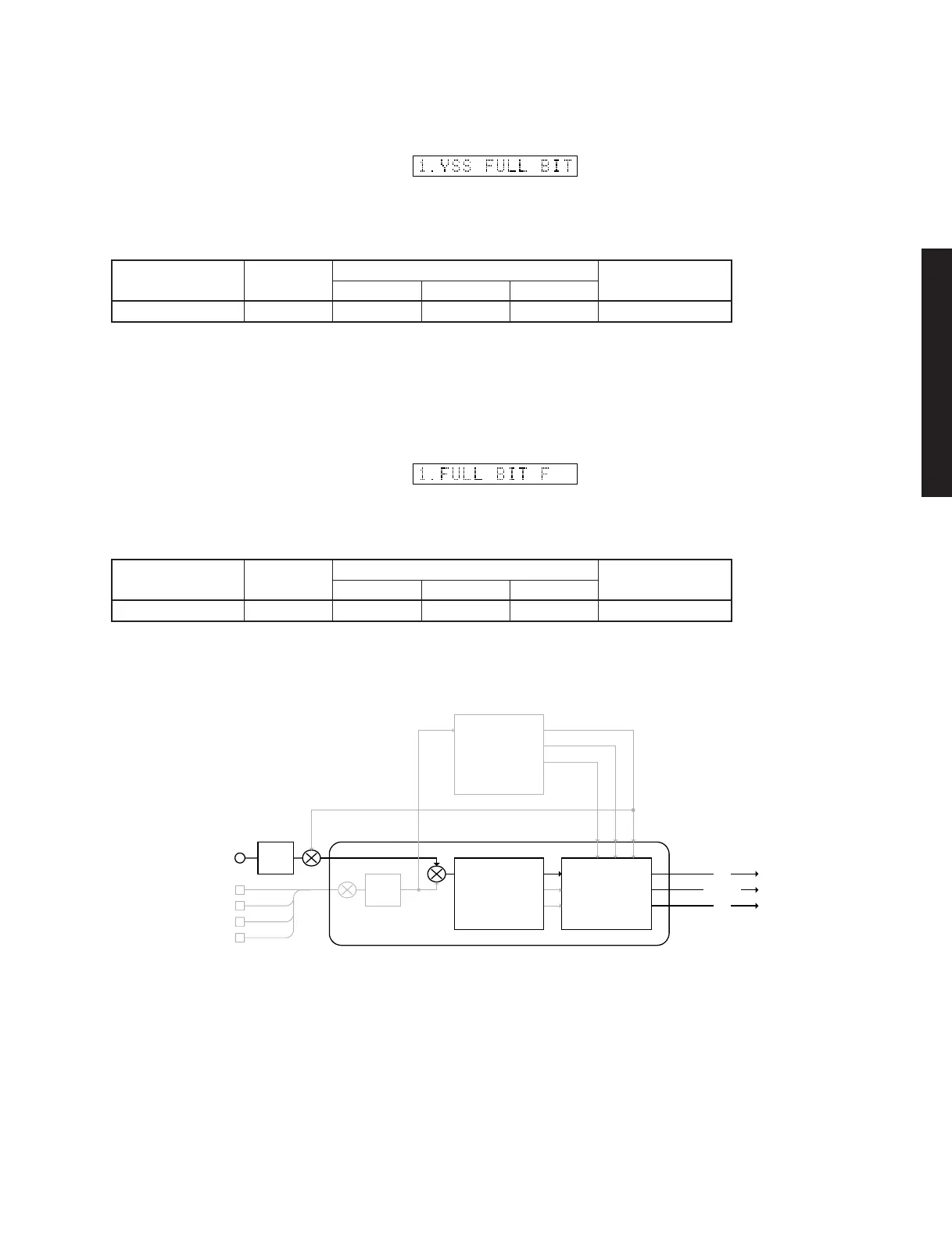

YSS FULL BIT
• The signal is output in digital full bit without including
the head margin.
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
YSS FULL BIT F
• The front CH signal is output in digital full bit at the main
CH.
Reference data
INPUT: DVD ANALOG
SWFR: 50Hz, Others: 1kHz
YSSFULLBIT
 

YSSFULLBITF
 

Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBV -10 dB +14.6 dBV +14.4 dBV +14.5 dBV -2.5 dBV
Input level Volume
SPEAKER OUTPUT (1kHz) SUBWOOFER
MAIN L/R CENTER RL/RR OUTPUT (50Hz)
Both ch, -20 dBV -10 dB +14.0 dBV - ∞ - ∞ - ∞
C/SW
RL/RR
A/D
DIR
YSS938
Main DSP
Through
Sub DSP
Through
L/(L+R)/2
L/R
CS49329
L/R
L/R
Analog
Digital
DSP THROUGH ~
YSS (Analog/PCM)
