RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
39
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430

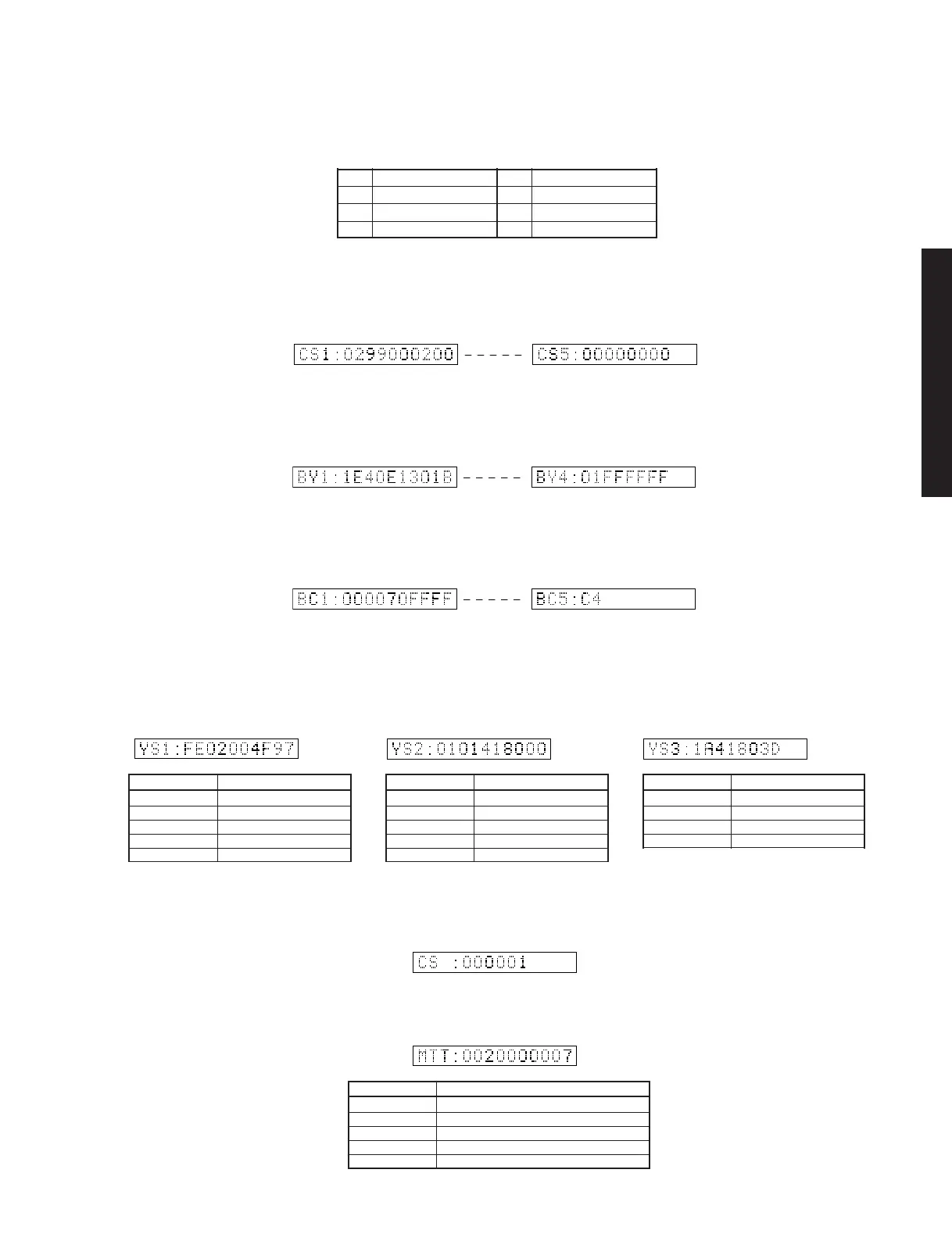

<5th byte> Signal processing status information
*2: With digital signals other than 32kHz, 44.1kHz and
48kHz, through processing method is used for
reproducible signals.
bit7 MUTE request bit3 –
bit6 Red dts flashing bit2 Through & bypass (*2)
bit5 6.1/ES processing bit1 –
bit4 FULL MUTE (ON: 1) bit0 dts analog mute

 

YS1-3: Indicates device status information of YSS938
(IC600).
* The numeric value in the figure is an example for
reference.
Byte No. Function
1 YSS MUTE Reg
2 YSS MODE Reg
3 YSS IPORT BIT 7-0
4 YSS IPORT BIT 14-8
5 YSS OPORT
Byte No. Function
1 IEC 1937 Preamble Pc
2 Data Stream Reg
3 Status Reg
4 YSS ZERO Reg
5 MIREG
Byte No. Function
1 DIR Status
2 DIR fs
3 DIR fs count
4 YSS ZEROBF
CS1-5: Indicates channel status information of the input
signal (IEC60958).
BY1-4: Indicates information of the bit stream included in
the DOLBY DIGITAL signal.
BC1-5: Indicates information of the bit stream included in
the dts signal.
CS: CS49329 Unsolicited Messages
(AUTODETECT_RESPONSE)
MTT: Mute Trigger
Byte No. Function
1 Mute condition
2 Factor of the last mute
3 Error count of YSS938-FSCNT
4 Mute count by YSS938-FSCNT
5 Error factor of down load of CS49329
CS1-5

BY1-4

BC1-5

YS1-3

 
   

MTT
