RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
41
RX-V530/RX-V530RDS/HTR-5550/HTR-5550RDS/DSP-AX530
RX-V430/RX-V430RDS/HTR-5540/HTR-5540RDS/DSP-AX430
Model type (*2)
Tuner mode 0 (*1)
Tuner mode 1 (*1)
Tuner with (1) / without (0)
RDS with (1) / without (0)
VIDEO format: PAL (1) / NTSC (0) (Not applicable to these models.)
TUNER: NOT or EXIST can be selected.
RDS: NOT or EXIST can be selected.
VIDEO FORMAT: NTSC or PAL can be selected.
(Not applicable to these models.)
TUNER
RDS
VIDEOFORMAT

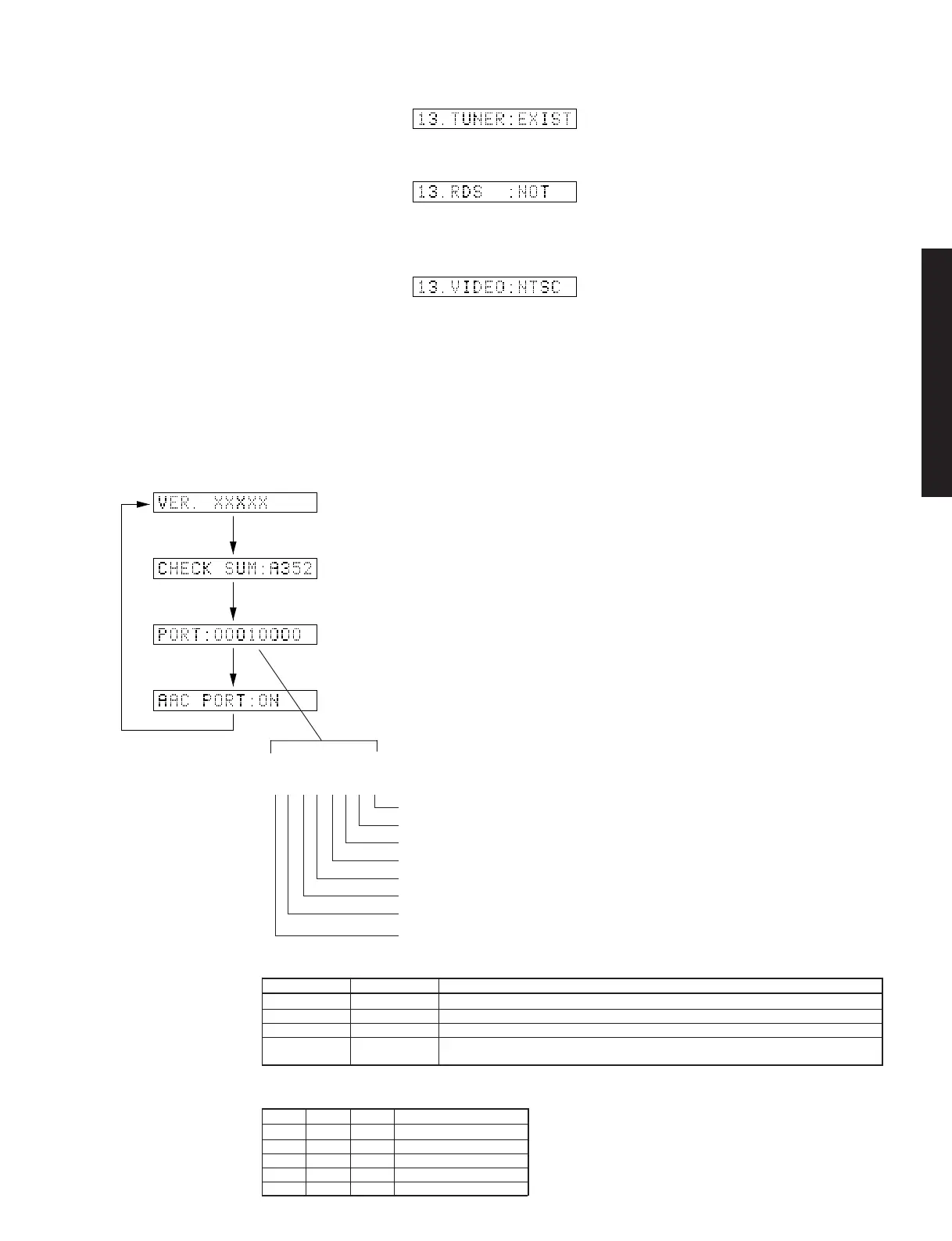

14. MICROPROCESSOR INFORMATION
The version, checksum and the port specified by the
microprocessor are displayed. The signal is processed
using EFFECT OFF. The checksum is obtained by adding
the data at every 8 bits for each program area and
expressing the result as a 4-figure hexadecimal data.
*1 (Tuner mode)
Version /
Release 1 digit / Main version 2 digit / DSP version 2 digit
Checksum /
A: All area
Check of port setting for judging microprocessor function
Display of AAC function detection port state
Tuner mode 1 Tuner mode 0 Tuner frequency
0 0 AM: 531-1611kHz/9kHz FM: 76.0-90.0MHz/100kHz
1 0 AM: 531-1611kHz/9kHz FM: 87.5-108.0MHz/50kHz
0 1 AM: 530-1710kHz/10kHz FM: 87.5-107.9MHz/200kHz
11
R destination, Port6: LOW AM: 530-1710kHz/10kHz FM: 87.5-108.0MHz/100kHz
HIGH AM: 531-1611kHz/9kHz FM: 87.5-108.0MHz/50kHz
14.マイコン情報
)
*2 (Model type)
bit 2 bit 1 bit 0 Model
0 0 0 RX-V430
0 0 1 RX-V530
0 1 0 DSP-AX630
0 1 1 RX-V630
1 0 0 RX-V730
