Yamaha DSP-AX457 User Manual

RX-V557/HTR-5850/DSP-AX557
RX-V457/HTR-5840/DSP-AX457
22
4. FUNCTION、SUBTRANS（2）、（3）、（6）、（7）、（9）、
VIDEO、TUNERの外し方
a. CB307、CB351、CB452、CB453を外します。（Fig.4）
b.
6
のネジ22本を外します。（Fig.3）
c. FUNCTION、SUBTRANS（2）、（3）、（6）、（7）、（9）、VIDEO、
TUNERを取り外します。（Fig.4）

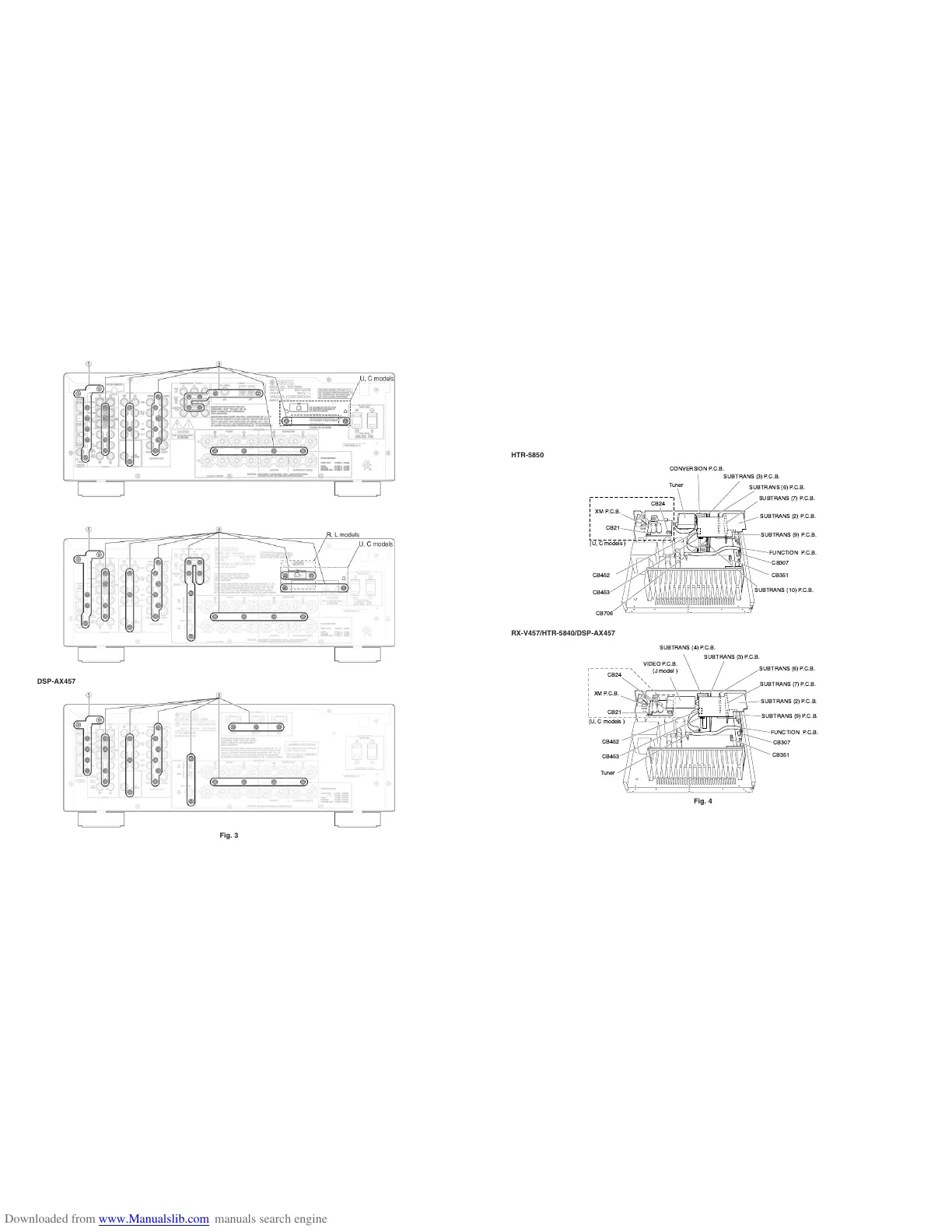

4. Removal of FUNCTION, SUBTRANS (2), (3), (6), (7),
(9), (10), CONVERSION (HTR-5850), XM (U, C
models) P.C.B.s and Tuner
a. Remove CB21, CB24 (U, C models), CB307, CB351, CB452,
CB453 and CB706 (HTR-5850). (Fig. 4)
b. Remove 25 (U, C, R, L models), 23 (T, K, A, B, G, E models)
screws (6). (Fig. 3)
c. Remove FUNCTION, SUBTRANS (2), (3), (4) (RX-V457/
HTR-5840), (6), (7), (9), (10) (HTR-5850), CONVERSION
(HTR-5850), XM (U, C models) P.C.B.s and Tuner. (Fig. 4)
HTR-5850
RX-V457/HTR-5840
SUBTRANS (9) P.C.B.
SUBTRANS (10) P.C.B.
SUBTRANS (7) P.C.B.
SUBTRANS (2) P.C.B.
SUBTRANS (6) P.C.B.
SUBTRANS (3) P.C.B.
CONVERSION P.C.B.
FUNCTION P.C.B.
Tuner
XM P.C.B.
CB21
CB24
CB307
CB351
CB452
CB453
CB706
(U, C models )
SUBTRANS (9) P.C.B.
SUBTRANS (7) P.C.B.
SUBTRANS (2) P.C.B.
SUBTRANS (6) P.C.B.
SUBTRANS (3) P.C.B.
SUBTRANS (4) P.C.B.
FUNCTION P.C.B.
Tuner
XM P.C.B.
VIDEO P.C.B.
(J model )
CB21
CB24
CB307
CB351
CB452
CB453
(U, C models )
HTR-5850
RX-V457/HTR-5840/DSP-AX457
DSP-AX457
Fig. 4
Fig. 3
