Yamaha DSP-AX620 Owner's Manual

9
English
INTRODUCTION PREPARATION
BASIC
OPERAIONT
ADVANCED
OPERATION
ADDITIONAL
INFORMATION
APPENDIX
CONTROLS AND FUNCTIONS

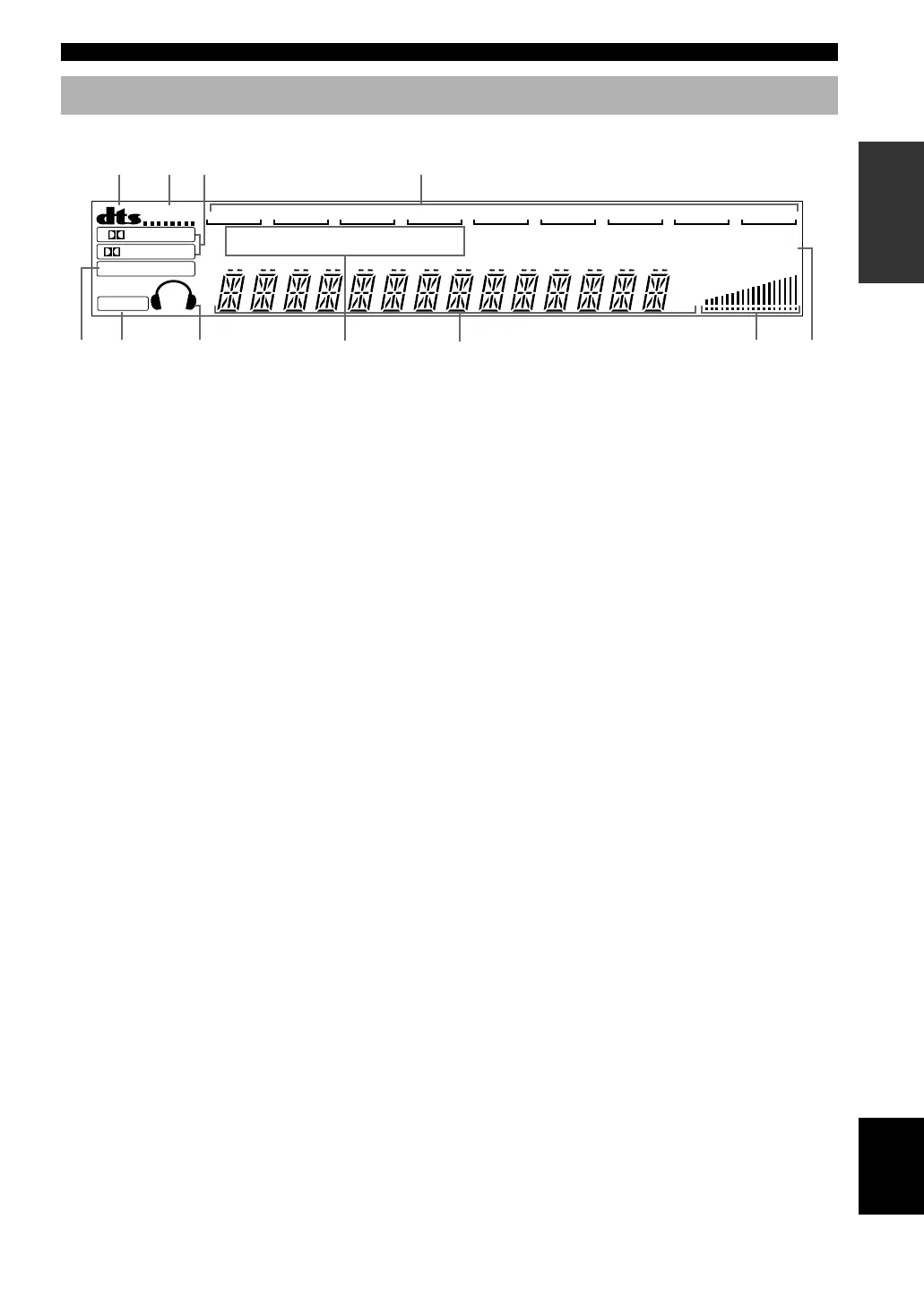

Front Panel Display
1 t indicator
Lights up when the built-in DTS decoder is on.
2 VIRTUAL indicator
Lights up when using Virtual CINEMA DSP.
3 g and o indicators
Light up according to the type of Dolby signals this unit
is reproducing. “ g ” lights up when the built-
in Dolby Digital decoder is on. “ o ” lights up
when the built-in Dolby Pro Logic decoder is on.
4 Input source indicator
Shows the current input source with a cursor.
5 x indicator
Lights up when you select a DSP program.
6 v indicator
Lights up when this unit is reproducing PCM (pulse code
modulation) digital audio signals.
dB
ms
PCM
DSP
DIGITAL
PRO LOGIC
A
SP
B
VIRTUAL
DOLBY DIGITAL
PRO LOGIC DTS
MOVIE THEATER 1 2
ENTERTAINMENT
SLEEP
VOLUME
CDTUNER PHONO MD/CD-R DVD D-TV/CBL VCR 1 VCR2/DVR V-AUX
1 2
3
4
5
6 7
8
9
0 q
7 Headphones indicator
Lights up when headphones are connected.
8 DSP program indicators
The name of the selected DSP program lights up when
the ENTERTAINMENT, MOVIE THEATER 1, MOVIE
THEATER 2 or q/DTS SURROUND DSP program is
selected.
9 Multi-information display
Shows the current DSP program name and other
information when adjusting or changing settings.
0 VOLUME level indicator
Indicates the volume level.
q SLEEP indicator
Lights up while the sleep timer is on.
0102AX620(GB)_1-10_EN 1/23/1, 9:26 AM9
