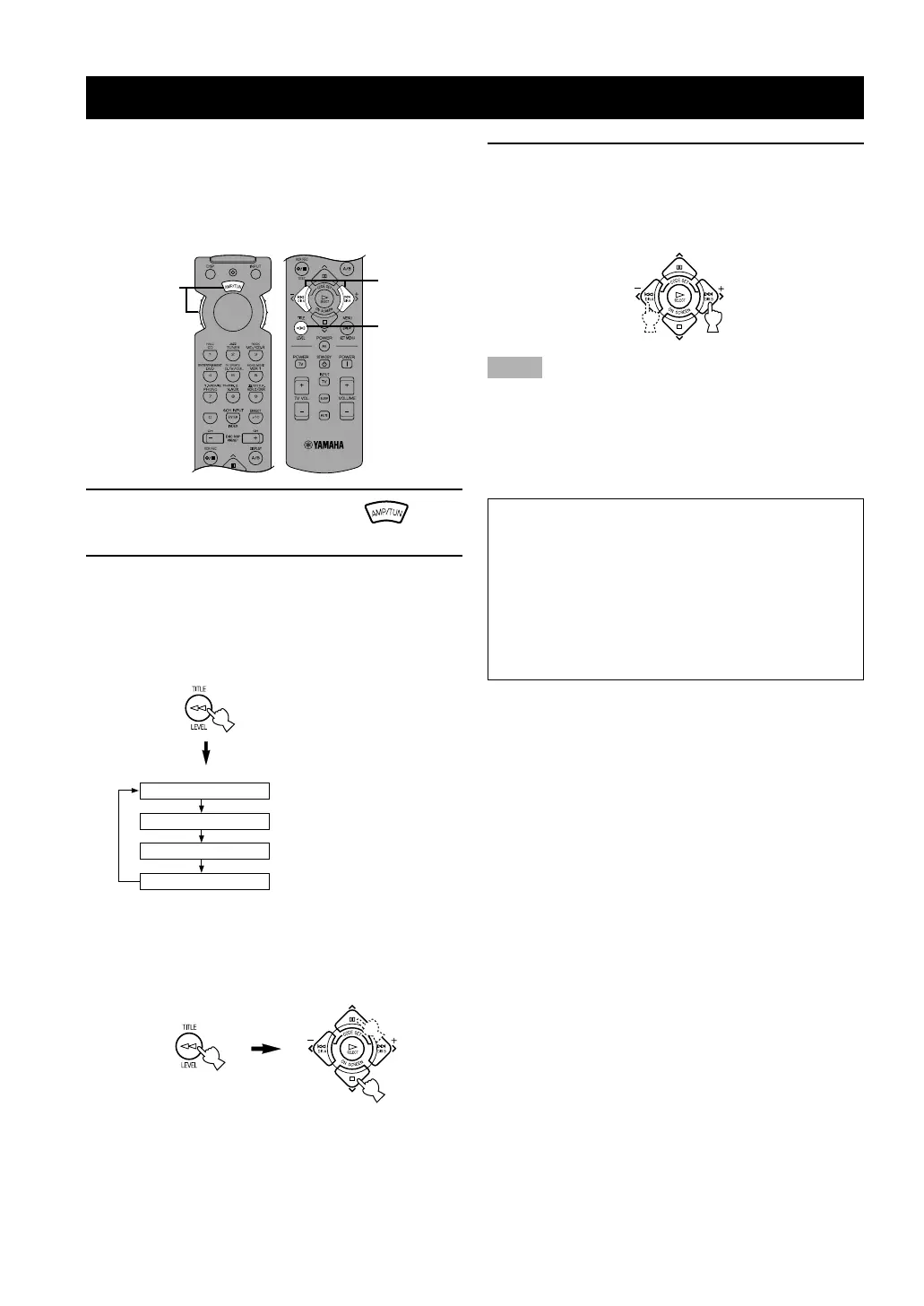

ADJUSTING THE LEVEL OF THE EFFECT SPEAKERS
You can adjust the output level of each effect speaker
(center, left and right rear and subwoofer) while listening
to a music source.
Adjustment should be made with the remote control.
1 Set the selector dial to the
AMP/TUN (or DSP/TUN)
position.
2 Press LEVEL repeatedly to select the
speaker(s) you want to adjust.
Each time you press LEVEL, the selected speaker
changes and appears on the front panel display and
on the video monitor as follows: center, right rear,
left rear and subwoofer.
CENTER
R SUR.
L SUR.
SWFR
Center speaker output level
Right rear speaker output
level
Left rear speaker output
level
Subwoofer output level
y
Once you press LEVEL, you can also select the speaker(s) to
be adjusted by pressing d. (Pressing u changes the selection
in the reverse order.)
3 Press j / i to adjust the speaker output level.
The control range for the center or left and right
rear speakers is from +10 dB to 10 dB.
The control range for the subwoofer is from 0 dB
to 20 dB.
Notes
If the speaker output mode is set to NONE, the output level of
that speaker cannot be adjusted.
When you adjust the output level with LEVEL, the settings you
made with the test tone will be changed.
To adjust speakers other than the subwoofer, the adjusting
procedure using the test tone on page 22 is recommended.
Memory back-up
The memory back-up circuit prevents the stored data
from being lost even if this unit is set in the standby
mode, the power cord is disconnected from the AC
outlet, or the power supply is temporarily cut due to
power failure. However, if the power is cut for more
than one week, the output level of the effect speakers
you adjusted will return to the factory settings. If so,
adjust the output level again.
