37
English
INTRODUCTION
PREPARATION
BASIC OPERA-
TION
ADVANCED
OPERATION
ADDITIONAL
INFORMATION
APPENDIX

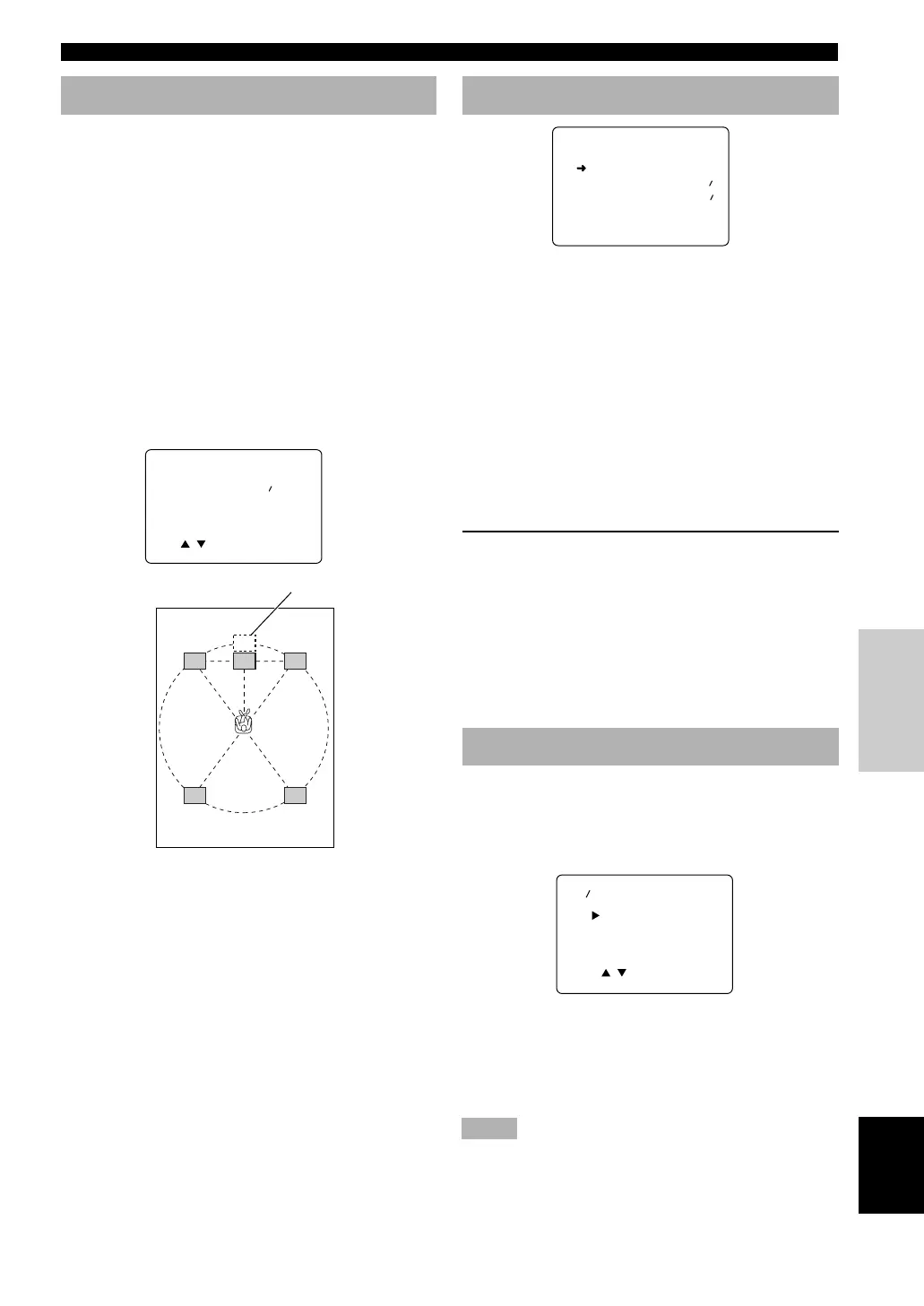

SET MENU
L
C
C
R
RL
RR
8 SP DELAY TIME
Use this feature to adjust the delay of the center channel
sound. This feature works when this unit decodes a Dolby
Digital or DTS signal. Ideally, the center speaker should
be the same distance from the listening position as the left
and right main speakers. However, in most home
situations, the center speaker is placed in line with the
main speakers. By delaying the sound from the center
speaker, the apparent distance from the center speaker to
the listening position can be adjusted to make it seem the
same as the distance between the left and right main
speakers to the listening position. Adjusting the delay
time for the center speaker is especially important for
giving depth to the dialog.
Control range (ms): 0 to 5
Initial setting: 0 ms
Center speaker image
y
Increasing the delay by 1 ms simulates moving the speaker
about 30 cm (one foot) farther away from the actual position of
the center speaker.
8 SP DELAY TIME
: Exit/
/+ : Adjust
CENTER 0ms
9 DISPLAY SET
BLUE BACK
Selecting AUTO for the on-screen display setting displays
a blue background when theres no video signal input.
Nothing is displayed on the screen including the on-
screen display if OFF is selected.
Initial setting: AUTO
OSD SHIFT (OSD off-set position)
This setting is used to adjust the vertical position of the
OSD.
Control range: +5 (downward) to 5 (upward)
Initial setting: 0
Press i to lower the position of the OSD.
Press j to raise the position of the OSD.
DIMMER
You can adjust the brightness of the front panel display.
Control range: 4 to 0
Initial setting: 0
10 MEMORY GUARD
Use this feature to prevent accidental changes to DSP
program parameter values and other settings on this unit.
Choices: ON, OFF
Initial setting: OFF
Select ON to protect the following features:
DSP program parameters
All SET MENU items
Center, rear speakers and subwoofer levels
The on-screen display (OSD) mode
Notes
When 10 MEMORY GUARD is set to ON, you cannot use
the test tone.
When 10 MEMORY GUARD is set to ON, you cannot select
any other SET MENU items.
9 DISPLAY SET
BLUE BACK AUTO
DIMMER 0
OSD SHIFT 0
10 MEMORY GUARD
OFF ON
: Exit
/
/+ : Select
0107AX620(GB)_31-39_EN 1/23/1, 9:27 AM37
