Yamaha DSP-AZ1 User Manual

E-39
PREPARATIONS
English

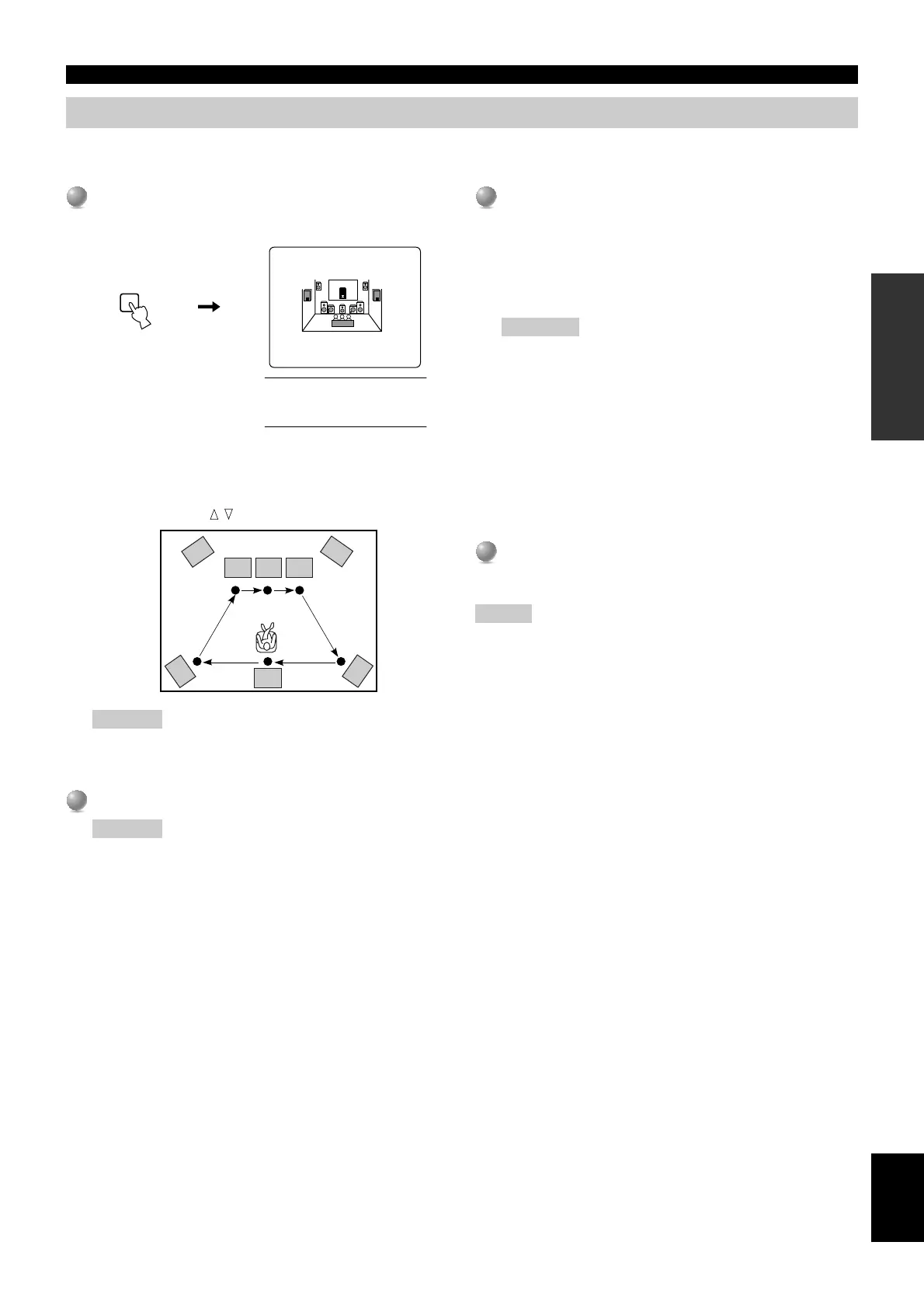

SPEAKER OUTPUT LEVELS
TEST DOLBY SUR.
Select “TEST DOLBY SUR.” to match the output levels of the center, rear center and left and right rear speakers to the left and right main
speakers.
1
1
Press TEST on the remote control.
“TEST DOLBY SUR.” appears on the video monitor and front
panel display.
The test tone is produced from the left main speaker, center
speaker, right main speaker, right rear speaker, rear center
speaker and left rear speaker in order. The tone is produced for
2.5 seconds each time. You can also select the speaker to be
adjusted by pressing
/ .
Caution
• Speakers whose settings are set to “NONE” in “1 SPEAKER
SET” (except for “1A CENTER SP”) on the SET MENU will
be skipped and no test tone will be output.
2
2
Adjust VOLUME +/– so you can hear the test tone.
Caution
• If the test tone cannot be heard, turn down the volume, set
this unit in the standby mode and check the speaker connec-
tions.
TEST
LEFT
TEST DOLBY SUR.
TEST DOLBY SUR.
LEFT
RL
FR
RR
FL
L
C
RC
R
3
3
Press +/– repeatedly to adjust the output level of the
effect speakers so that the output level coming from
each speaker is the same.
Each speaker level can be adjusted in the range of –10 to +10
dB.
While adjusting, the test tone is heard from the selected
speaker.
Cautions
• If “1A CENTER SP” on the SET MENU is set to “NONE”,
the center channel sound is automatically output from the left
and right main speakers.
• If “1C REAR L/R SP” on the SET MENU is set to “NONE”,
the output level of the rear left, right and center speakers
cannot be adjusted in step 3.
• If “1D REAR CT SP” on the SET MENU is set to “NONE”,
the output level of the rear center speaker cannot be adjusted
in step 3.
• Main L/R speaker level cannot be adjusted by itself. Use
VOLUME to adjust the main volume.
4
4
Press TEST to enter the TEST DSP mode.
Press TEST again to stop the test tone and the DSP program
name appears on the front panel display and the video monitor.
Notes
• The tonal quality of the speakers can be adjusted using the “4
CENTER GEQ”, “5 REAR CT GEQ”, and “6 CINEMA EQ”
items in the SET MENU (see pages 55 to 57).
• You can increase the output levels of the effect channels (left rear,
right rear, rear renter and center) to +10 dB. If the output level of
the center, rear, and rear center speakers is lower than that from
the main speakers even after you have increased the sound volume
level of the center, rear, and rear center speakers up to +10 dB, set
the “1G MAIN LEVEL” item in the SET MENU to “–10dB”.
Setting the “1G MAIN LEVEL” item to this setting decreases the
main speaker volume level to about one-third the normal level.
After you set the “1G MAIN LEVEL” item in the SET MENU to
“–10dB”, adjust the levels for the center, rear, and rear center
speakers again.
• The adjustment of output levels of the center speaker, and left and
right rear speakers is also effective to the speaker output level
during the playback of the source connected to 6CH INPUT jacks.
