DSP-E800
DSP-E800
11

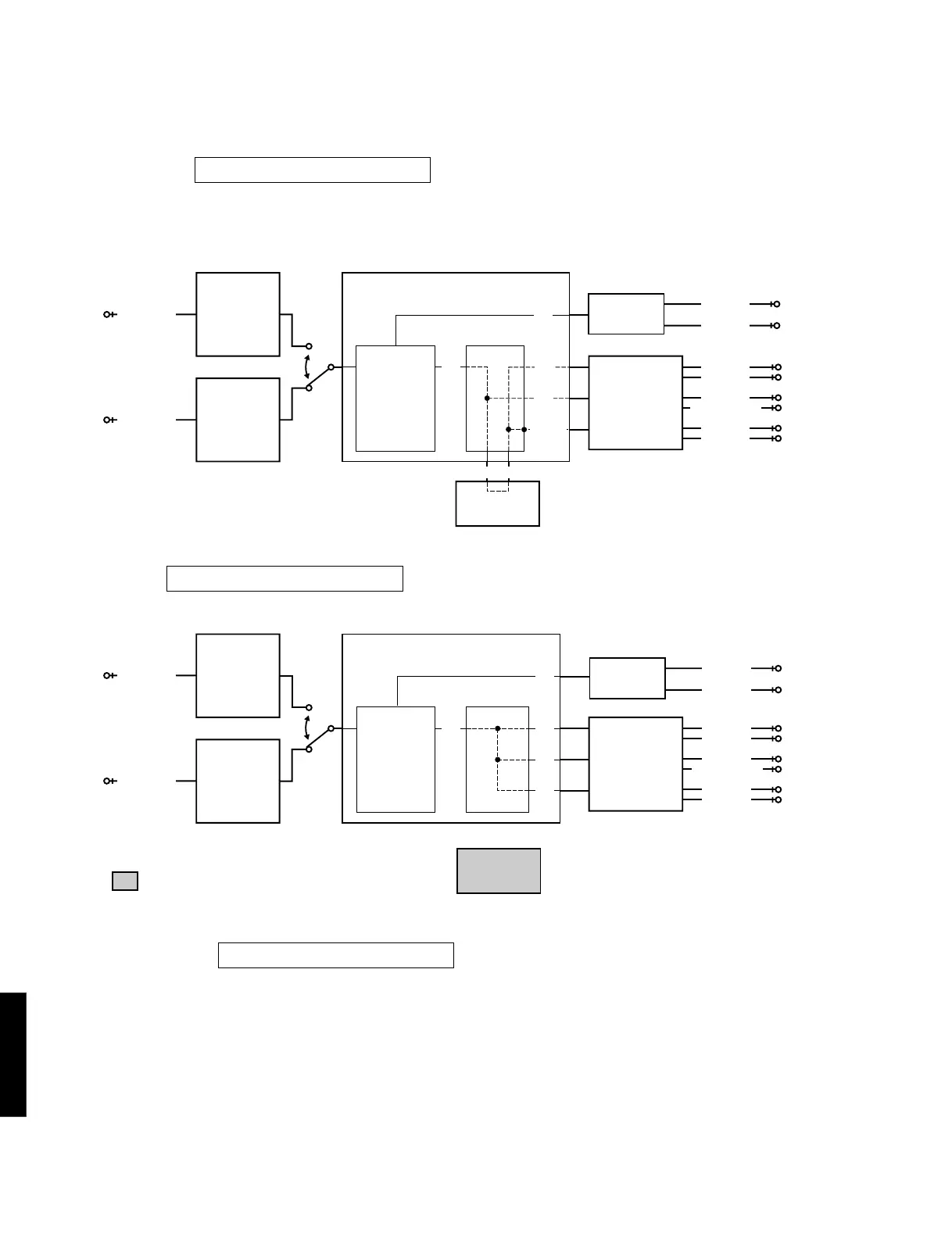

No.2 DSP THROUGH
The input is automatically discriminated by signal detection and switched with priorities Coaxial>Optical>Analog.
There are the following three sub-menus.
1. YSS+SRAM
The L/R signals are output without being processed to the MAIN L/R through the AC3D2av.
The L/R signals are output without being processed to the CENTER/SUBWOOFER through the DSP.
The (L+R)/2 signals are output to the FRONT L/R and REAR L/R through the DSP and the SRAM.
When one of the L/R signals is not input, the output level is –6dB. (Remote control code 7D-05:"2" key)
2. YSS M
Same as "2. DSP 0dB" of "No.1 ANALOG THROUGH", except for the input switching.
3. DSP FULL BIT
Same as the above menu, except that the head margin is disabled, and the digital data is output with full bits from
AC3D2av to DAC.
AC3D2av(YSS918)
1M SRAM
DSP
ANALOG IN
L/R
DIGITAL IN
1M SRAM
: This shows that the device is not operating.
L/R
L/R
(L+R)/2
(L+R)/2(L+R)/2
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, –20dBV)
• OUTPUT : PRE OUT
MAIN L : –3.5 dBV REAR L : –3.5 dBV
MAIN R : –3.5 dBV REAR R : –3.5 dBV
CENTER: –3.5 dBV
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, –20dBV)
• OUTPUT : PRE OUT
MAIN L : –3.5 dBV REAR L : –3.5 dBV
MAIN R : –3.5 dBV REAR R : –3.5 dBV
CENTER: –3.5 dBV
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, 1KHz, –20dBV)
• OUTPUT : PRE OUT
MAIN L : –3.5 dBV REAR L : 5.0 dBV
MAIN R : –3.5 dBV REAR R : 5.0 dBV
CENTER: –1.0 dBV
2. YSS+SRAM M
2. YSS M
2. DSP FULL B I T
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AK4526A
DECODER
DOLBY DIGITAL
or
PRO LOGIC
or
DTS
DAC
AK4324
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
FRONT L
MAIN R
MAIN L
L/R
ANALOG IN
DIGITAL IN
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AC3D2av(YSS918)
AK4526A
DECODER
DOLBY DIGITAL
or
PRO LOGIC
or
DTS
DSP
L/R L/R
DAC
AK4324
FRONT R
REAR L
REAR R
CENTER
SUBWOOFER
L/R
L/R
FRONT L
MAIN R
MAIN L
L/R
