DSP-E800
DSP-E800
12

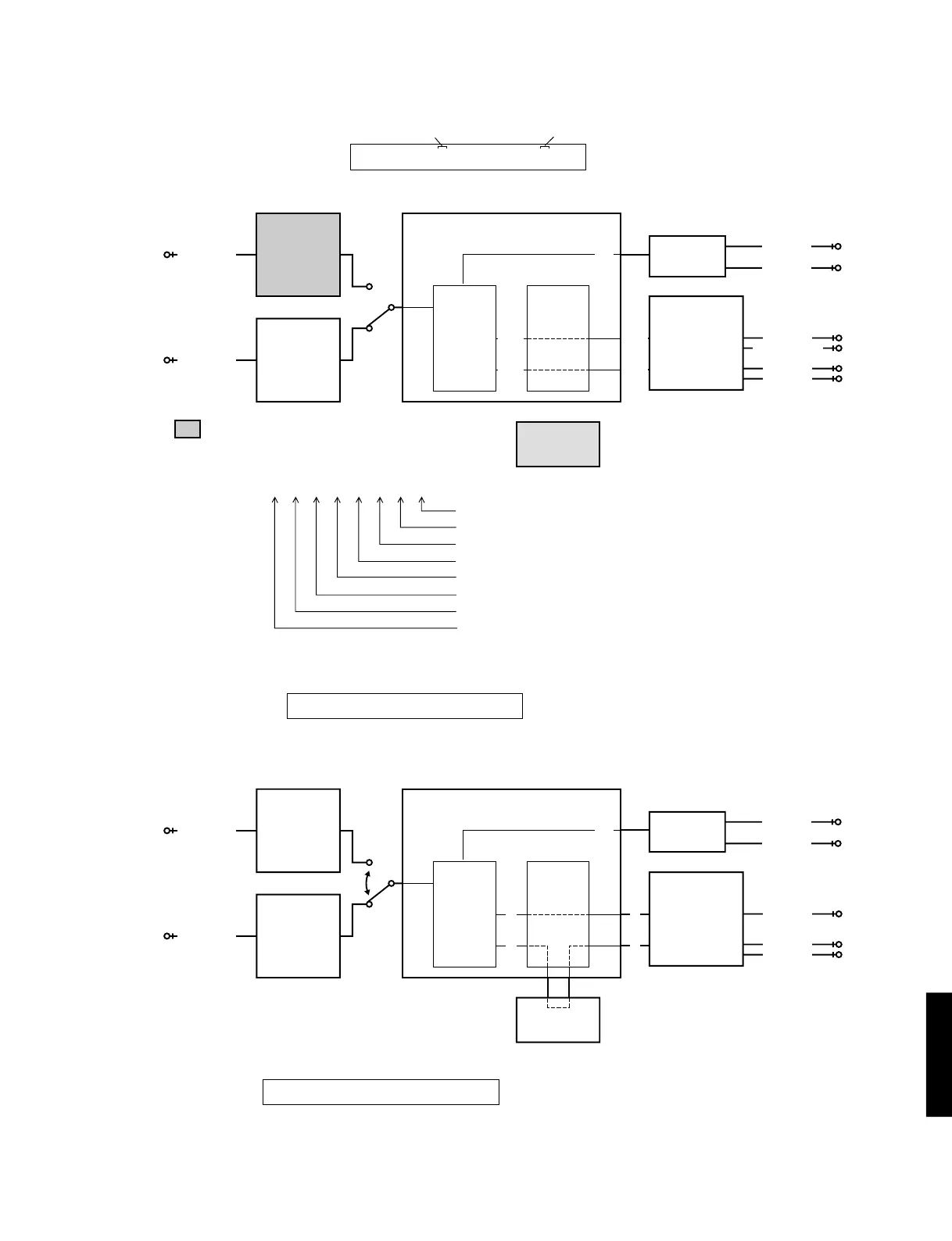

No.3 AC-3/DTS THROUGH
The input is digital signal only. AC-3 (DOLBY DIGITAL) or DTS Digital Surround decoding operation is executed,
according to the input source.
1. STATUS(BINARY FORM)
AC-3 (DOLBY DIGITAL) decoded signals are output to each channel via AC3D2av.
The AC-3 (DOLBY DIGITAL) signal status data will be displayed in the FL display using a binary number.
AC-3 Status Info. : bit 7 6 5 4 3 2 1 0
(Invalid in DTS) 1 0 0 01001
IEC958 digital data bit
IEC958 commercial-use device bit
IEC958 digital format error
Demodulator muting (without RF signal)
1 for audio other than PCM linear audio
1 during red DTS lock (Flashes and lights)
1 during DTS decode OK
1 during AC-3 decode OK
No.4 PRO LOGIC
The sub-menu is switched between PRO LOGIC (AUTO BALANCE OFF) and EFFECT OFF.
1. CENTER LARGE
The input is automatically discriminated by signal detection and switched with priorities Coaxial>Optical>Analog.
DTS Digital Surround is disabled. The input signals are PRO LOGIC decoded and output.
(Remote control code 7D-06: "3" key)
2. EFFECT OFF
The input is only for analog signal. The L/R signals bypass the digital circuit and are output to the MAIN L/R.
AC3D2av(YSS918)
DECODER
DOLBY DIGITAL
or
PRO LOGIC
or
DTS
or
DTS
1M SRAM
DSP
ANALOG IN
REAR L
REAR R
CENTER
SUBWOOFER
DIGITAL IN
LS/RSLS/RS
C/LFEC/LFE
AC3D2av(YSS918)
DECODER
DOLBY DIGITAL
or
PRO LOGIC
1M SRAM
DSP
ANALOG IN
C
S
C
S
REAR L
REAR R
CENTER
DIGITAL IN
: This shows that the device is not operating.
• INPUT : DVD/LD (Analog signal)
(Lch and Rch, or Lch only, 1KHz, –20dBV)
• OUTPUT : PRE OUT
(INPUT : Lch and Rch ) (INPUT : Lch only)
MAIN L : – ∞ dBV MAIN L : –3.5 dBV
MAIN R : – ∞ dBV MAIN R : – ∞ dBV
CENTER: –0.5 dBV CENTER : – ∞ dBV
REAR L : – ∞ dBV REAR L : – ∞ dBV
REAR R : – ∞ dBV REAR R : – ∞ dBV
3. ST:10001001
4. PRO CNTR: LRG
4. PRO EFCT : OFF
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AK4526A
DIR5
CODEC.DAC
AK4526A
YSD917
CODEC.ADC
AK4526A
DAC
AK4324
MAIN R
MAIN L
L/R
DAC
AK4324
MAIN R
MAIN L
L/R
bit 7
bit 1
