PM5DV2/DSP5D Editor Owner’s Manual
39

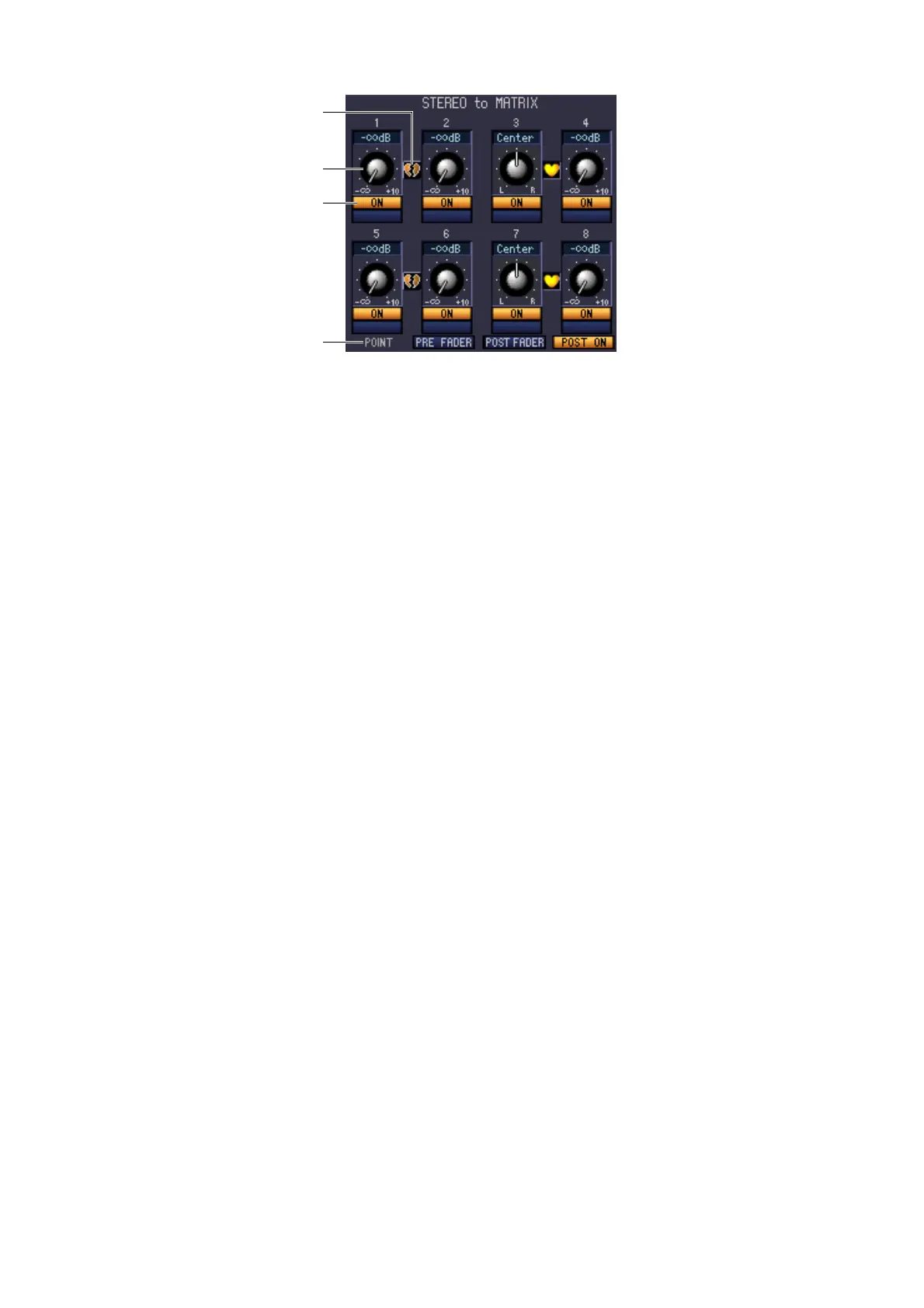

❏ STEREO to MATRIX
A MATRIX send level
Here you can adjust the send levels of the signals sent from the STEREO A/B channels to the MATRIX bus.
B Pair
This indicates the pairing status of adjacent odd-numbered/even-numbered MATRIX channels. You can click the
heart symbol to enable/disable pairing.
C ON (MATRIX send on/off)
This is an on/off switch for the signal sent from the STEREO A/B channel to the MATRIX bus.
D POINT (Send point)
Selects the point from which the signal is sent from the STEREO A/B channel to the MATRIX bus. You can choose
PRE FADER (immediately before the fader), POST FADER (immediately after the fader), or POST ON (immedi-
ately after the STEREO [ON] key).
1
2
3
4
