Yamaha E8D - Tilt Lock Mechanism; Tilt Support Bar; Top Cowling Lock Lever

E
2-10
001471
q
001252
q
8
9.9, 15
EMU00153

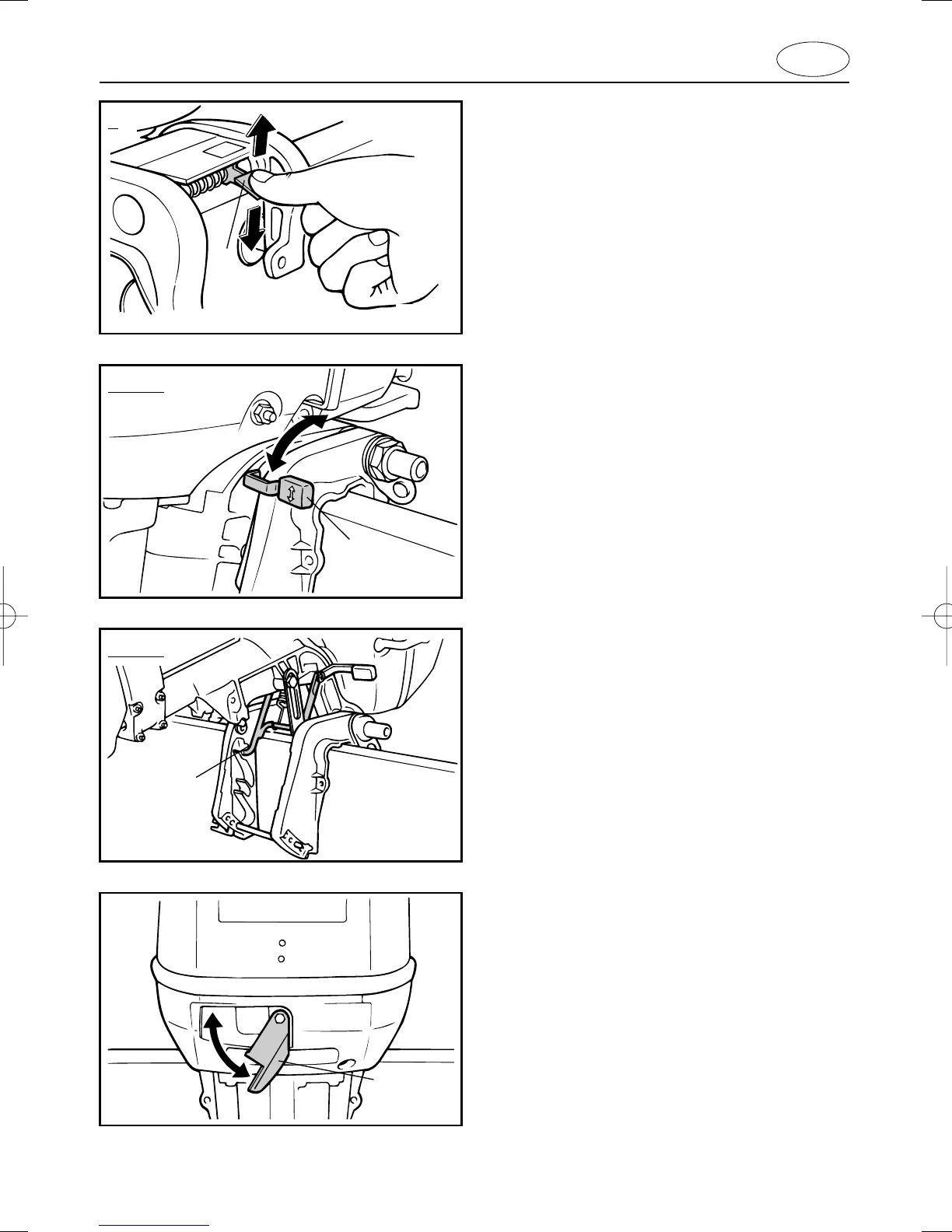

TILT LOCK MECHANISM (for Manual
tilt model)
The tilt-lock mechanism is used to prevent
reverse thrust from the propeller lifting the
outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position.
To release it, place the tilt-lock lever in the
Tilt position.
1 Tilt-lock lever
001253
q
001254
q
EMU00156
TILT SUPPORT BAR
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
EMU00162
TOP COWLING LOCK LEVER
To remove the engine top cowling, turn the
lock lever. Then lift off the cowling. When
replacing the cowling, check to be sure it fits
properly in the rubber seal. Then lock the
cowling again by moving the lever upward.
1 Top cowling lock lever
9.9, 15
63V-9-K0A0-2 4/4/02 4:47 PM Page 22
