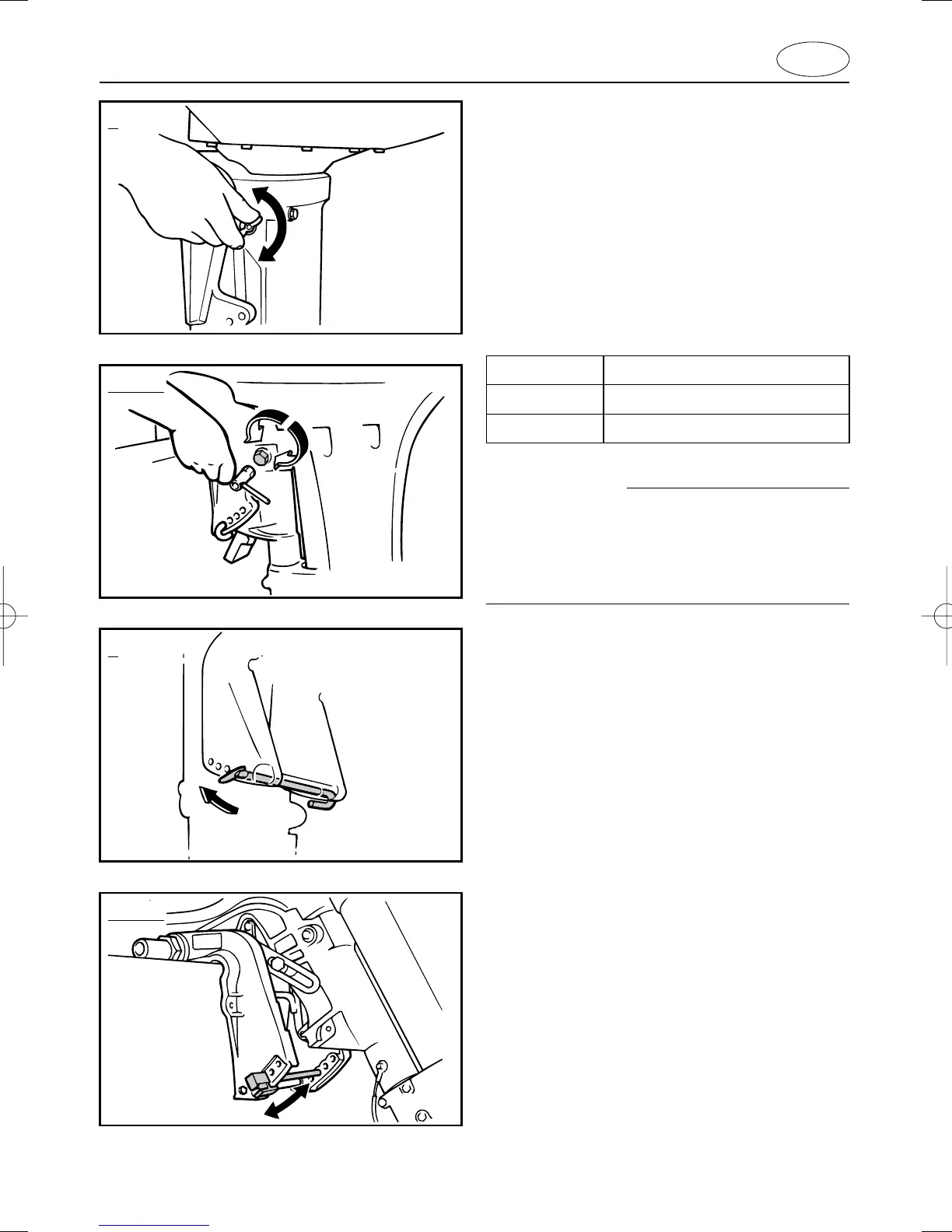

STEERING FRICTION ADJUSTING
SCREW (for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting screw/bolt
is located on the swivel bracket.
EMU01296
Adjustment
w
Do not over tighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
Resistance Screw/Bolt
Increased Turn clockwise
Decreased Turn counterclockwise
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting rod
determines the minimum trim angle of the
outboard motor in relation to the transom.
