ADJUSTING TRIM ANGLE
EMU00951
Manual tilt model
There are 4 or 5 holes provided in the
clamp bracket to adjust the outboard motor
trim angle.
1) Stop the engine.

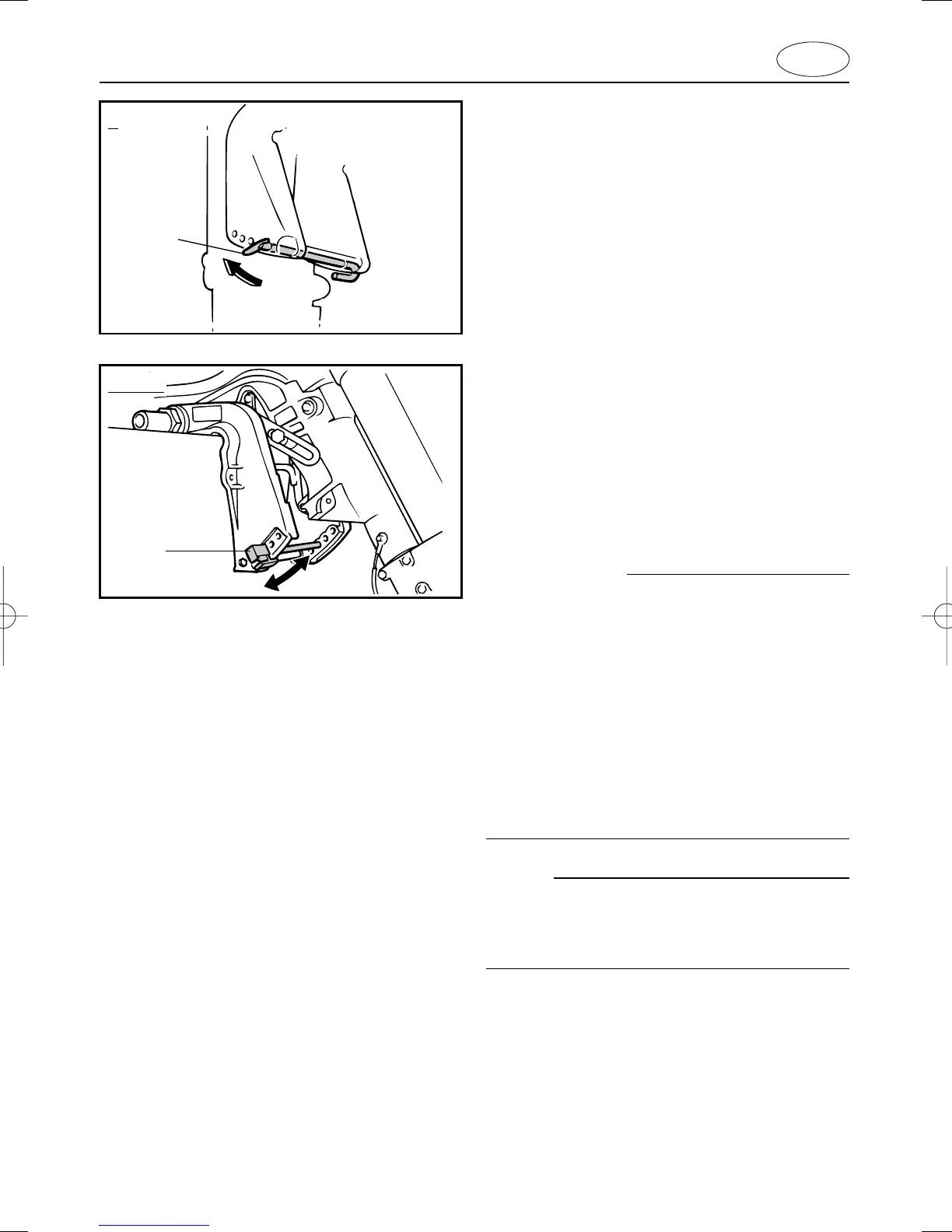

2) Remove the trim angle adjusting rod 1
from the clamp bracket while tilting the
motor up slightly.
3) Reposition the rod in the desired hole.
To raise the bow (“trim-out”), move the rod
away from the transom.
To lower the bow (“trim-in”), move the rod
toward the transom.
Make test runs with the trim set to different
angles to find the position that works best
for your boat and operating conditions.
w
8 Stop the engine before adjusting the
trim angle.
8 Use care to avoid being pinched when
removing or installing the rod.
8 Use caution when trying a trim posi-
tion for the first time. Increase speed
gradually and watch for any signs of
instability or control problems.
Improper trim angle can cause loss of
control.
NOTE:
The outboard motor trim angle can be
changed approximately 4 degrees by shift-
ing the trim adjusting-rod one hole.
001477
q
8
001478
q
9.9, 15
