– 15 –
8. Place the handle on the carrier frame, and then
fasten with the bolts.
TIP
Lock the handle into position with the lock lever.
p Bolt (8 × 16 mm Flange bolt)
a Handle
Tightening torque:
16 N·m (1.6 kgf·m, 12 lb·ft)
9. Lift the engine 20 cm (7.87 in) off the ground using
a winch or other suitable lifting device.
000-000
p
a
p
000-000

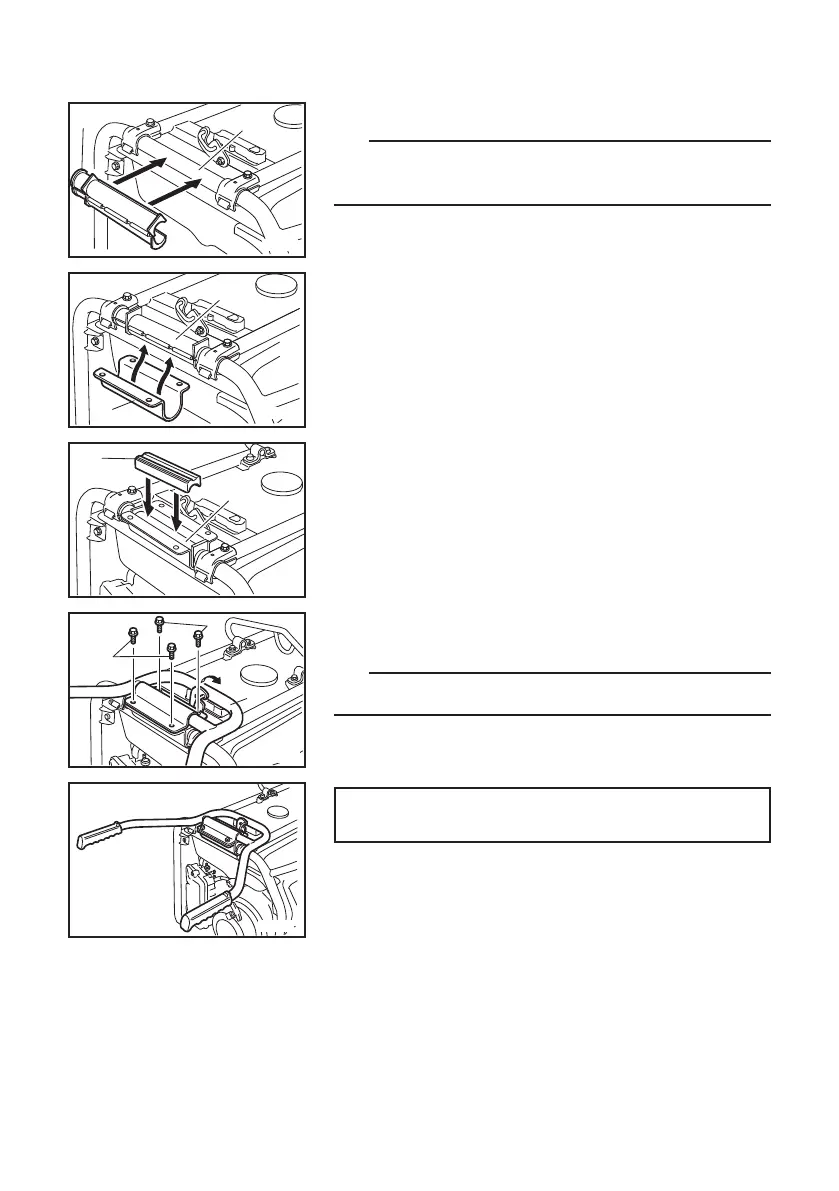

5. Install the sleeve on the generator frame.
TIP
Refer to the illustration to be sure that the sleeve is
installed properly.
y Sleeve
u Generator frame
6. Install the bracket handle to the sleeve.
i Bracket handle
7. Install the locating damper on the sleeve.
o Locating damper
000-000
y
u
000-000
y
i
000-000
y
o
