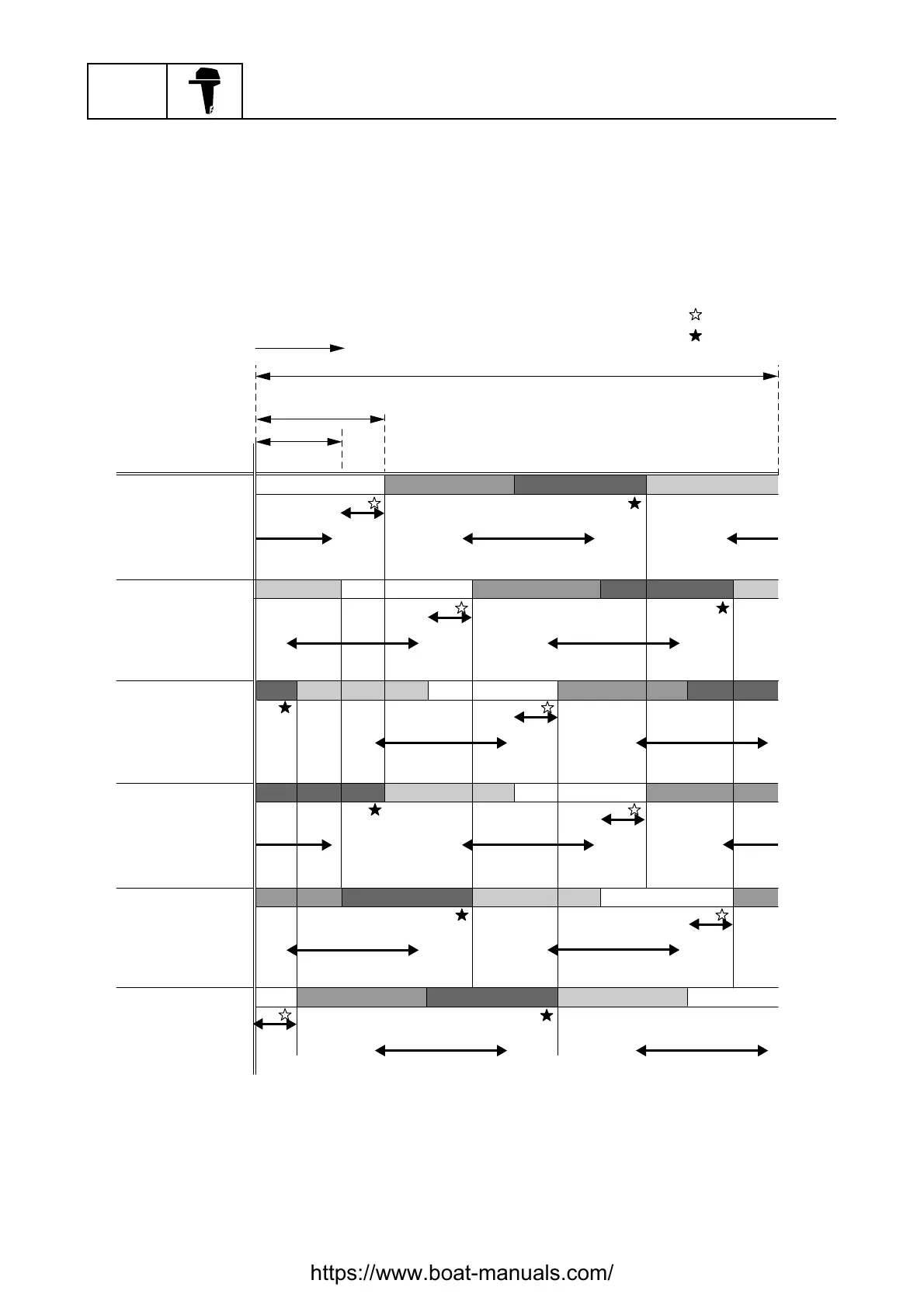

Ignition and fuel injection timing
This engine adopted the group injection system that the fuel required for one combustion is injected
twice per one cycle.
Therefore, the injector driving circuits can be integrated to 3 circuits and a simpler electrical struc-
ture is obtained.
Firing order : #1, #2, #3, #4, #5, #6
Injection order: #1 and #4
→
#2 and #5
→
#3 and #6 (group injection)
TDC
720˚
180˚
120˚
TDC
TDC
TDC
TDC
Crankshaft angle
Cylinder
Cylinder #1
Cylinder #2
Cylinder #3
Cylinder #4
Cylinder #5
Cylinder #6
Ignition
Injection
Ignition
Injection
Ignition
Injection
Ignition
Injection
Ignition
Injection
Ignition
Injection
Compression
Compression
Compression
Compression
Compression
Compression
Intake
Intake
Intake
Intake
Intake
Intake
Combustion Exhaust
Combustion Exhaust
Combustion Exhaust
Combustion
Exhaust
Combustion Exhaust
Combustion Exhaust
: Ignition spark
: Wasted spark
