Yamaha F25D - Trim Tab; Trim Rod (Tilt Pin); Tilt Lock Mechanism

Components
24
If the boat tends to veer to the left (port side),
turn the trim tab rear end to the port side “A”
in the figure. If the boat tends to veer to the
right (starboard side), turn the trim tab end to
the starboard side “B” in the figure.
NOTICE
ECM00840
The trim tab also serves as an anode to
protect the engine from electrochemical
corrosion. Never paint the trim tab as it
will become ineffective as an anode.
EMU26253

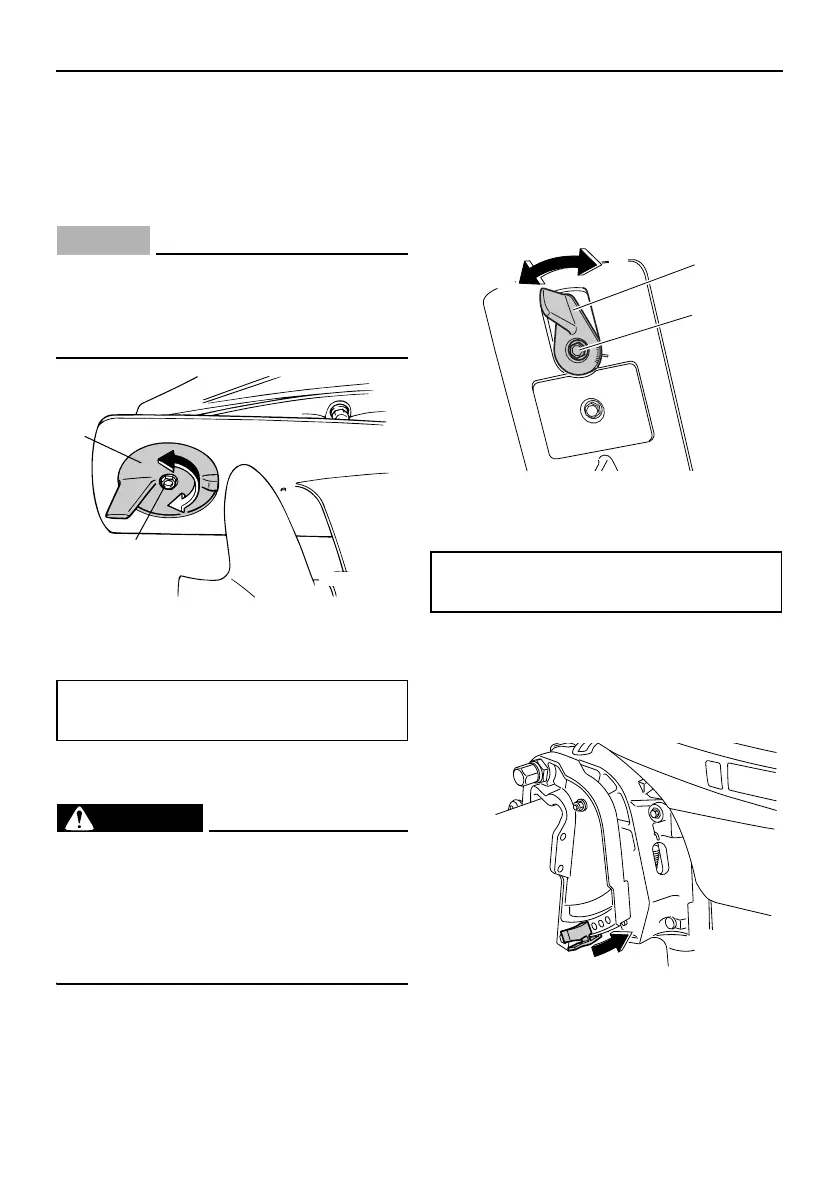

Trim tab
WARNING
EWM00840
An improperly adjusted trim tab could
cause difficult steering. Always test run
after the trim tab has been installed or re-
placed to be sure steering is correct. Be
sure you have tightened the bolt after ad-
justing the trim tab.
The trim tab should be adjusted so that the
steering control can be turned to either the
right or left by applying the same amount of
force.
If the boat tends to veer to the left (port side),
turn the trim tab rear end to the port side “A”
in the figure.
If the boat tends to veer to the right (star-
board side), turn the trim tab end to the star-
board side “B” in the figure.
EMU26262
Trim rod (tilt pin)
The position of the trim rod determines the
minimum trim angle of the outboard motor in
relation to the transom.
EMU30440
Tilt lock mechanism
The tilt lock mechanism is used to prevent
the outboard motor from lifting out of the wa-
1. Trim tab
2. Bolt
Bolt tightening torque:
18.0 Nm (1.8 kgf-m, 13 ft-lb)
ZMU02822
1
2
A
B
1. Trim tab
2. Bolt
Bolt tightening torque:
8.0 Nm (0.8 kgf-m, 5.8 ft-lb)
1
2
B
A
ZMU06498
ZMU06536
