Yamaha FT8D - Page 34

2-3
GB
1

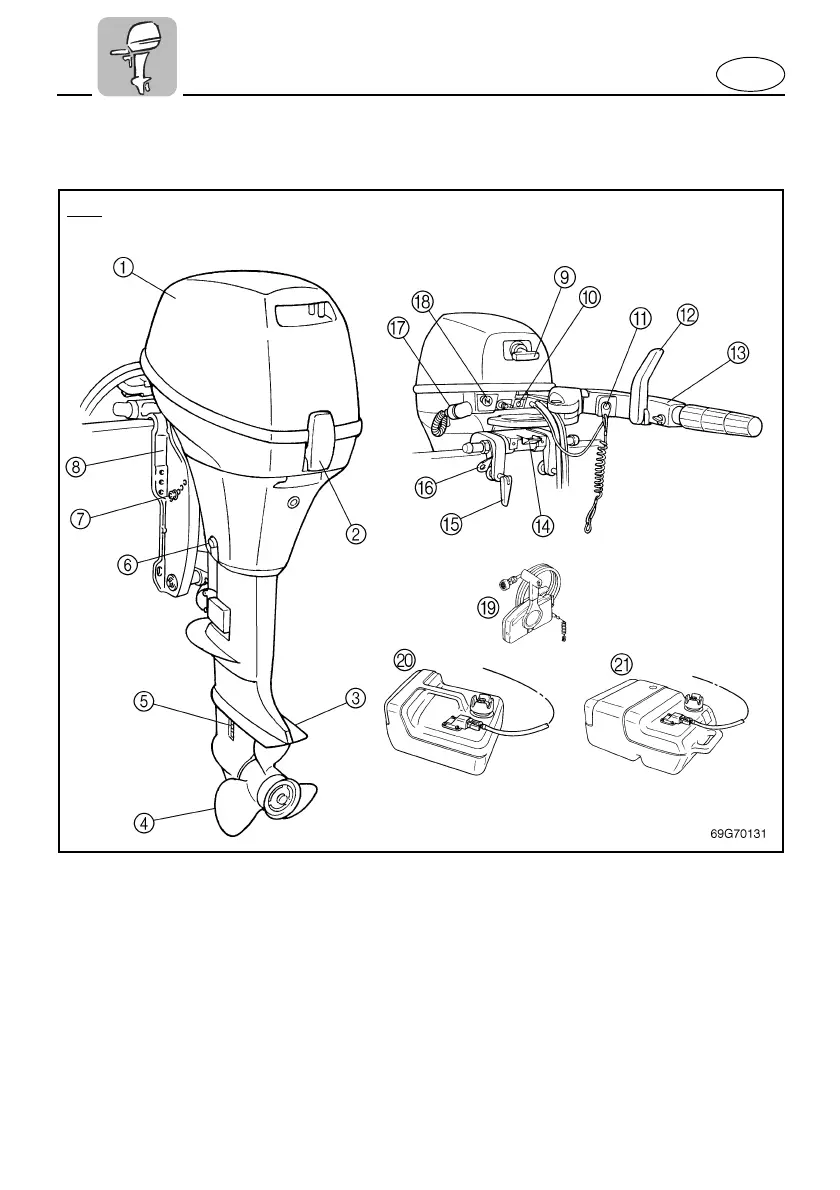

Top cowling
2
Top cowling lock lever
3
Anti-cavitation plate
4
Propeller
5
Cooling water inlet
6
Oil drain bolt
7
Trim angle adjusting rod
8
Clamp bracket
9
Recoil starter handle
0
Warning indicator
*
A
Engine stop lanyard switch/Engine stop button
*
B
Gear shift lever
*
C
Tiller handle
*
D
Tilt lock lever
E
Clamp screw
F
Rope attachment
G
Flushing device
H
Choke knob
*
I
Remote control box
*
J
Fuel tank
*
K
Fuel tank (Emission contorol model)
* May not be exactly as shown; also may not be in-
cluded as standard equipment on all models.
