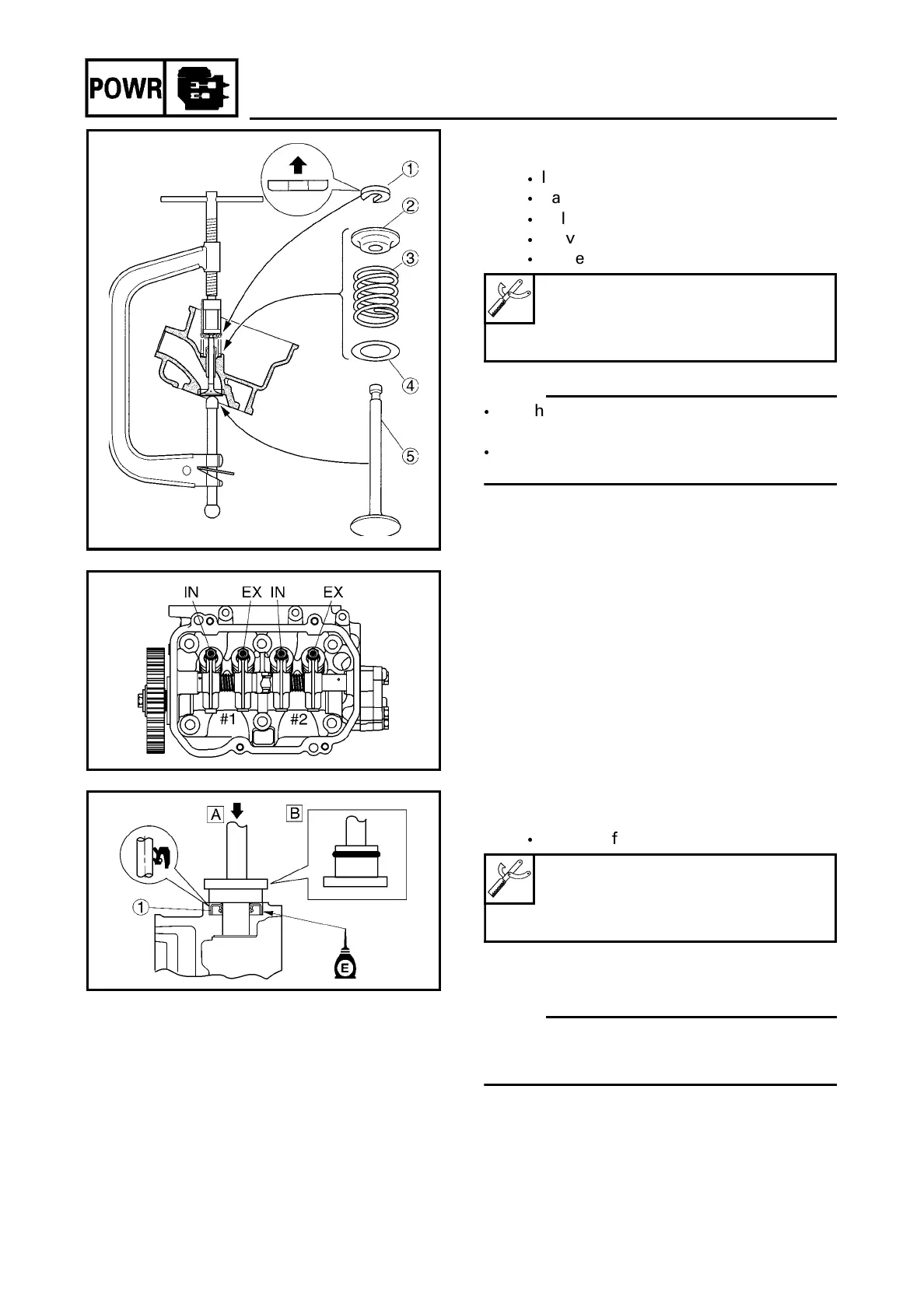

CAMSHAFT AND VALVES
INSTALLING THE VALVE
Install:
Intake valve or exhaust valve
5
Valve spring seat
4
Valve spring
3
Valve spring retainer
2
Valve spring lock
1
NOTE:
Set the attachment on to the center of the
spring retainer.
Do not overtighten the valve spring
compressor.
INSTALLING THE CAMSHAFT OIL SEAL
Install:
Cam shaft oil seal
1
A
For USA and Canada
B
Except for USA and Canada
NOTE:
Press fit the oil seal to the stepped portion
of the cylinder head and check that it is not
at an angle.
Valve spring compressor:
YM-01253/90890-04019
Attachment:
YM-04108/90890-04108
Driver rod:
YM-06229/90890-06652
Attachment:
YB-06197/90890-06653
