5-5
MANUAL STARTER

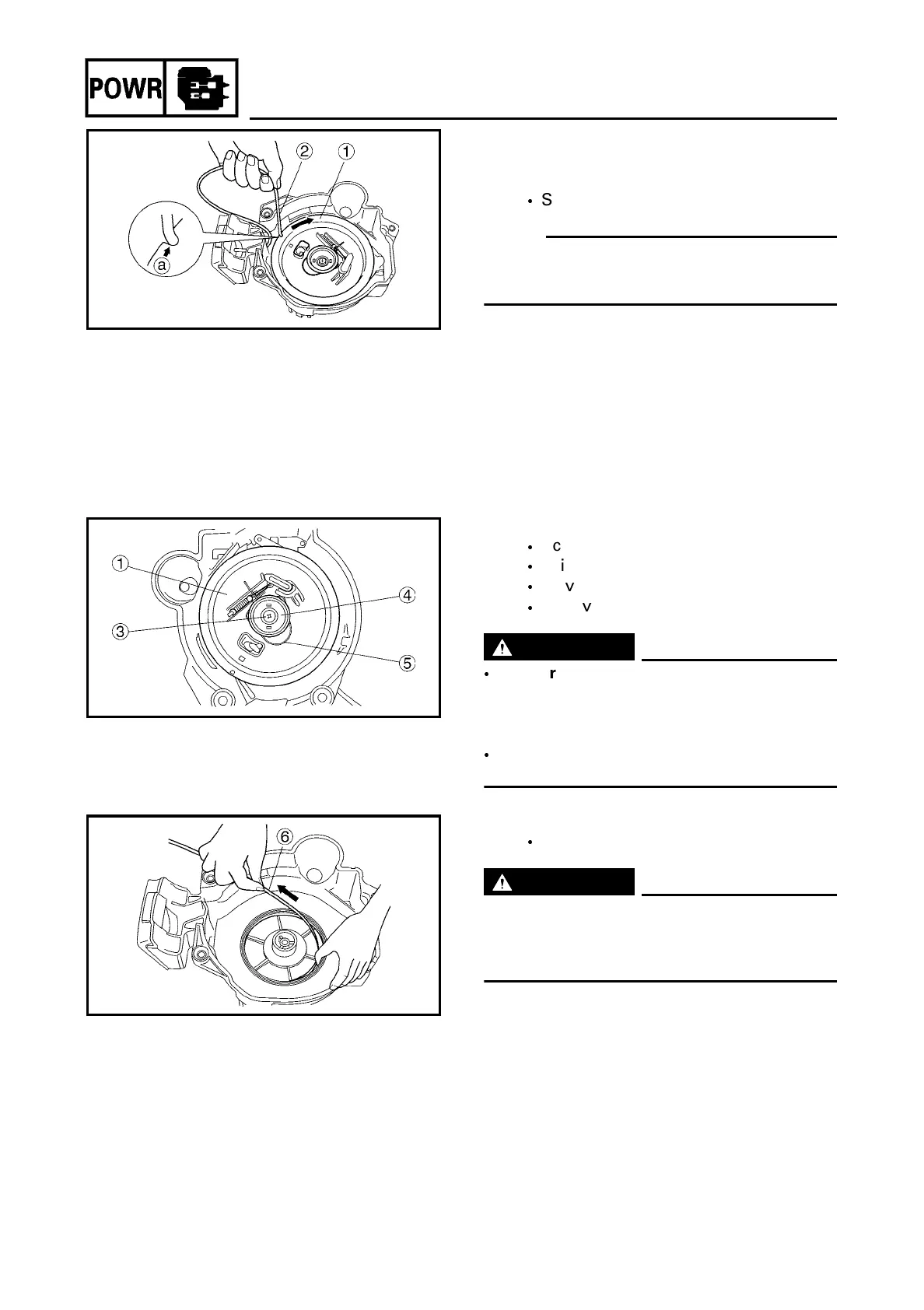

DISASSEMBLING THE MANUAL
STARTER
1. Rotate:
Sheave drum
1
NOTE:
Before removing the drive plate and drive
spring, turn the sheave drum to make the
starter spring inside the sleeve drum free.
Rotating steps:
(1)Turn the sheave drum
1
so that the
cutaway
a
on the outer surface of the
sheave drum faces toward the starter
handle.
(2)Pass the starter wire
2
through the
cutaway
a
.
(3)Turn the sheave drum
1
clockwise
until the starter spring is free.
2. Remove:
Screw
3
Drive plate
4
Drive spring
5
Sheave drum
1
WARNING
When removing the sheave drum, be
sure to turn the sheave drum upside
down to prevent the starter spring from
popping up at you.
Do not leave the sheave drum removed.
The starter spring may pop out.
3. Remove:
Starter spring
6
WARNING
Be careful so that the starter spring does
not pop out when removing it.
Remove it by allowing it out one turn of
the winding each time.
To Next Page
