Yamaha HTR-5840 Service Manual

ABCDEFGH I J
1
2
3
4
5
6
7
RX-V557/HTR-5850/DSP-AX557
RX-V457/HTR-5840/DSP-AX457
59

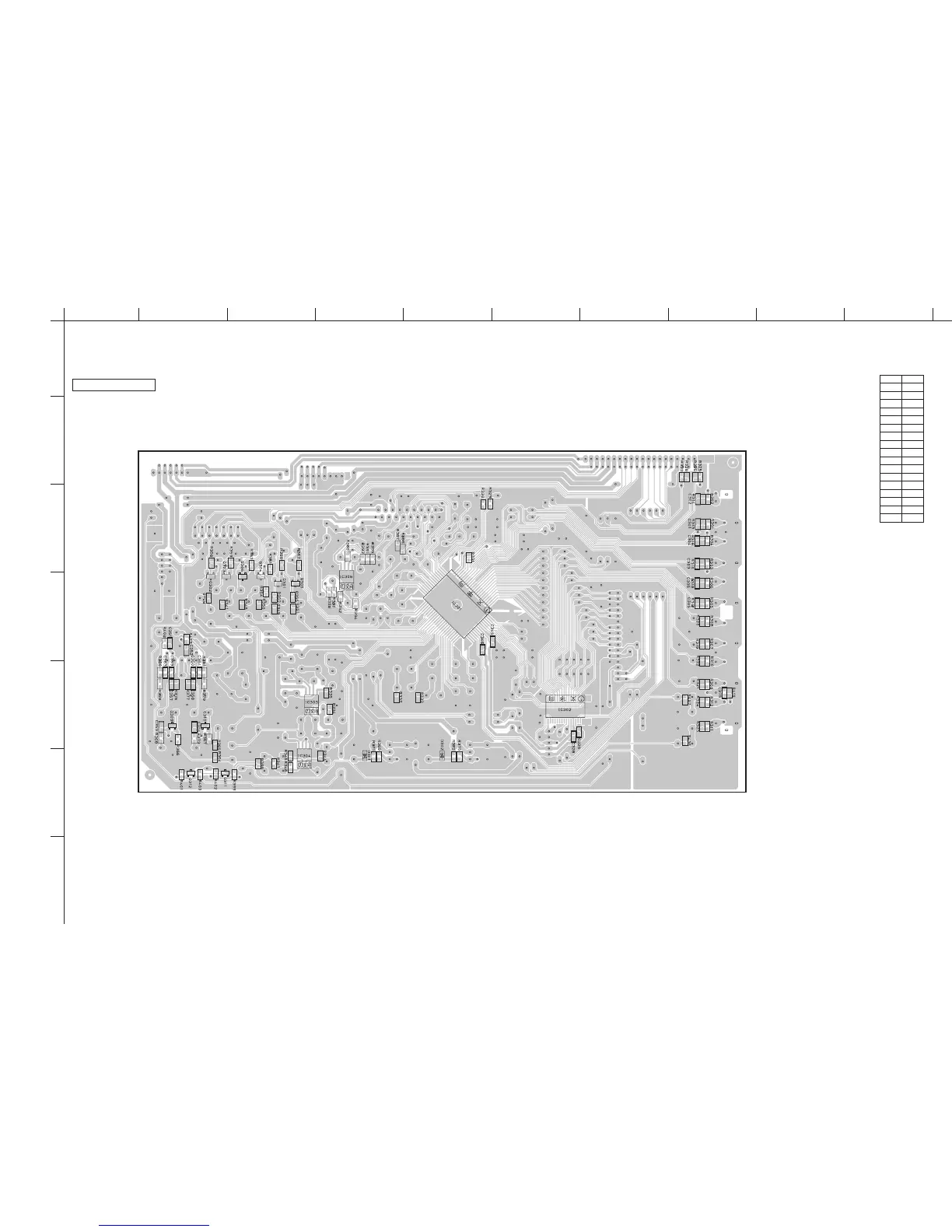

■ PRINTED CIRCUIT BOARD (Foil side)
FUNCTION P.C.B. (Side B) Lead Free Solder Used
24
25
40
41
64 65
80
1
3217
16 1
85
4
1
Ref. No. Location
D301 D6
D302 E6
IC301 E4
IC302 F5
IC303 C5
IC304 C6
IC306 D4
Q301 C4
Q302 B4
Q303 B4
Q304 C4
Q305 C4
Q306 C4
Q309 B5
Q310 B5
Q311 B6
Q312 B6
• Semiconductor Location
