Yamaha IPA8200 - Page 32

to AMP (G)
CN1100
to AMP (E)
CN1100
to AMP (E)
CN1101
to AMP (G)
CN1101
to REAR
CN52
to INPUT POWER
CN985
to CONNECTOR
CN15
to FRONT
CN103
to AMP (F)
CN1100
to AMP (F)
CN1101
to AMP (H)
CN1100
to AMP (H)
CN1101
to MOTHER A-D
CN19
to REAR
CN58
A'
A
IPA8200
32

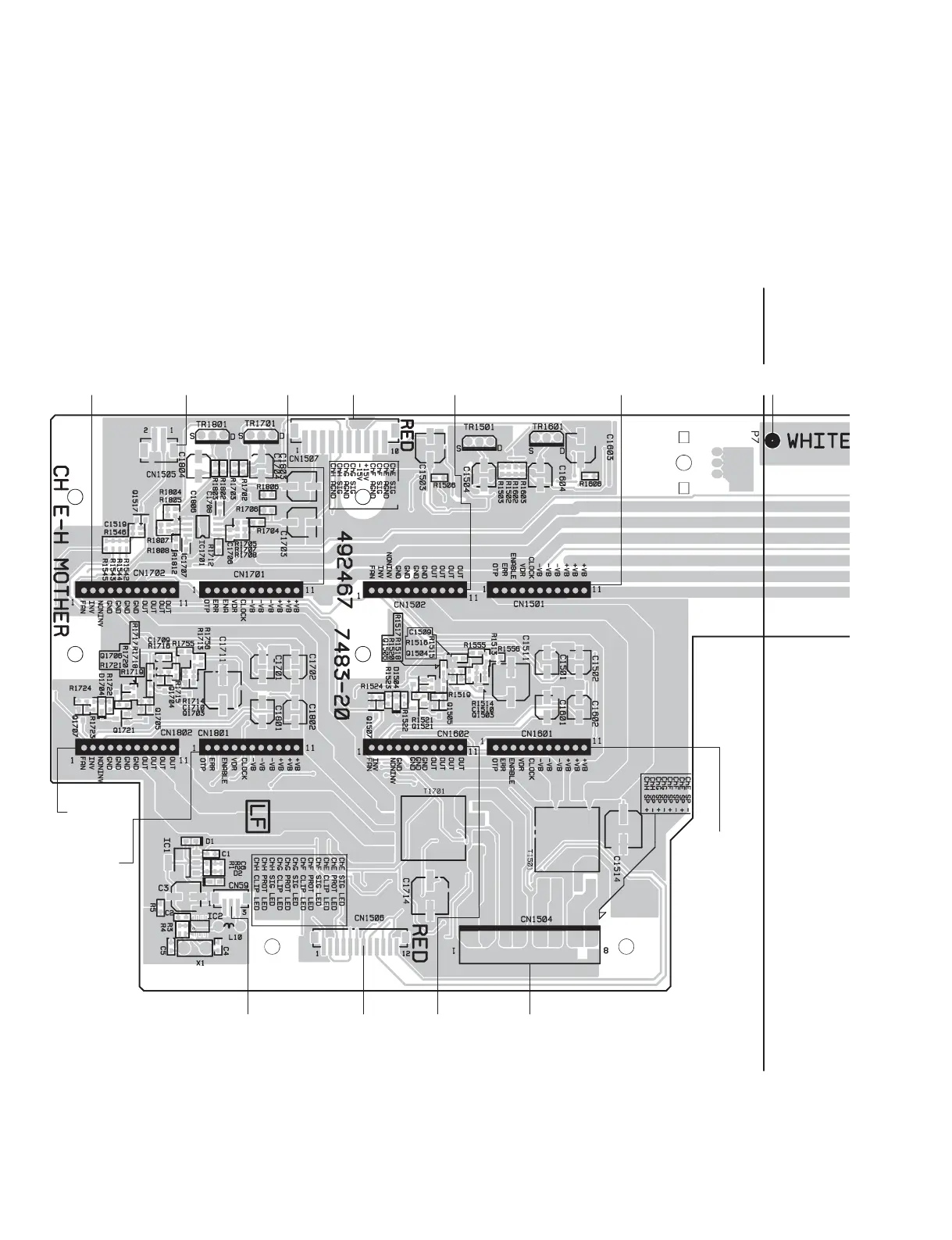

• MOTHER E-H Circuit Board
Component side
（部品側）
492467
