Yamaha IPA8200 - Page 37

P
OWER (C-D)
CN901
to POWER SWITCH RED (LEFT), BLK (LEFT)
to POWER SWITCH YEL (RIGHT), WHT (RIGHT)
to POWER (C-D)
CN902
to MOTHER E-H
CN1505
to MOTHER A-D
CN1105
to REAR
CN16
to POWER (G-H)
CN903
to POWER (G-H)
CN901
AC INLET
G-H)
A'
A
IPA8200
37

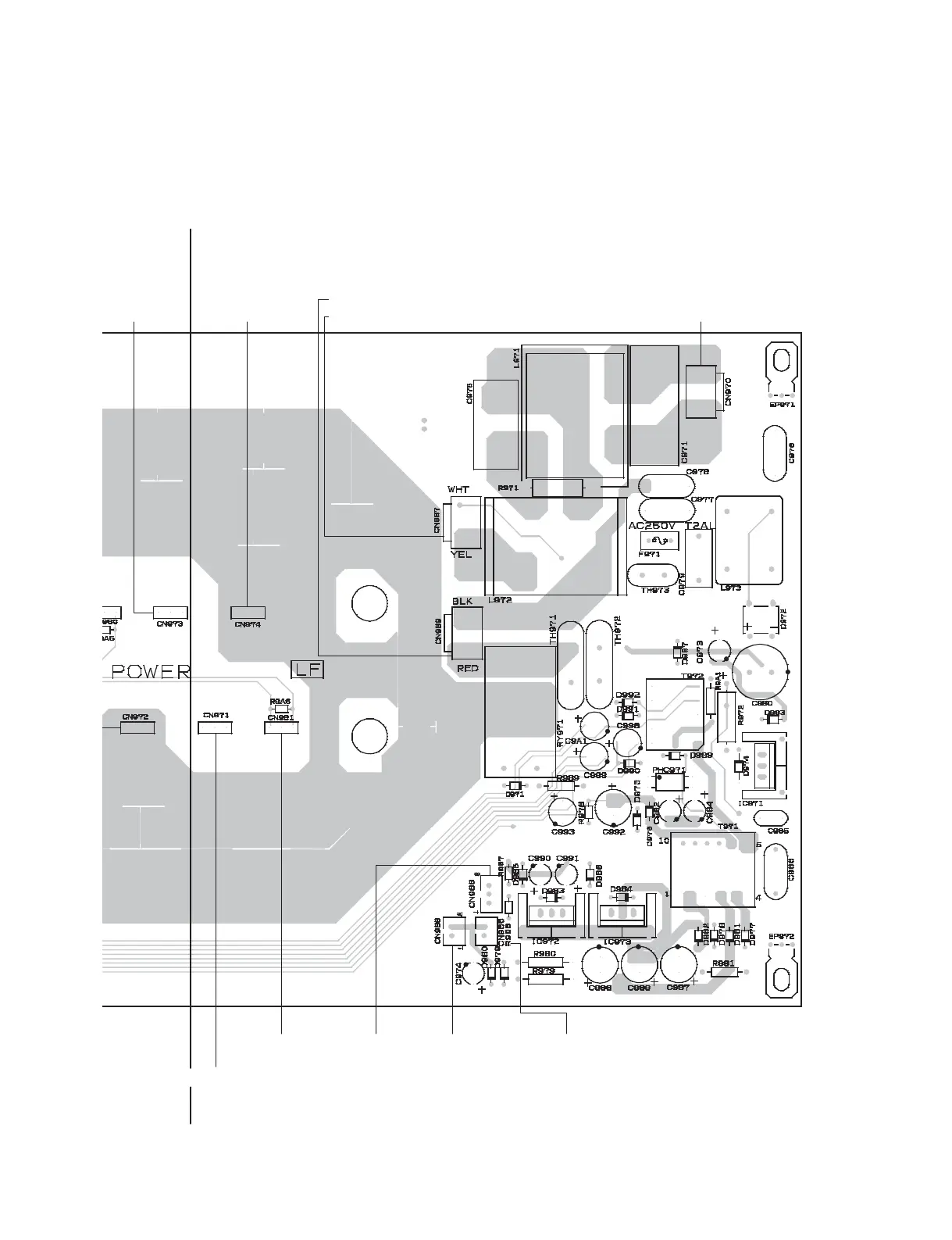

• INPUT POWER Circuit Board
Component side
（部品側）
492469
