to MOTHER A-D CN1103, CN1303
to MOTHER E-H CN1503, CN1703
A'
A
B'
B
IPA8200
41

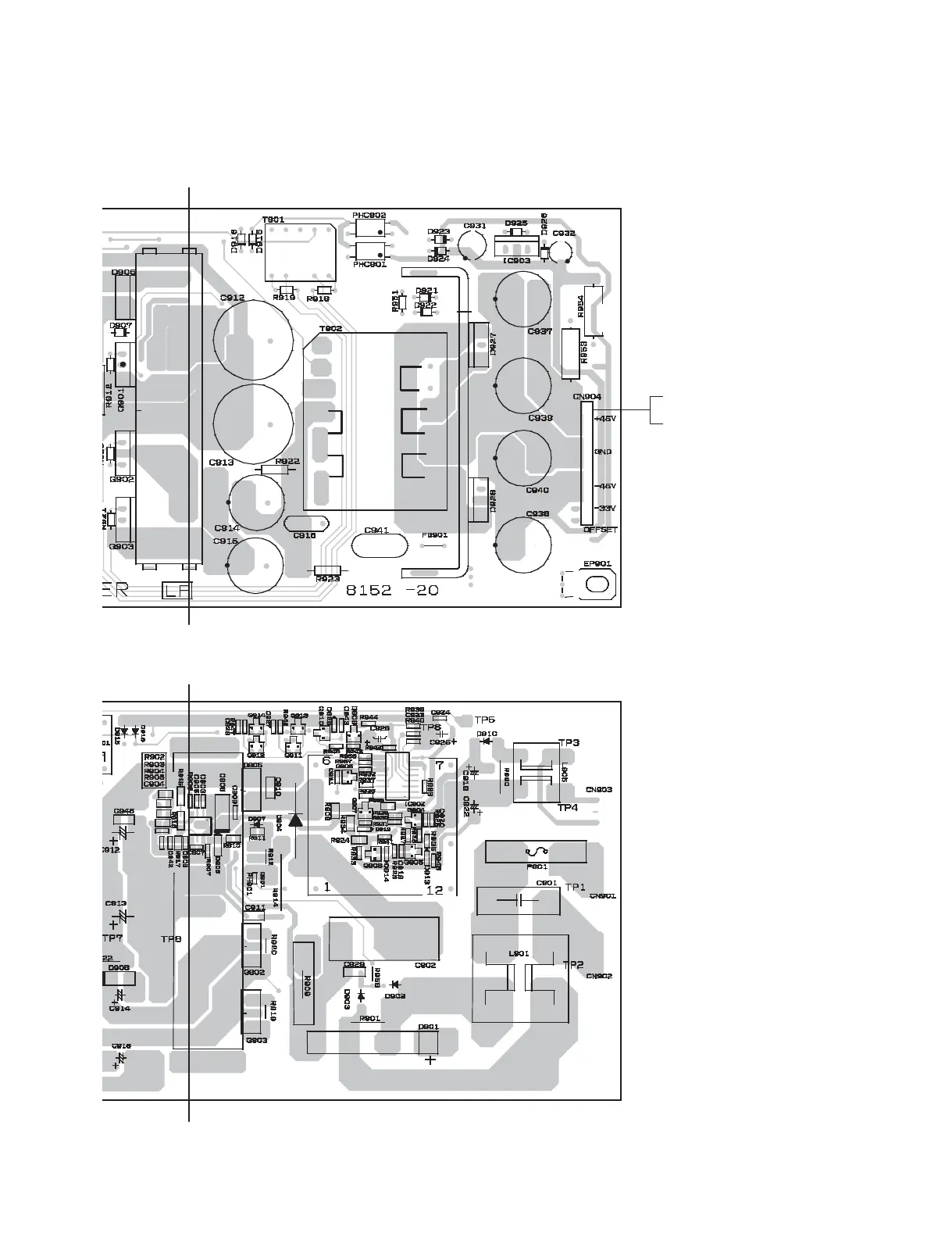

• POWER Circuit Board
Component side
（部品側）
Pattern side
（パターン側）
492468
