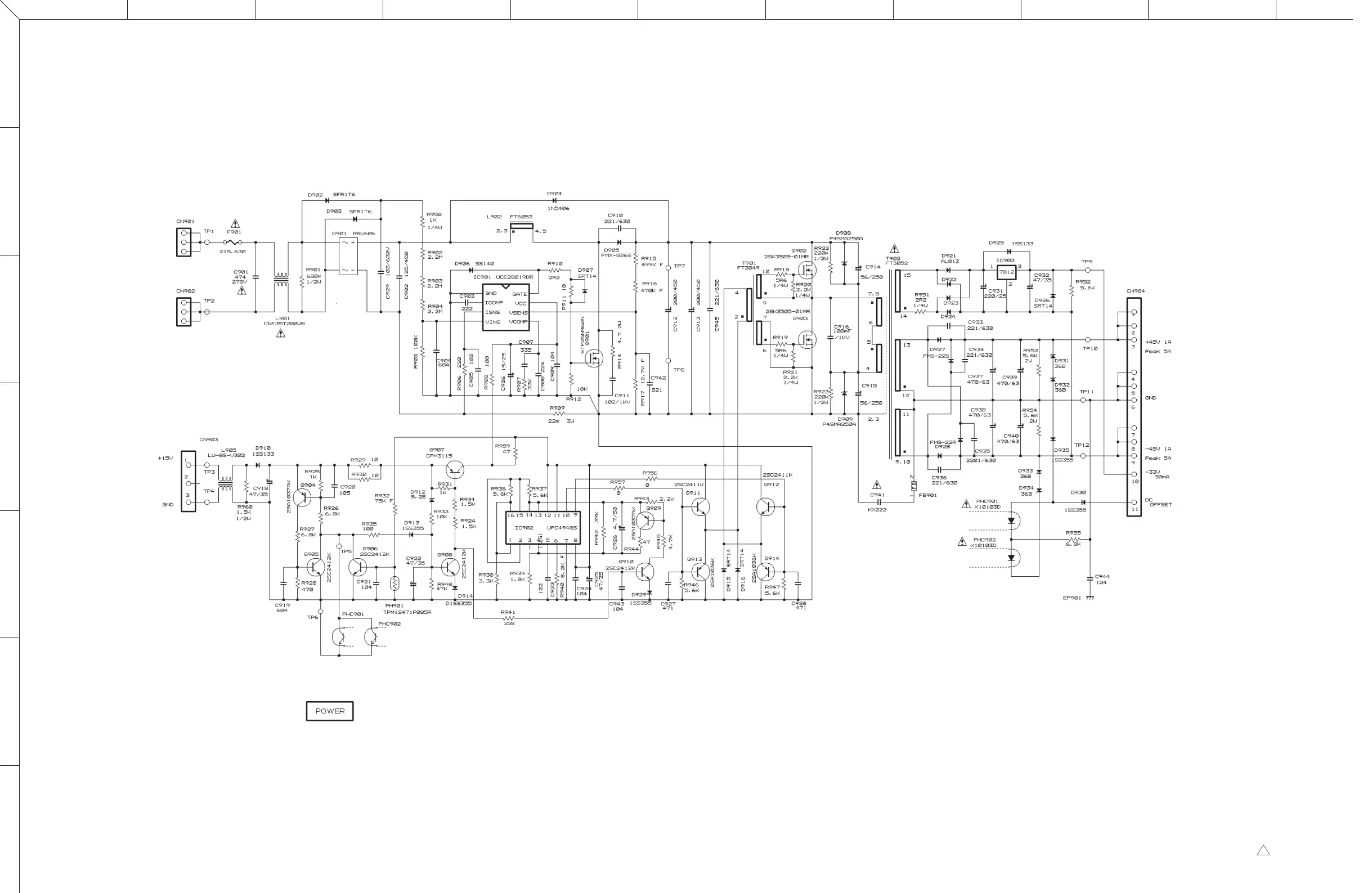

Yamaha IPA8200 - Page 95

POWER (A-B)
POWER (C-D)
POWER (E-F)
POWER (G-H)
0
S5020144-2
to INPUT POWER_CN977
<P. 17: E2>
to INPUT POWER_CN973
<P. 17: D2>
to INPUT POWER_CN971
<P. 17: D2>
to INPUT POWER_CN975
<P. 17: C2>
to INPUT POWER_CN978
<P. 17: E3>
to INPUT POWER_CN974
<P. 17: D3>
to INPUT POWER_CN972
<P. 17: D3>
to INPUT POWER_CN976
<P. 17: C3>
to INPUT POWER_CN979
<P. 17: E3>
to MOTHER A-D_CN1103
<P. 12: B2>
to MOTHER A-D_CN1303
<P. 13: I2>
to MOTHER E-H_CN1703
<P. 15: I2>
to MOTHER E-H_CN1503
<P. 14: B2>
to INPUT POWER_CN980
<P. 17: D3>
to INPUT POWER_CN981
<P. 17: D3>
to INPUT POWER_CN982
<P. 17: C3>
ABCDEFGH I J
1
2
3
4
5
6
7
IPA8200
18
POWER
