HANDLEBAR
3-4

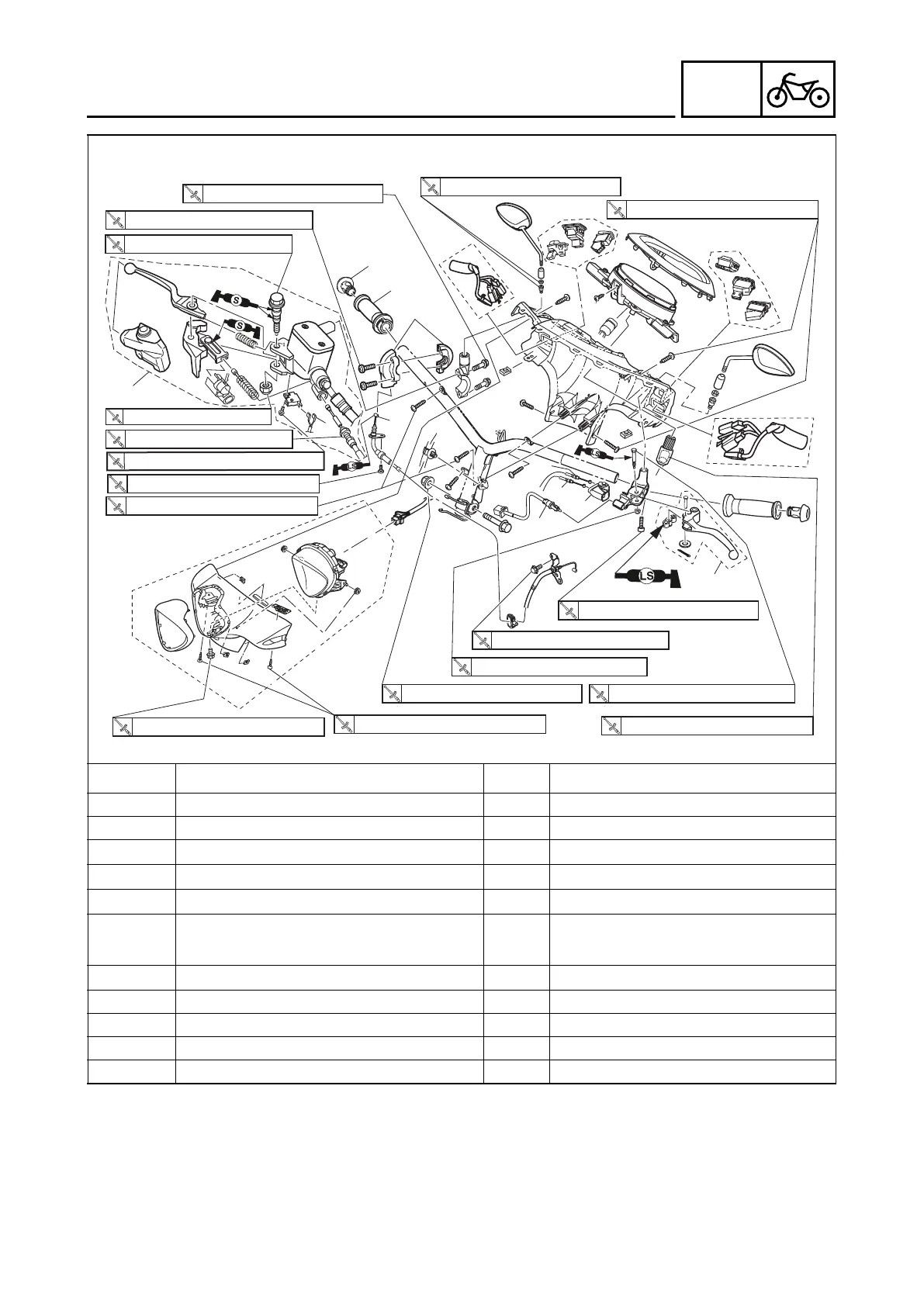

Removing the handlebar (For disc model)
Order Job/Parts to remove Q’ty Remarks
16 End Grip (right) 1
17 Throttle cable housing 1
18 Throttle cable
1
Disconnect.
19 Throttle grip
1
20 Front brake light switch lead 1 Disconnect.
21 Front brake master cylinder
1
Refer to “REMOVING THE FRONT BRAKE
MASTER CYLINDER” in base service man-
ual B7J-F8197-E0 on page 4-40.
22 Rubber cover
1
Disconnect.
23 Rear brake light switch 1 Disconnect.
24 Rear brake cable 1
25 UBS brake cable 1
26 Rear brake lever assembly 1
6 N·m (0.6 kgf·m, 4.4 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
53 N·m (5.3 kgf·m, 39 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
23 N·m (2.3 kgf·m, 17 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
7 7 5 2N·m (0. kgf·m, . lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
1.5 0 15 1.1N·m ( . kgf·m, lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
16
17
22
19
20
21
23
24
25
26
18
1.2 N·m (0.12 kgf·m, 0.88 lb·ft)
B7JF8197E1.book Page 4 Tuesday, June 29, 2021 2:28 PM
