Yamaha LCX125 User Manual

HANDLEBAR
3-5
CHAS

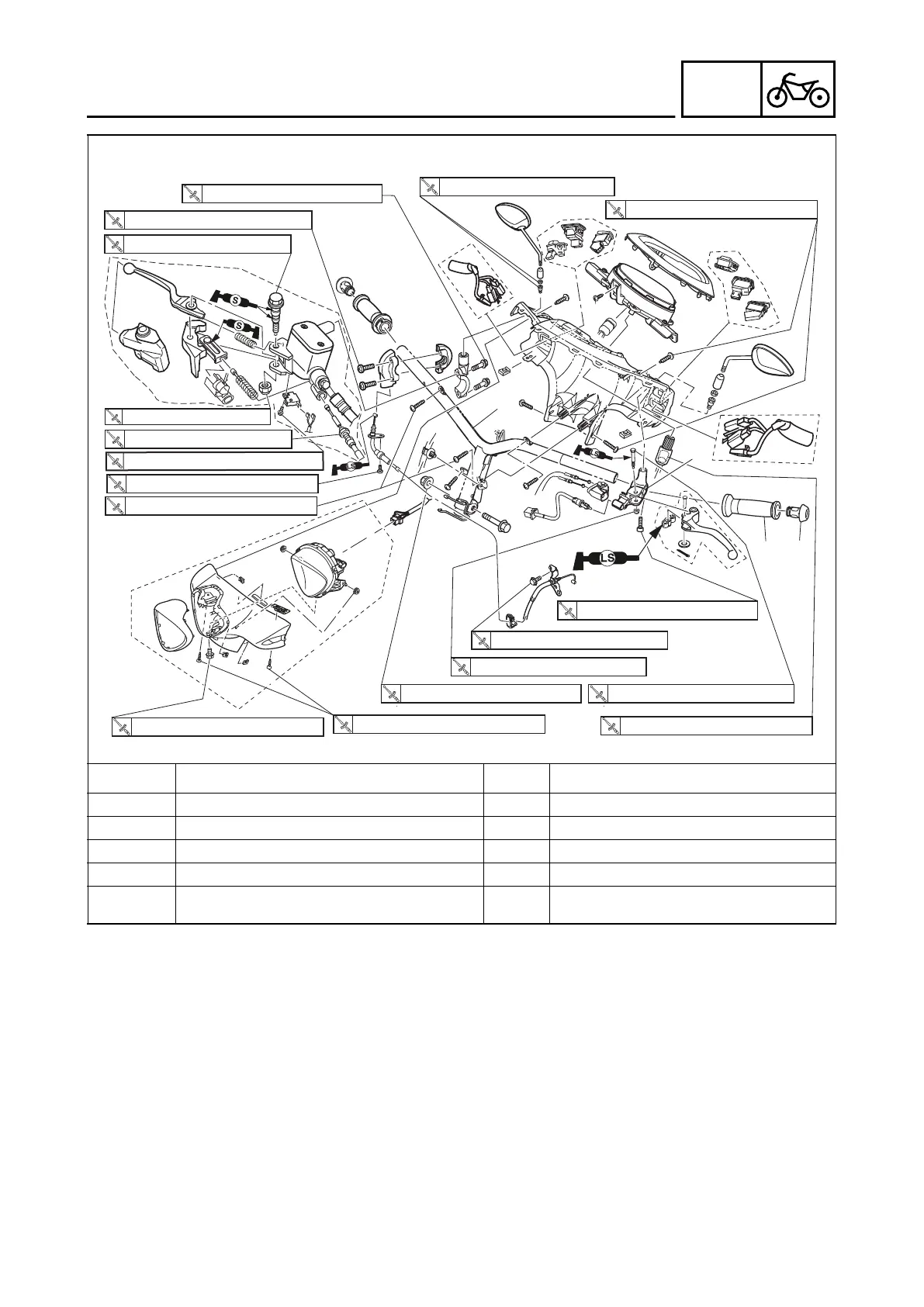

Removing the handlebar (For disc model)
Order Job/Parts to remove Q’ty Remarks
27 Lever holder (left) 1
28 End grip (left) 1
29 Handle grip (left) 1
30 Handlebar 1
For installation, reverse the removal proce-
dure.
6 N·m (0.6 kgf·m, 4.4 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
53 N·m (5.3 kgf·m, 39 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
23 N·m (2.3 kgf·m, 17 lb·ft)
7 N·m (0.7 kgf·m, 5.2 lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
7 7 5 2N·m (0. kgf·m, . lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
1.5 0 15 1.1N·m ( . kgf·m, lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
27
29 28
30
1.2 N·m (0.12 kgf·m, 0.88 lb·ft)
