FRONT FORK

3-6

CHAS

FRONT FORK

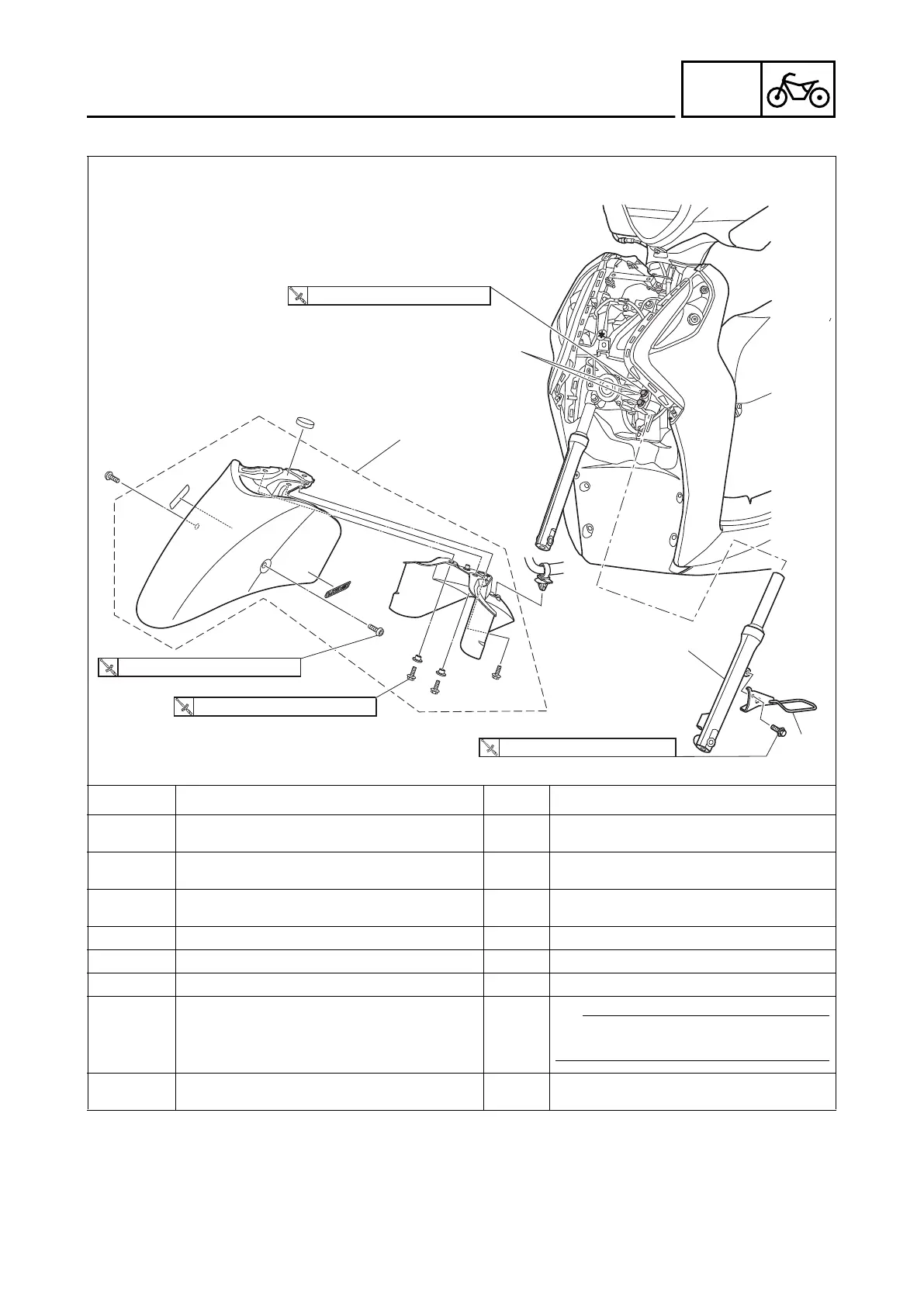

Removing the front fork legs

Order Job/Parts to remove Q’ty Remarks

Front upper cover

Refer to “GENERAL CHASSIS” on page

3-1.

Front brake hose holder and brake caliper 1

Refer to “FRONT BRAKE” in base service

manual B7J-F8197-E0 on page 4-35.

Front wheel

Refer to “FRONT WHEEL” in base service

manual B7J-F8197-E0 on page 4-19.

1 Cable holder 1

2 Lower bracket pinch bolts 2 Loosen.

3 Front fork 1

4 Front fender 1

TIP

Before removing front fender, remove horn

lead clamp from front fender.

For installation, reverse the removal proce-

dure.

12 N·m (1.2 kgf·m, 8.9 lb·ft)

6 N·m (6.0 kgf·m, 4.4 lb·ft)

53 N·m (5.3 kgf·m, 39 lb·ft)

7 N·m (0.7 kgf·m, 5.2 lb·ft)
