HANDLEBAR
3-3
CHAS
HANDLEBAR

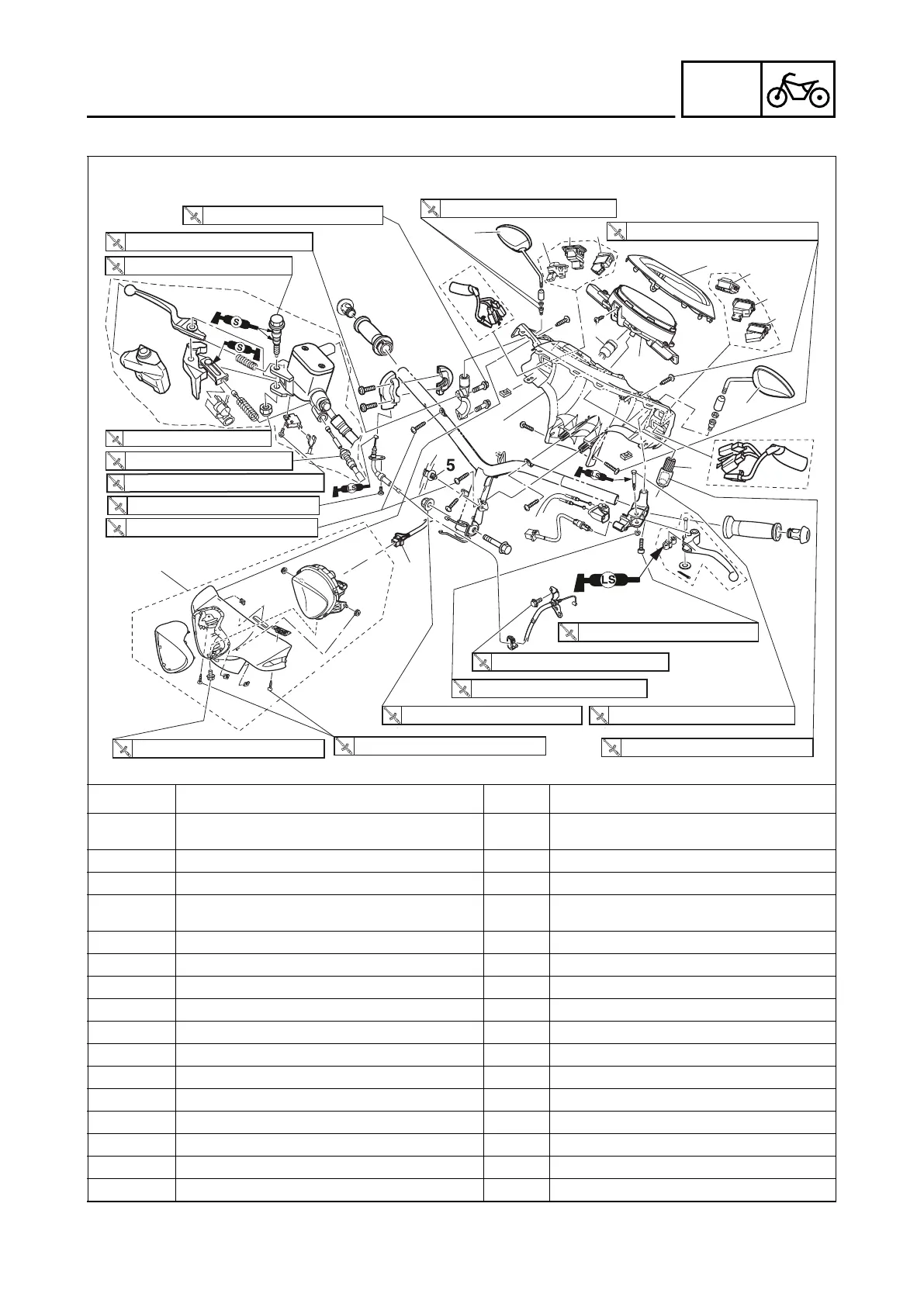

Removing the handlebar (For disc model)
Order Job/Parts to remove Q’ty Remarks
Front upper cover
Refer to “GENERAL CHASSIS” on page
3-1.
1 Rear view mirror assy (left & right) 1/1
2 Headlight coupler 1 Disconnect.
3
Handlebar front cover assembly/headlight
assembly
1
4 Speedometer cable assy 1 Disconnect.
5 Clamp (Wire harness) 1 Disconnect.
6 Meter couplers 1 Disconnect.
7 Start switch coupler 1 Disconnect.
8 Headlight switch coupler 1 Disconnect.
9 Stop and start switch coupler 1 Disconnect.
10 Horn switch coupler 1 Disconnect.
11 Turn signal switch coupler 1 Disconnect.
12 Dimmer/pass switch coupler 1 Disconnect.
13 Meter assembly 1
14 Meter assembly cover 1
15 Handlebar rear cover assembly 1
6 N·m (0.6 kgf·m, 4.4 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
10 N·m (1.0 kgf·m, 7.4 lb·ft)
53 N·m (5.3 kgf·m, 39 lb·ft)
2.5 N·m (0.25 kgf·m, 1.8 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
23 N·m (2.3 kgf·m, 17 lb·ft)
4
10
11
12
9
1
1
8
7
6
13
14
15
3
2
7 N·m (0.7 kgf·m, 5.2 lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
7 7 5 2N·m (0. kgf·m, . lb·ft)
1.4 N·m (0.14 kgf·m, 1.0 lb·ft)
1.5 0 15 1.1N·m ( . kgf·m, lb·ft)
6 N·m (0.6 kgf·m, 4.4 lb·ft)
1.2 N·m (0.12 kgf·m, 0.88 lb·ft)
