Yamaha MT 10 2016 User Manual

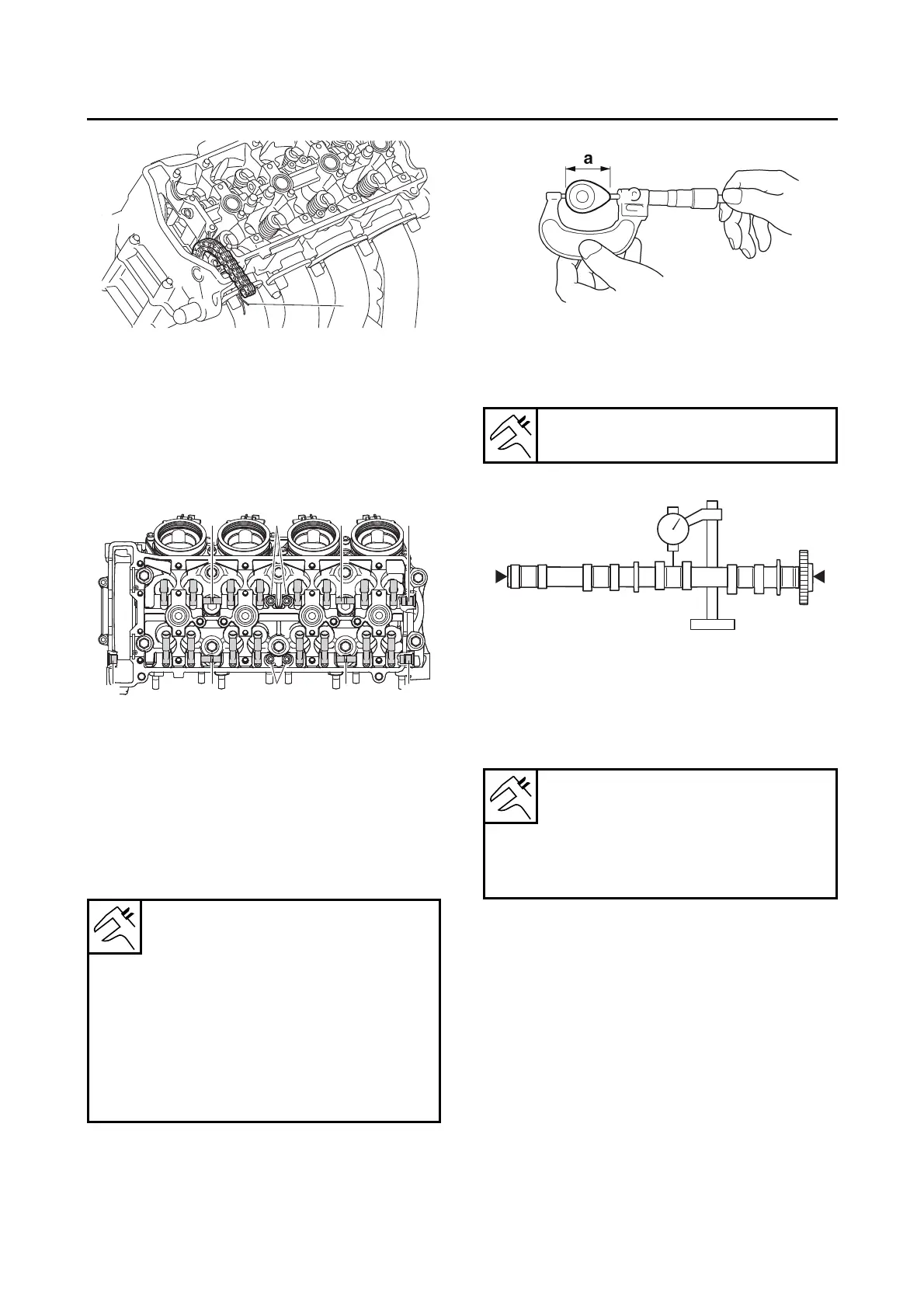

CAMSHAFTS
5-14
EAS31655
REMOVING THE ROCKER ARMS AND
ROCKER ARM SHAFTS
1. Remove:
• Rocker arm shaft bolt “1”
• Straight plug “2”
• Rocker arm shaft “3”
• Rocker arm
EAS30257
CHECKING THE CAMSHAFTS
1. Check:
• Camshaft lobes
Blue discoloration/pitting/scratches  Re-
place the camshaft.
2. Measure:
• Camshaft lobe dimensions “a”
Out of specification  Replace the camshaft.
3. Measure:
• Camshaft runout
Out of specification  Replace.
4. Measure:
• Camshaft-journal-to-camshaft-cap clearance
Out of specification  Measure the camshaft
journal diameter.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
a. Install the camshaft into the cylinder head
(without the camshaft caps).
b. Position strip of Plastigauge® “1” onto the
camshaft journal as shown.
Camshaft lobe dimensions
Lobe height (Intake)
33.902–34.002 mm (1.3347–
1.3387 in)
Limit
33.802 mm (1.3308 in)
Lobe height (Exhaust)
33.637–33.737 mm (1.3243–
1.3282 in)
Limit
33.537 mm (1.3204 in)
3
33122
3312
Camshaft runout limit
0.030 mm (0.0012 in)
Camshaft-journal-to-camshaft-
cap clearance
0.028–0.062 mm (0.0011–0.0024
in)
Limit
0.080 mm (0.0032 in)

Yamaha MT 10 2016 Specifications

General

Displacement	998 cc
Bore x Stroke	79.0 mm x 50.9 mm
Maximum Power	118.0 kW (160.4PS) @ 11, 500 rpm
Fuel System	Fuel Injection
Starter System	Electric
Transmission	6-speed
Final Transmission	Chain
Front Tire	120/70 ZR17M/C (58W)
Rear Tire	190/55 ZR17M/C (75W)
Length	2, 095 mm
Width	800 mm
Height	1, 110 mm
Seat Height	825 mm
Wheelbase	1, 400 mm
Minimum Ground Clearance	135 mm
Wet Weight	210 kg
Fuel Tank Capacity	17 liters
Engine Type	Liquid-cooled, 4-stroke, DOHC, inline 4-cylinder
Compression Ratio	12.0:1
Torque	111 Nm @ 9, 000 rpm
Front Suspension	Telescopic forks, Ø 43 mm
Rear Suspension	Link-type suspension
Front Brake	Dual 320mm hydraulic disc, ABS
Rear Brake	Hydraulic disc, 220 mm
Frame	Aluminum Deltabox
