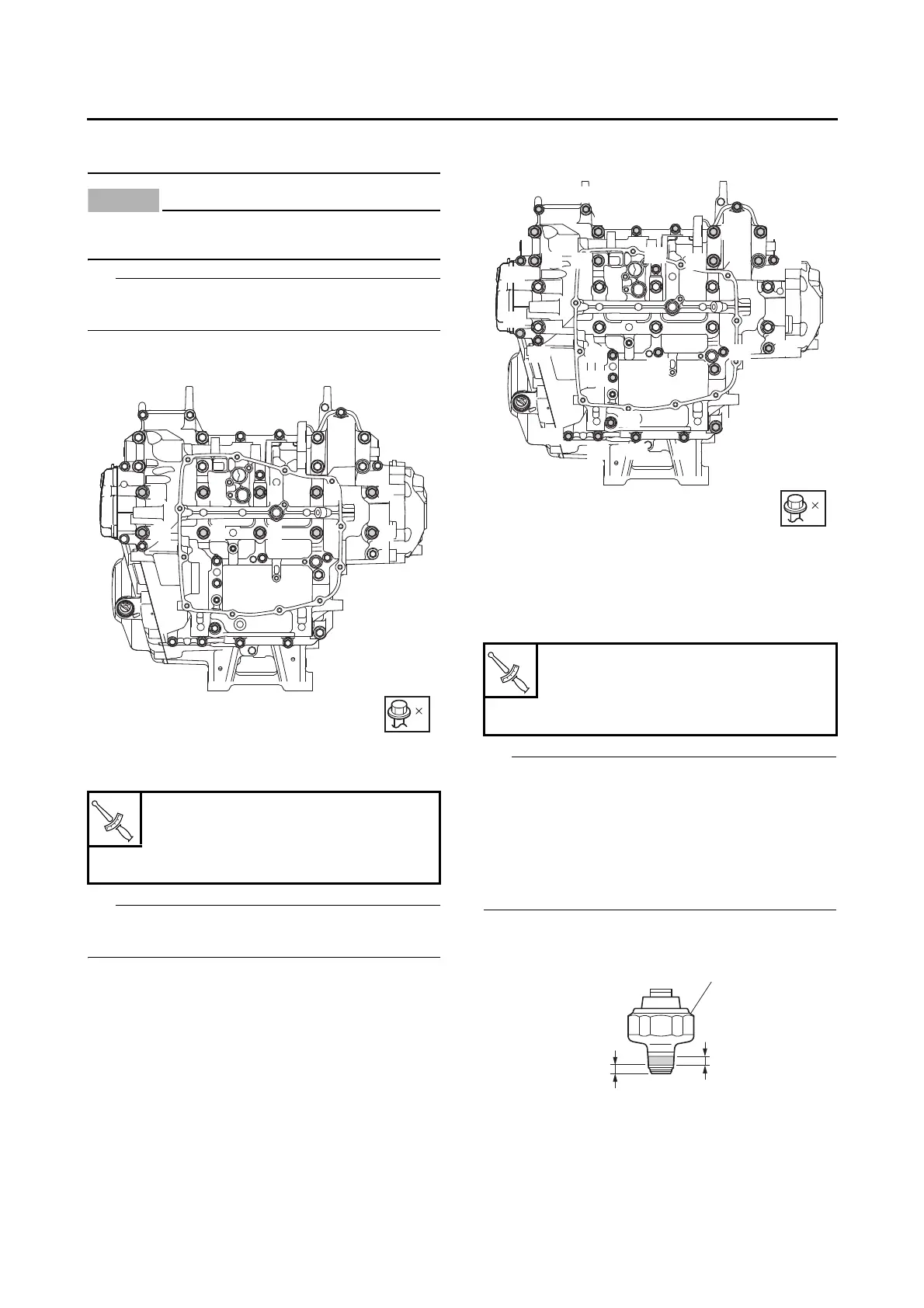

CRANKCASE
5-67
tighten it. Instead, replace the bolt with a new
one and perform the procedure again.
NOTICE
ECA20890
Do not use a torque wrench to tighten the
bolt to the specified angle.
TIP
Tighten the bolts in the tightening sequence cast
on the crankcase.
8. Tighten:
• Crankcase bolts “11”–“40”
TIP
Tighten the bolts “11”–“18” in the tightening se-
quence cast on the crankcase.
EAS31071
INSTALLING THE OIL PRESSURE SWITCH
1. Install:
• Oil pressure switch “1”
• Oil pressure switch lead “2”
TIP
• Apply Three bond No.1215B® to the threads
“a” of the oil pressure switch. However, do not
apply Three bond No.1215B® to the portion “b”
of the oil pressure switch.
• Install the oil pressure switch lead so that it is
routed within the range shown in the illustra-
tion.
Crankcase bolts “11”–“20”
24 N·m (2.4 kgf·m, 17 lb·ft)
Crankcase bolts “21”–“40”
10 N·m (1.0 kgf·m, 7.2 lb·ft)
10
6
8
7
5
2
4
3
1
10
9
T
R
.
.
Oil pressure switch
13 N·m (1.3 kgf·m, 9.4 lb·ft)
Oil pressure switch lead bolt
1.8 N·m (0.18 kgf·m, 1.3 lb·ft)
30
22
32
40
12
23
33
13
24
34
14
25
35
15
26
36
16
27
37
17
28
38
18
29
39
19
21
31
11
20
30
T
R
.
.
a
b
1
