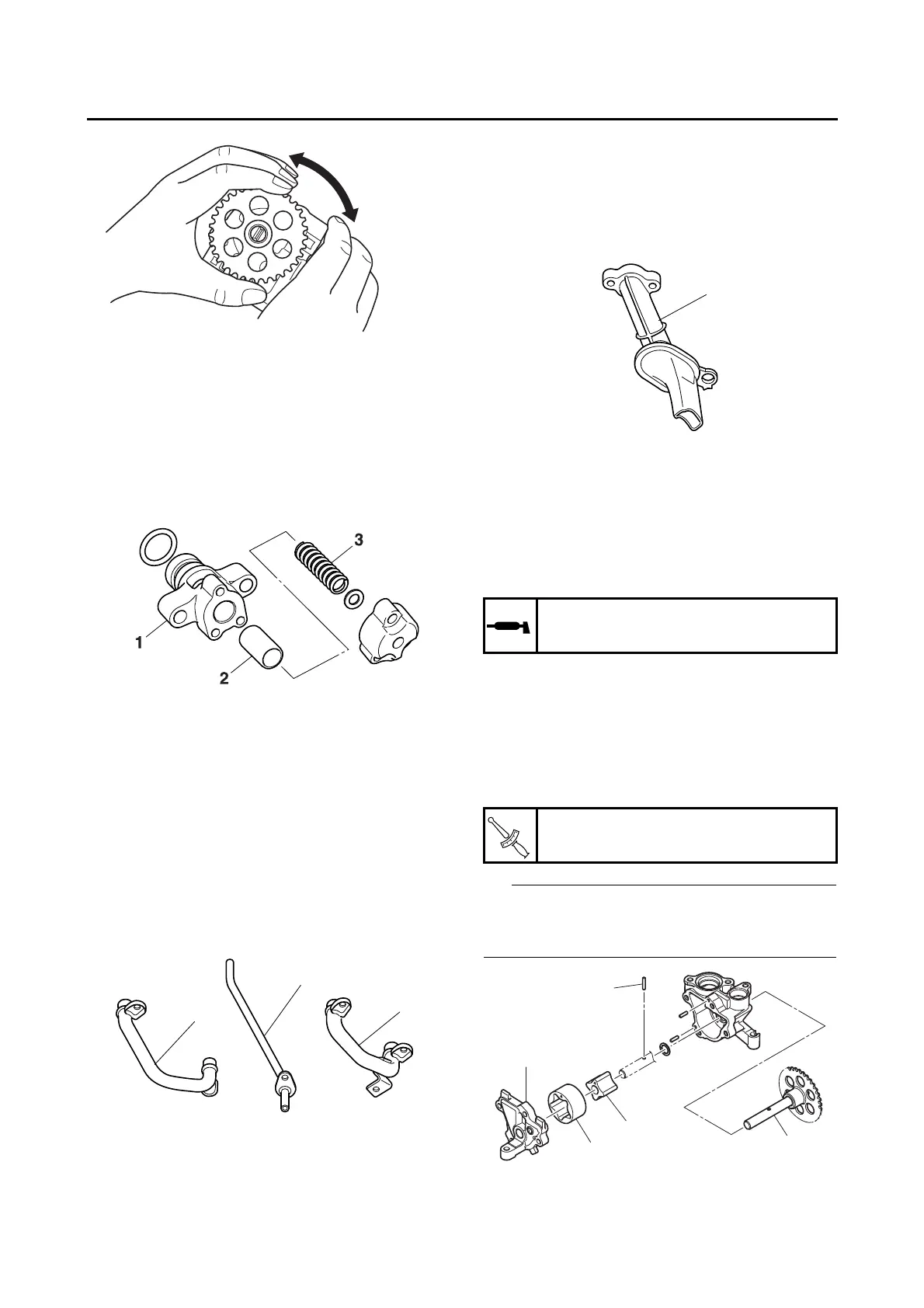

CHECKING THE RELIEF VALVE
1. Check:
• Relief valve body “1”
• Relief valve “2”
• Spring “3”
• Damage/wear  Replace the defective
part(s).
EAS30339
CHECKING THE OIL DELIVERY PIPES
The following procedure applies to all of the oil
delivery pipes.
1. Check:
• Oil delivery pipe 1 “1”
• Oil delivery pipe 2 “2”
• Oil pipe 1 “3”
Damage  Replace.
Obstruction  Wash and blow out with com-
pressed air.
EAS30340
CHECKING THE OIL STRAINER
1. Check:
• Oil strainer “1”
Damage  Replace.
Contaminants  Clean with solvent.
EAS30342
ASSEMBLING THE OIL PUMP
1. Lubricate:
• Inner rotor
• Outer rotor
• Oil pump shaft
(with the recommended lubricant)
2. Install:
• Oil pump driven sprocket “1”
• Pin “2”
• Inner rotor “3”
• Outer rotor “4”
• Oil pump cover “5”
• Oil pump housing bolt
TIP
When installing the inner rotor, align the pin “2”
in the oil pump shaft with the groove in the inner
rotor “3”.
1
2
3
Recommended lubricant
Engine oil
Oil pump housing bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
