AIR INDUCTION SYSTEM
7-20
4. Check:
• Air cut-off valve
Cracks/damage  Replace.
5. Check:
• Air induction system solenoid
Refer to “CHECKING THE AIR INDUCTION
SYSTEM SOLENOID” on page 8-206.
EAS30489

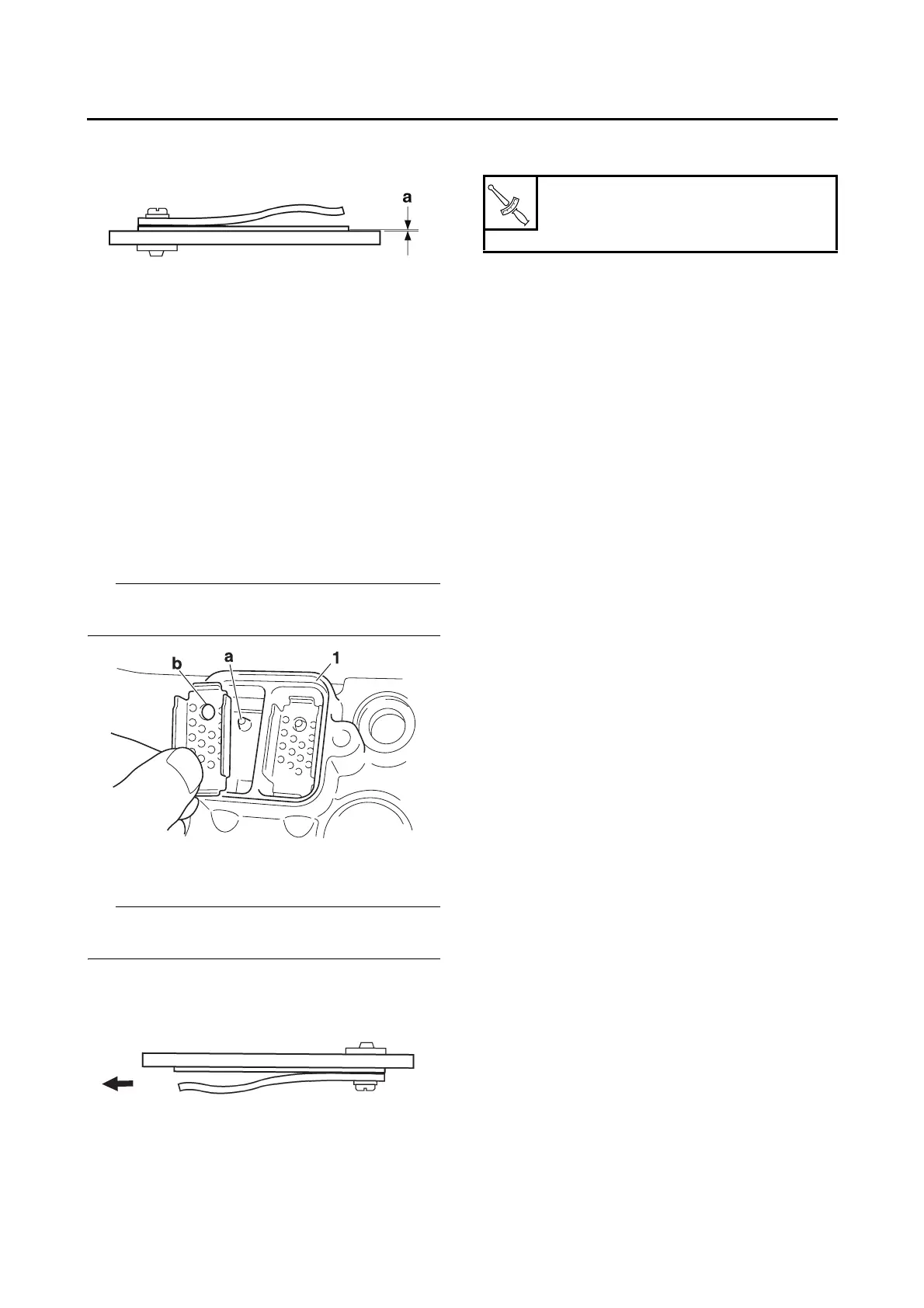

INSTALLING THE AIR INDUCTION SYSTEM
1. Install:
• Reed valve plate
TIP
Align the projection “a” on the cylinder head cov-
er “1” with the hole “b” in the reed valve plate.
2. Install:
• Reed valve assembly
TIP
Install the reed valve assembly so that the open
side turns to the exhaust side of the engine.
3. Install:
• Reed valve cover
A. Exhaust side
A
Reed valve cover bolt
10 N·m (1.0 kgf·m, 7.2 lb·ft)
LOCTITE®
T
R
.
.
