Instrument and control functions
4-9
4
setting is selected when the
shift indicator light flashes 4
times per second.
z Off setting: the shift indicator
light is deactivated. This set-
ting is selected when the shift
indicator light flashes once
every 2 seconds.
5. Push the “SELECT” button to con-
firm the setting. The control mode
changes to the shift indicator light
on r/min setting function.
To set the shift indicator light on r/min
The shift indicator light can be set be-
tween 7000 r/min and 13500 r/min.
From 7000 r/min to 12000 r/min, the in-
dicator light can be set in increments of
500 r/min. From 12000 r/min to 13500
r/min, the indicator light can be set in
increments of 200 r/min.
1. Push the “RESET” button to select
the desired engine speed for acti-
vating the shift indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift indicator light off r/min setting
function.
To set the shift indicator light off r/min
The shift indicator light can be set be-
tween 7000 r/min and 13500 r/min.
From 7000 r/min to 12000 r/min, the in-
dicator light can be set in increments of
500 r/min. From 12000 r/min to 13500
r/min, the indicator light can be set in
increments of 200 r/min.
Be sure to set the off r/min to a higher
engine speed than the on r/min setting,
otherwise the shift indicator light will
not come on.
1. Push the “RESET” button to select
the desired engine speed for de-
activating the shift indicator light.
2. Push the “SELECT” button to con-
firm the selected engine speed.
The control mode changes to the
shift indicator light brightness set-
ting function.
To adjust the shift indicator light bright-
ness
1. Push the “RESET” button to select
the desired shift indicator light
brightness level.
2. Push the “SELECT” button to con-
firm the selected brightness level
and exit the control mode.
EAU88000
Self-diagnosis device
This model is equipped with a self-di-
agnosis device for various electrical
circuits. If a problem is detected in any
of those circuits, the engine trouble
warning light will come on and the dis-
play will indicate an error code.

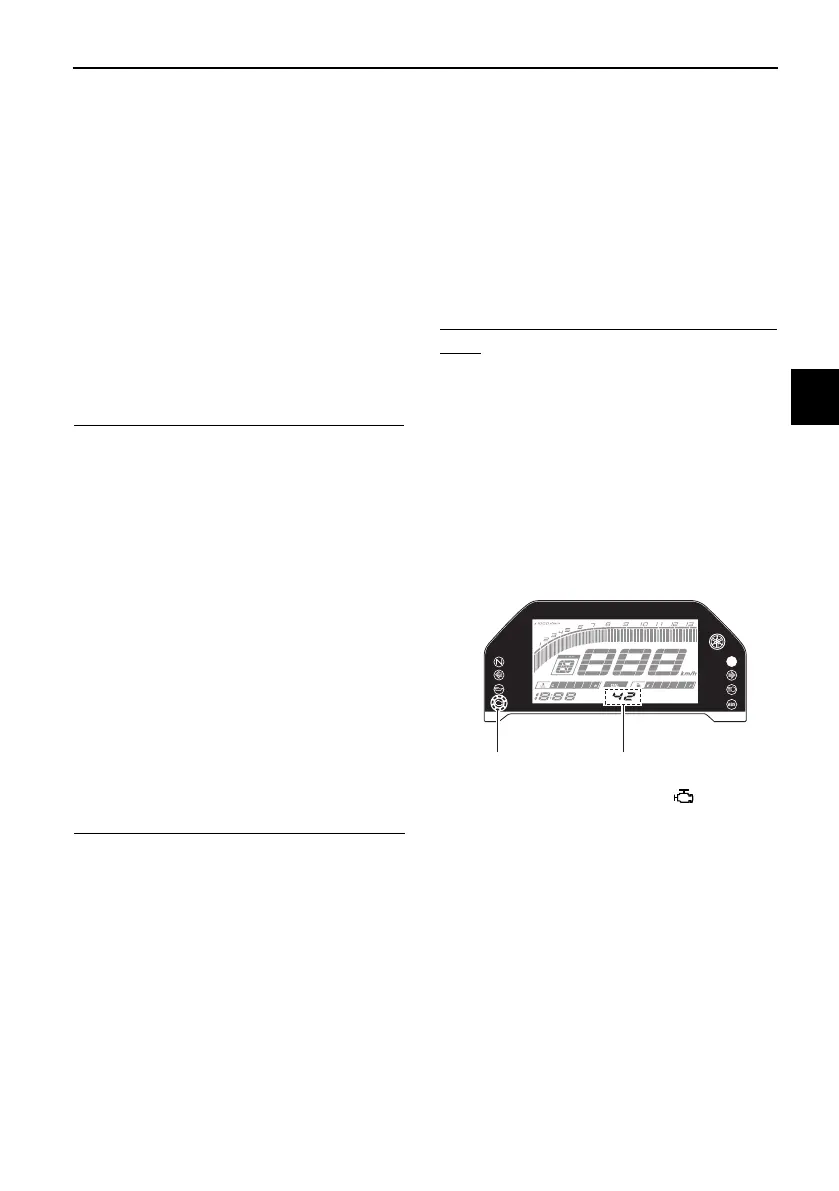

1. Engine trouble warning light “ ”
2. Error code display
MPH
12
