Instrument and control functions
4-14
4
EAU13941

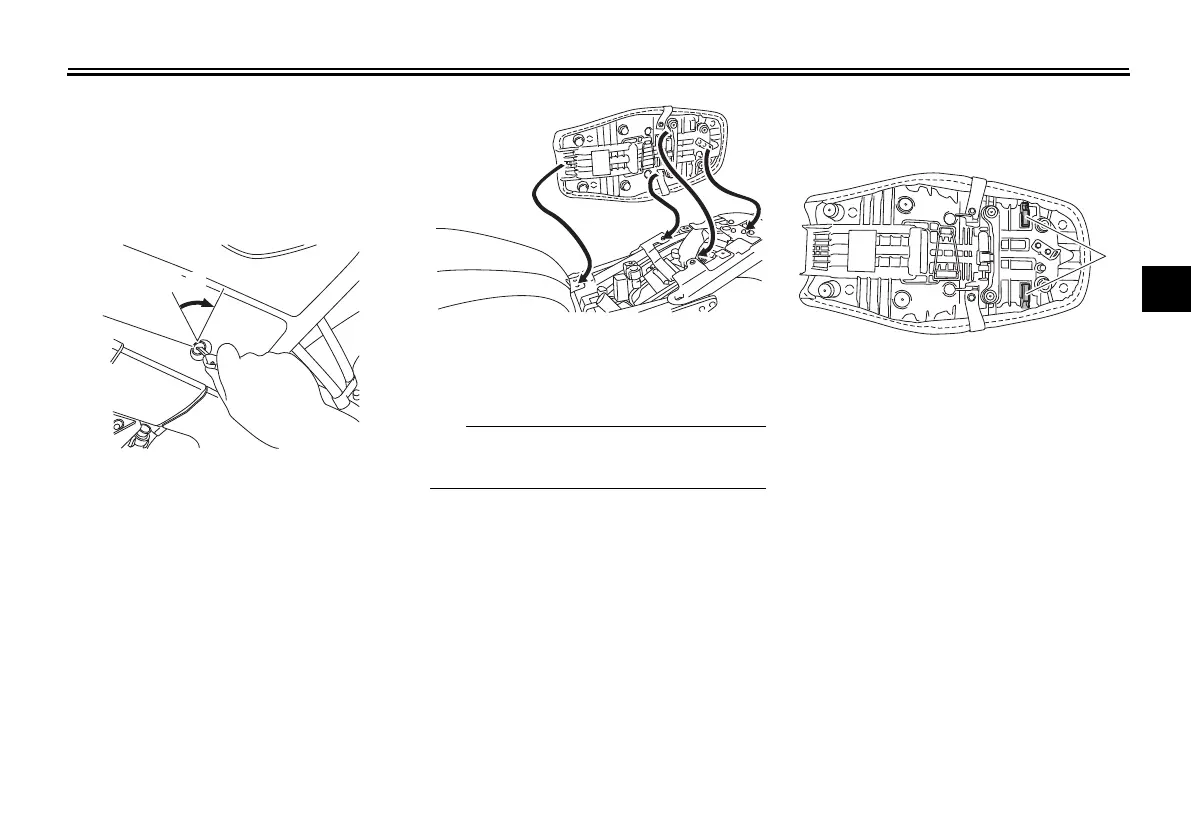

Seat
To remove the seat
1. Insert the key into the seat lock,
and then turn it clockwise.
2. While holding the key in that posi-
tion, lift the rear of the seat, and
then pull the seat off.
To install the seat
1. Insert the projections on the front
of the seat into the seat holder as
shown.
2. Push the rear of the seat down to
lock it in place.
3. Remove the key.
Make sure that the seat is properly se-
cured before riding.
EAU14326
Helmet holder
The helmet holder is located under the
rider seat.
To secure a helmet to the helmet
holder
1. Remove the rider seat.
2. Hook the helmet onto the helmet
holder, and then securely install
the seat. WARNING! Never ride
with a helmet attached to the
helmet holder, since the helmet
may hit objects, causing loss of
control and possibly an acci-
dent.
[EWA10162]
1. Seat lock
2. Turn.
1. Helmet holder
